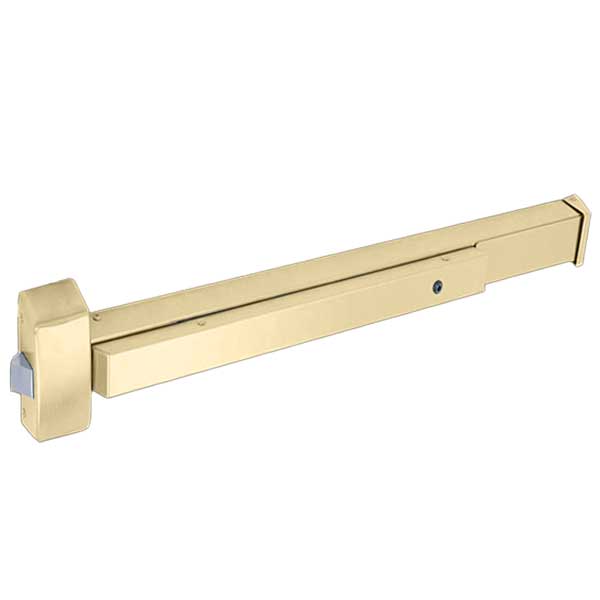

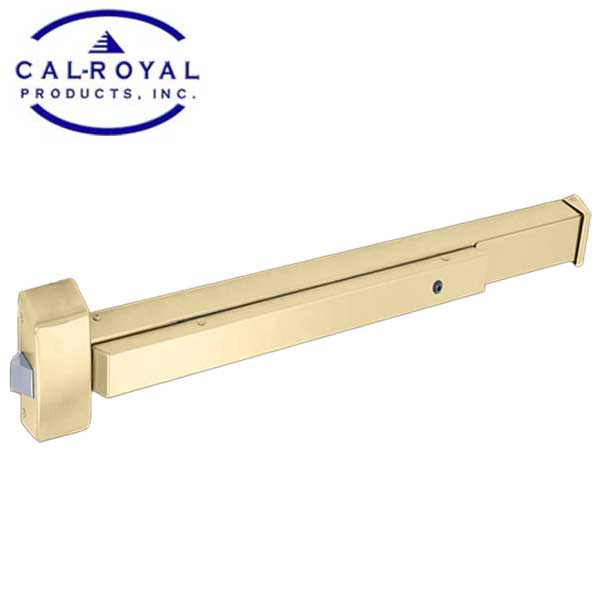

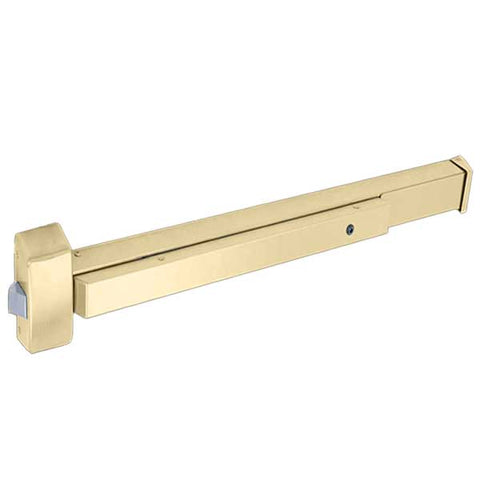

Cal-Royal - A2220EO48 - Rim Exit Device - 48" Doors - Gold Finish - Grade 1

Cal-Royal - A2220EO48 - Rim Exit Device - 48" Doors - Gold Finish - Grade 1

Available to order
SKU CRL-A2220EO48-GOLD NSID 30715
$143.42$172.10On Sale You save $28.68 (17%)
Please Note: This product has a lead time

The Cal-Royal A2220EO48 is a value exit device that is ANSI A156.3, GRADE 1 Certified. The A2220EO48 is designed to replace or upgrade existing exit devices.

Features

  • For 36"- 48"
  • ANSI A156.3, Grade 1
  • Conforms & Meets ADA Regulations
  • (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions
  • Chassis mounted unit construction

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Door Size 1 ¾” thick  4 ½” minimum stile width
Chassis Non-ferrous alloy. Covers stock hollow metal doors with 161 cutout
Mounting  Furnished standard with wood and machine screws
End Cap Steel construction
Hand Non handed
Latch Bolt Stainless steel
Spring Stainless steel
ANSI Standard A156.3, Grade 1
Rail Assembly  Heavy gauge steel
Strike  239 packed standard
Rail Assembly Powder Coated Steel
Dogging Allen-type key furnished standard
Finish Gold
Certifications -ANSI/BHMA A156.3, Grade 1
-UL Listed for Panic
-Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
