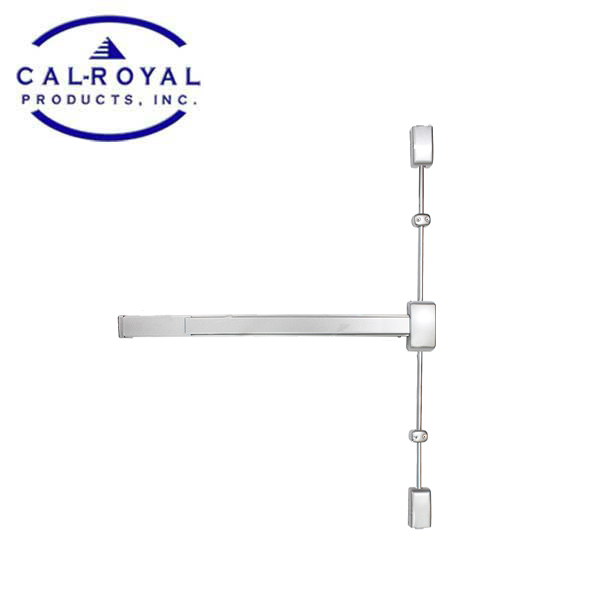

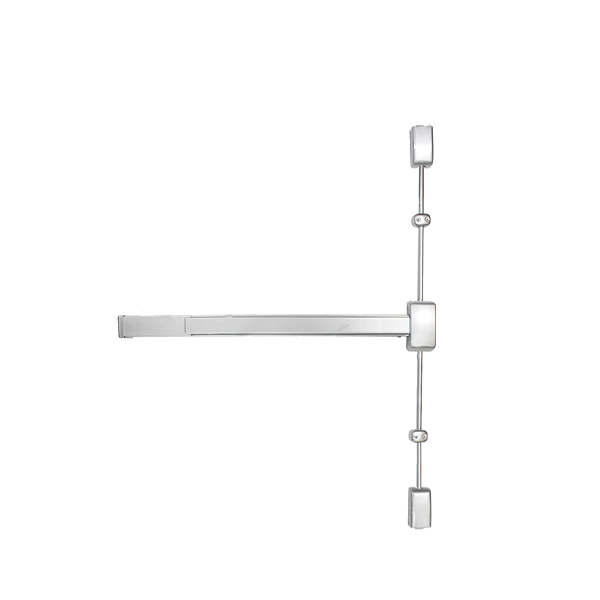

*Discontinued* Cal-Royal - A2260V3684 - Rim Exit Device - Aluminum - Optional Fire Rating - Grade 1

*Discontinued* Cal-Royal - A2260V3684 - Rim Exit Device - Aluminum - Optional Fire Rating - Grade 1

Discontinued
SKU CRL-A2260V3684-AL NSID 49202
$385.19$462.23On Sale You save $77.04 (17%)
Fire Rating


Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.


Features:
  • ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
  • Retrofits Sargent 12-2828 and 12-2838 Series
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
  • Chassis mounted unit construction.
View full details

Details


Specifications:

For Doors 1 ¾” thick standard optional 2 ¼” thick. 3 ¾” minimum stile width required for single door application. 3 ½” minimum stile width required for double door application. Lever trims available. 2 ¾” backset
Top & Bottom Chassis Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
Cover Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out
Mounting Furnished standard with wood and machine screws. Thru bolts are standard packaging on fire rated devices
End Cap Steel construction
Handing Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience
Latch Bolt & Spring Stainless steel
ANSI Standard A156.3, Grade 1
Rail Assembly Heavy gauge steel, painted
Dogging Feature Allen-type key furnished standard on non-fire labeled devices
