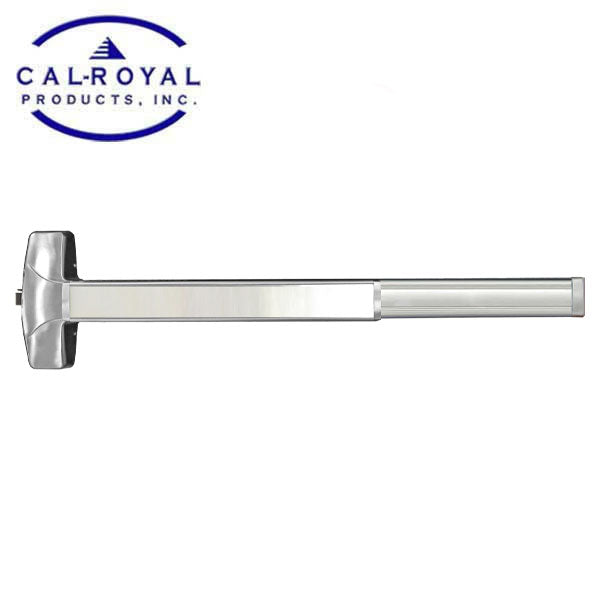

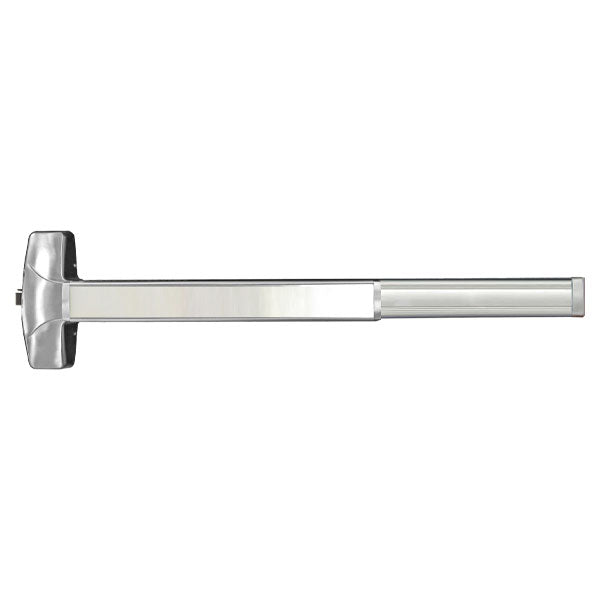

Cal-Royal - A7700EO36 - Rim Exit Device - Satin Stainless Steel - Fire Rated - Grade 1
In Stock
SKU:
CRL-AF7700EO36-32D
NSID:
49177
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $440.89
-
$529.06 - $440.89
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
The AF7700EO36-32D is a rim-type exit device that is designed for use in institutions, schools, universities, and commercial buildings where heavy-duty reliable operation is a requirement. This device is perfect for single doors with a width of 30" to 36". It comes in a US32D finish. Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in the same or opposite directions.
- Uncompromising security and safety in single and double-fire exit doors.
- Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
| Specification | Value |
|---|---|
| Series | AF7700 |
| For Doors | 1 ¾” thick standard optional 2 ¼” thick. 4 ½” minimum stile width for single or double-door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims. 2 ¾” backset |
| Function | Exit Only |
| Handing | Non-Handed |
| Backset | 2-3/4" |
| Door Thickness | 1-3/4" (standard), 2-1/4" (optional) |
| Minimum Stile Width | 4-1/2" |
| Finish | 32D (Satin Stainless Steel) |
| Trim | Exit Only |
| Opening Force | 5 lbs (ADA compliant) |
| UL Listed | Fire Exit Hardware, 3 hours |
| ANSI/BHMA Grade | Grade 1 |
| Mounting | Wood and machine screws (thru-bolts available on request) |
| Dimensions | 32" actual length, 6" max cut down door size |
