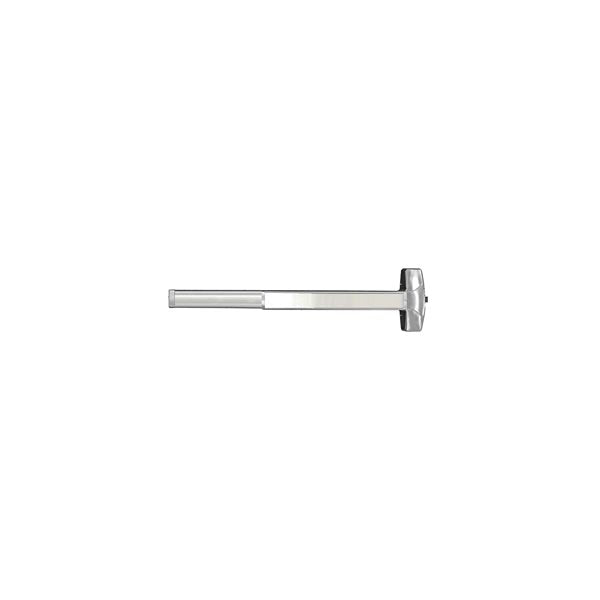

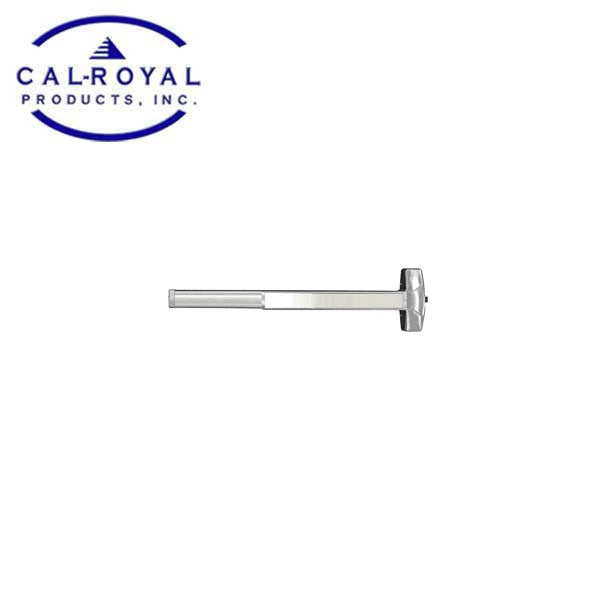

Cal-Royal - A7760V3684 - Rim Exit Device - Stainless Steel - Fire Rated - Fire Rated - Grade 1
Availability:
Available to Order
- Product SKU: CRL-A7760V3684-32D
- NSID:
-
CRL-A7760V3684-32D
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
Specifications:
| For Doors | 1 ¾” thick standard optional 2 ¼” thick. 3 ¾” minimum stile width required for single door application. 3 ½” minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available. 2 ¾” backset |
| Top Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out |
| Mounting | Furnished with wood and machine screws. Thru-bolts are included and standard packaging on fire-rated devices |
| End Cap | Brass, Bronze or Stainless Steel construction |
| Handing | Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience |
| Latch Bolt & Spring | Stainless Steel |
| Spring | Stainless Steel throughout |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge extruded aluminum body with Stainless Steel push pad |
| Strike | See strike page |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices |
| UL and ULC Listed | A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes |
Downloads:
CRL-A7760V3684-32D
Features:
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours.
(A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
| For Doors | 1 ¾” thick standard optional 2 ¼” thick. 3 ¾” minimum stile width required for single door application. 3 ½” minimum stile width required for double door application. Lever, thumbpiece and escutcheon trims available. 2 ¾” backset |
| Top Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out |
| Mounting | Furnished with wood and machine screws. Thru-bolts are included and standard packaging on fire-rated devices |
| End Cap | Brass, Bronze or Stainless Steel construction |
| Handing | Handed. Easily field reversible. Specify at time of order LHR, RHR for convenience |
| Latch Bolt & Spring | Stainless Steel |
| Spring | Stainless Steel throughout |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge extruded aluminum body with Stainless Steel push pad |
| Strike | See strike page |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices |
| UL and ULC Listed | A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes |
