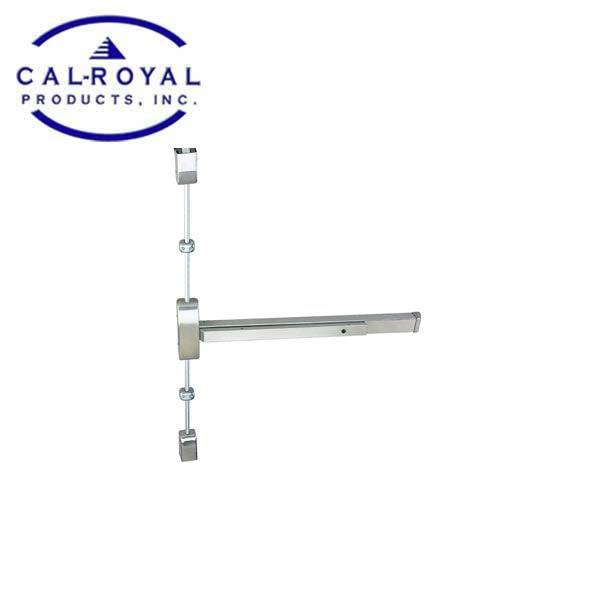

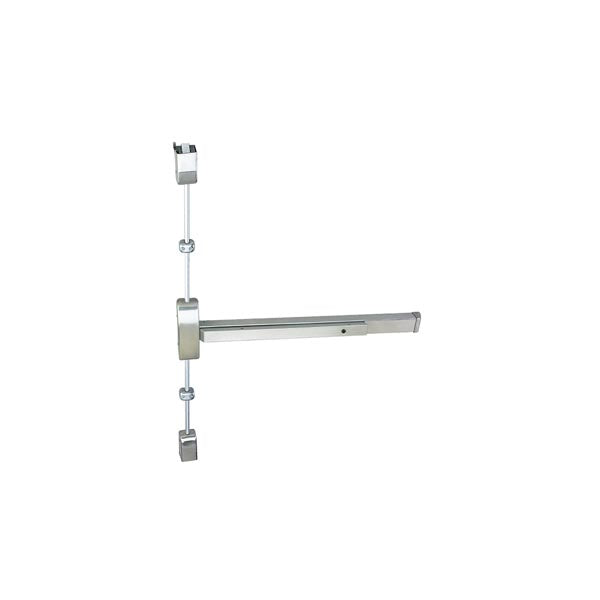

Cal-Royal - A9860V3684 - Surface Vertical Rod Exit Device - Stainless Steel - Optional Fire Rating - Grade 1
Availability:
Available to Order
- Product SKU: CRL-A9860V3684-32D
- NSID:
-
CRL-A9860V3684-32D
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Sargent 8800 Series using 9800 Escutcheon trim
- Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours. (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
- Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch on rose trims. Escutcheon trims are rigid and cover 161 cut out.
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
Specifications:
| For Doors | 1 ¾" thick standard, optional 2 ¼” thick. 3 ¾" minimum stile width for single door application. 3 ½" minimum stile width required for double door application. Lever, thumbpiece, and escutcheon trims available. 2-3/4" backset. |
| Top & Bottom Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out. |
| Mounting | Furnished with wood and machine screws. Thru bolts are included and standard packaging on fire-rated devices. |
| End Cap | Brass, Bronze, or Stainless Steel construction. |
| Handing | Handed, Easily field reversible. Specify LHR or RHR for convenience. |
| Latch Bolt, Spring | Stainless Steel |
| ANSI Standard | A156.3, Grade 1. |
| Rail Assembly | Heavy gauge brass, bronze, or stainless steel |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available. |
| UL and ULC Listed | A9860V Series for panic. AF9860V Series for fire exit hardware for all types or 8' x 10' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes. |
