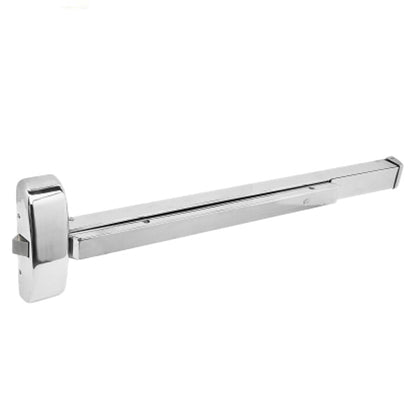

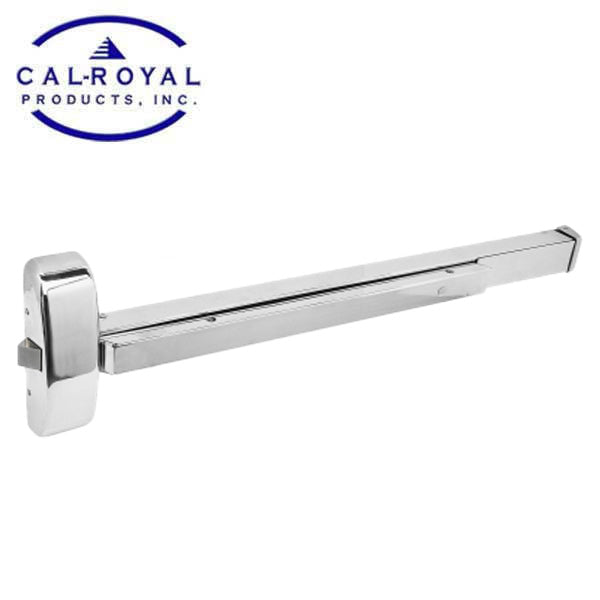

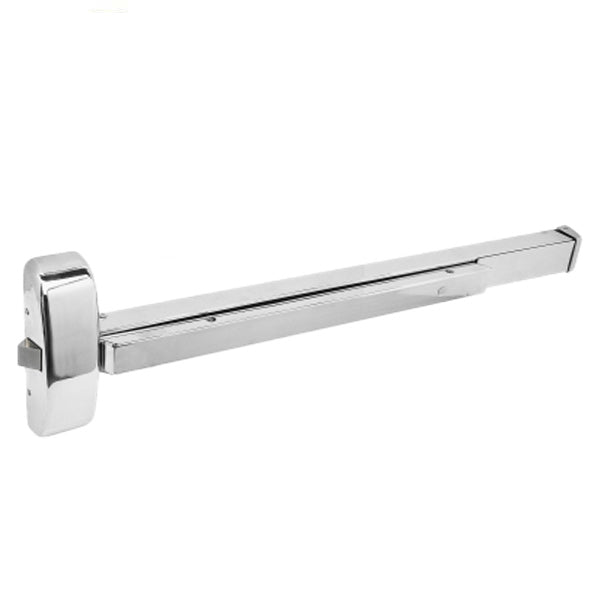

*Discontinued* Cal-Royal - AF9800EO36 - Rim Exit Device - Stainless Steel - Fire Rating - Grade 1
Out of Stock
SKU:
CRL-AF9800EO36-32D
NSID:
49194
- $604.09
-
$724.91 - $604.09
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; and to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- ANSI A156.3, GRADE 1 heavy-duty exit device in surface vertical rod and rim designs.
- Retrofits Sargent 8800 Series using 9800 Escutcheon trim
- Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in the direction of the door swing.
- Trims are thru bolted for additional security.
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours. (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in the same or opposite directions.
- Uncompromising security and safety in single and double-fire exit doors.
- Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
- $604.09
-
$724.91 - $604.09
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications:
| For Doors | 1 ¾" thick standard, optional 2 ¼” thick. 4 ½" minimum stile width for single or double door application using standard 239 strike and pull or lever, thumb piece, and escutcheon trim. 2-3/4" backset. |
| Chassis | Non-ferrous alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out. |
| Mounting | Furnished with wood and machine screws. Available with thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices. |
| End Cap | Brass, Bronze, or Stainless Steel construction. |
| Handing | Non-handed, center hub. |
| Latch Bolt | Stainless Steel 3/4" throw. |
| Spring | Stainless Steel throughout. |
| ANSI Standard | A156.3, Grade 1. |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging is available. |
| UL and ULC Listed | A9800 Series for panic. AF9800 Series for fire exit hardware for all types or 4' x 8' single doors and 8' x 8' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes. Fire Rated |
