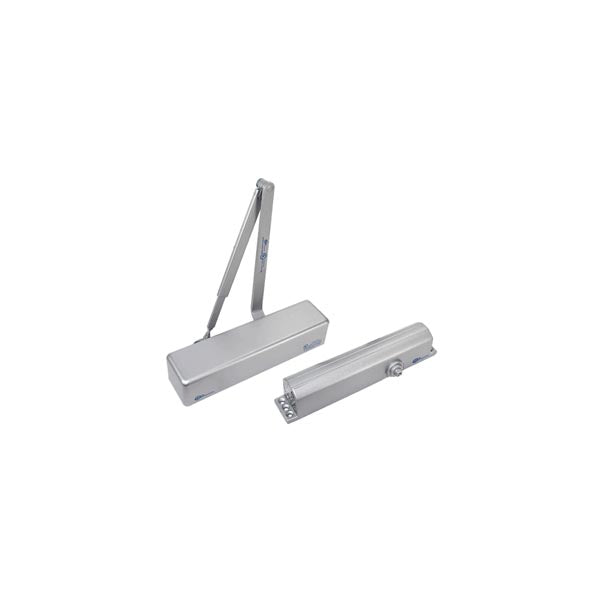

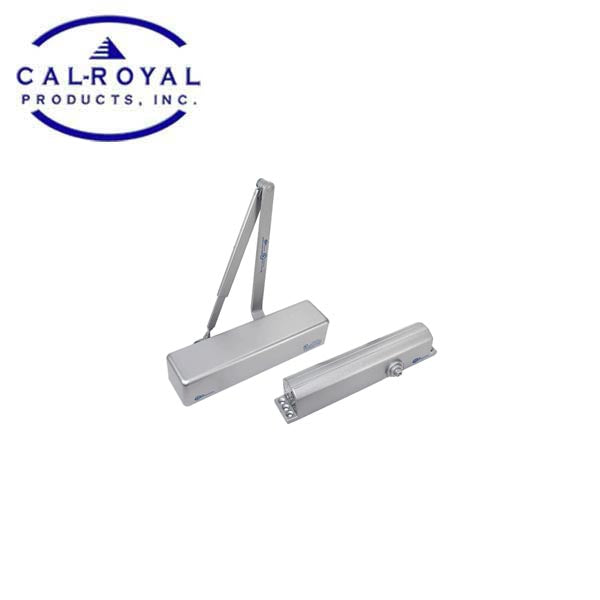

Cal-Royal - CR441DA - Door Closer - Aluminum - Delayed Action
$242.38
$290.86
Availability:
Available to Order
- Product SKU: CRL-CR441DA-ALM
- NSID: 49138
-
CRL-CR441DA-ALM
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- Universal Application. Non-Handed for Standard, Top Jamb, or Parallel Arm Installation
- Non-Sized, 1 thru 6 FACTORY PRESET SIZE 3, meets ADA
- Door Weights: 30-260 lbs
- Hydraulic Door Closer with Standard Adjustable Back-Check Function
- Adjustable Closing and Latching Speed by Two Separate Regulating Valves
- Adjustable Delayed Action (DA). Preset at the Factory for Approximately 20
- Seconds, Between 70° and 0° Delay Time Easily Adjusted up to 1 Minute. CR441 DA
- Standard Full Plastic Cover (CR441COV)
- Self-Tapping Screws and Closer Gauge for Easy Adjustment is Standard Feature
- Available in Architectural Finishes (refer to price list for stock finishes)
-
- Universal Application. Non-Handed for Standard, Top Jamb, or Parallel Arm Installation
$242.38
Specifications:
| Application | Universal Standard, Top Jamb or Parallel Arm Installation |
| Doors Weight | 30-260 lbs |
| Non-Sized | Adjustable Size 1 thru 6 |
| Material | Standard Full Plastic Cover |
| Mounting | Self-Tapping Screws and Closer Gauge for Easy Adjustment |
| Butt Hinges | 5” (127mm) |
| Auxiliary Stop | Recommended at hold-open point or where a door cannot swing beyond 120° |
| Hand | Non Handed |
| Reveal | ¾” (19mm) |
| Top Rail | 3 ¾” (19mm) |
| Clearance | 2 ⅜” (60mm) |
| Delayed Action | Delays closing from 120° to 70°. Delay time adjustable up to approximately 1 minute |
| Fire Rated | 3 hours |
| Finish | Aluminum |
| Dimensions | 11" x 5" x 2 3/4", 2" Projection from door |
| Certifications: | ANSI A156.4 Grade 1, UL Listed 10C, ADA, UBC7-2-1997, BHMA |
| Manufacturer's Warranty | Lifetime |
