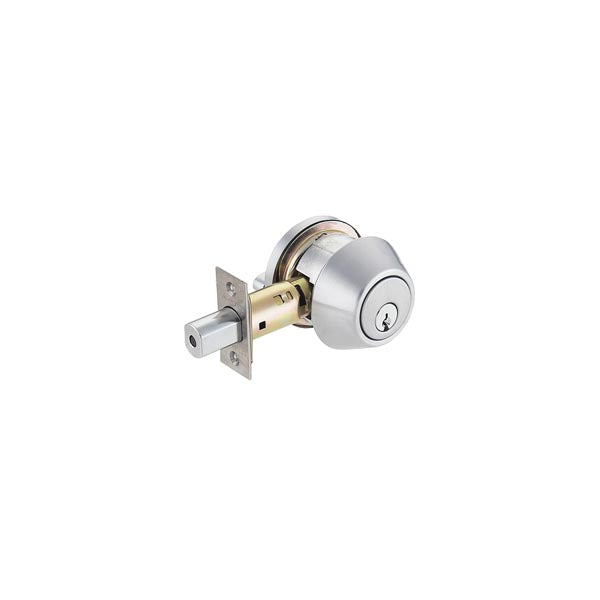

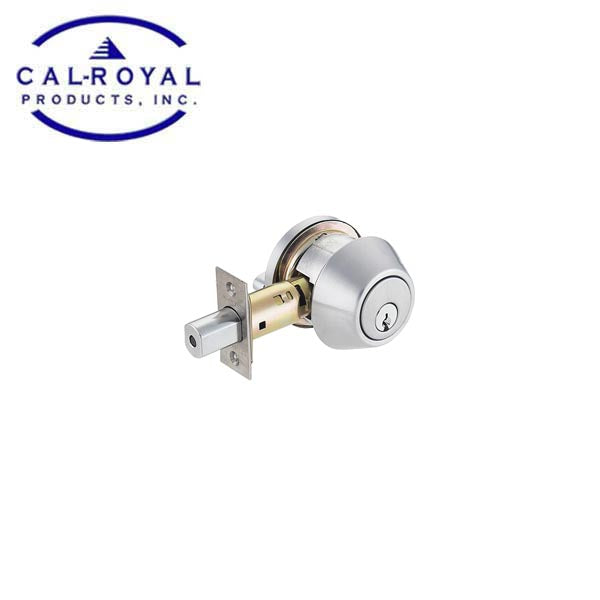

Cal-Royal - CRB800 - Single Cylinder Deadbolt - Satin Chrome - Optional Function - Grade 1
Availability:
Available to Order
- Product SKU: CRL-CRB800-26D
- NSID:
-
CRL-CRB800-26D
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- BHMA Certified Lifetime Warranty, GRADE 1
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- ADA (American Disability Act) Ergonomic Thumbturn
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Free turning, wrench-resistant tapered cylinder ring
- Sturdy, all steel latch case and mechanism
- Meets the Buy American Act
- BHMA Certified Lifetime Warranty, GRADE 1
Specifications:
| Trim | Wrought Brass or Stainless Steel. |
| Door Ranges | Adjustable 1 ⅜” (40mm) to 2” (51mm) door thickness. |
| Backset | UL Listed 3 Hour Fire Rating 2 ¾” latchbolt. 2 ⅜” optional. |
| Deadbolt Faceplate | Standard 2 ¼” X 1 ⅛” for 2 ¾” backset. Optional 2 ¼” X 1” for 2 ⅜” backset. |
| Strike | 1 ⅛” X 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames. |
| Bore Diameter | 1” for latch, 2 ⅛” for lock housing. |
Downloads:
CRL-CRB800-26D
Features:
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- BHMA Certified Lifetime Warranty, GRADE 1
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- ADA (American Disability Act) Ergonomic Thumbturn
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Free turning, wrench-resistant tapered cylinder ring
- Sturdy, all steel latch case and mechanism
- Meets the Buy American Act
Specifications:
| Trim | Wrought Brass or Stainless Steel. |
| Door Ranges | Adjustable 1 ⅜” (40mm) to 2” (51mm) door thickness. |
| Backset | UL Listed 3 Hour Fire Rating 2 ¾” latchbolt. 2 ⅜” optional. |
| Deadbolt Faceplate | Standard 2 ¼” X 1 ⅛” for 2 ¾” backset. Optional 2 ¼” X 1” for 2 ⅜” backset. |
| Strike | 1 ⅛” X 2 ¾” square corner. Extra security 1” throw bolt with ¼” free spinning anti-cut through pin. 2 pcs x 3” screws with wood frame reinforcer greatly strengthens door frames. |
| Bore Diameter | 1” for latch, 2 ⅛” for lock housing. |
Downloads:
