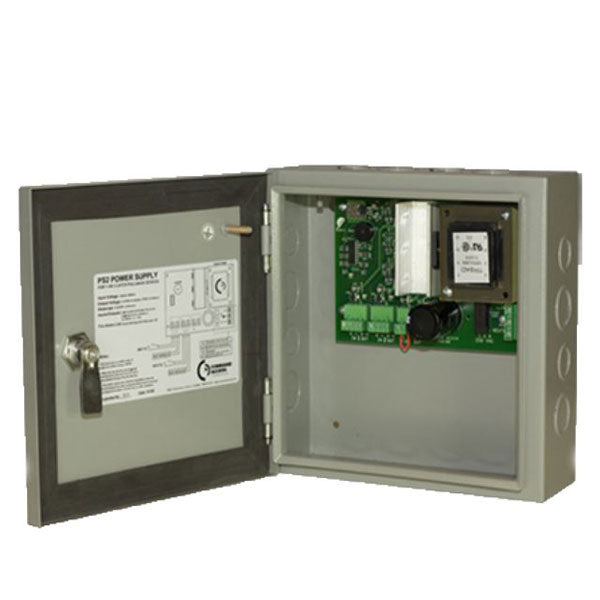

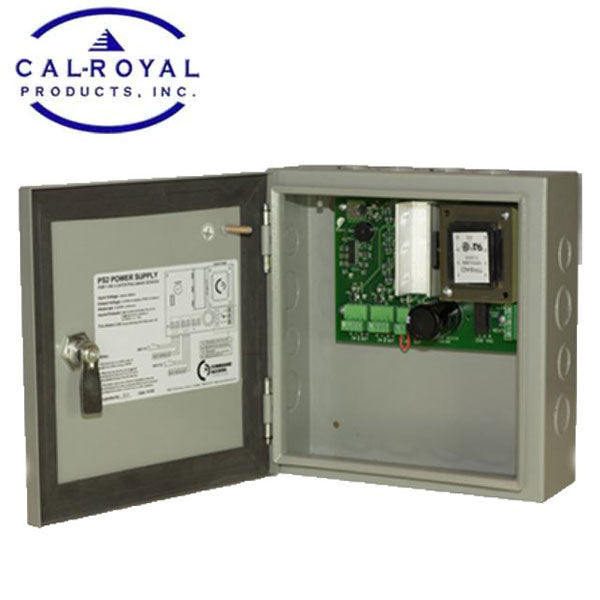

*Discontinued* Cal-Royal - CRPS2 - Power Supply For Electrified Exit Devices - 2 Amp - 24VDC - Battery Backup
Out of Stock
SKU:
CRL-CRPS2
NSID:
31742
- $280.87
-
- $280.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The CRPS2 Series power supplies are high quality, cost effective solution for powering two electric latch-retracting exit devices. These power supplies provide the necessary surge current that most latch-retracting exit devices require. The CRPS2 Series offers
features found on power supplies costing much more; and the solid-state design and careful attention to detail make the CRPS2 Series ideal choice for the discerning user who requires a power supply that can offer years of trouble-free operation.
Features:
- Delivers the necessary in-rush current to power two latch pullback exit devices.
- Two independent inputs / outputs
- Solid-state design eliminates problems associated with mechanical relays
- Thermal overload sensing reduces risk of failure due to overheating
- Fire alarm disconnect link
- Intelligent short circuit detection detects shorts much faster than fuses and isolates the short to the individual output
- Removable Euro-style terminal blocks allow for easy installation
- No hassle 3-year warranty
- $280.87
-
- $280.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Input Voltage: | 120V AC, 60 Hz |
| Output Voltage: | 24V DC regulated @ 2A |
| Temperature Range: | 0° to 120°F |
| Power Tap: | Continuous 24V DC @ .5A |
| 2 Solid-State input / output: | Input triggered by dry contact |
| LEDs: | RED = Power indicator GREEN = Output indicator ORANGE = Battery Output Indicator |
| Dimensions: | 11” x 11” x 4” |
| Listings: | UL Listed |
| Warranty: | 3-Year Manufacturer Warranty |
