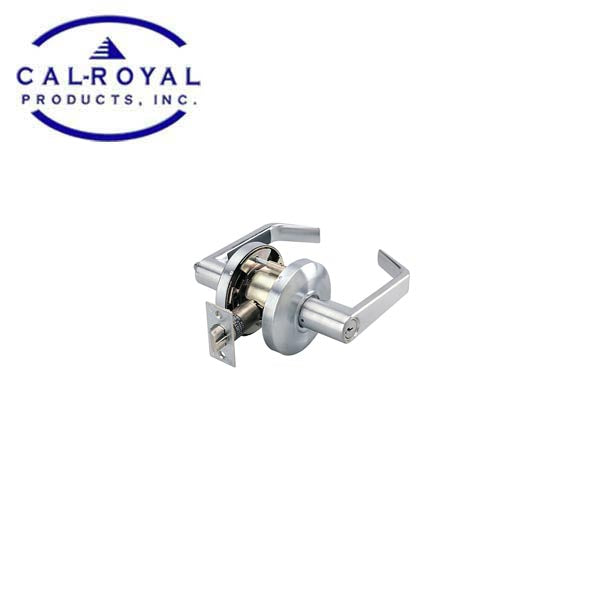

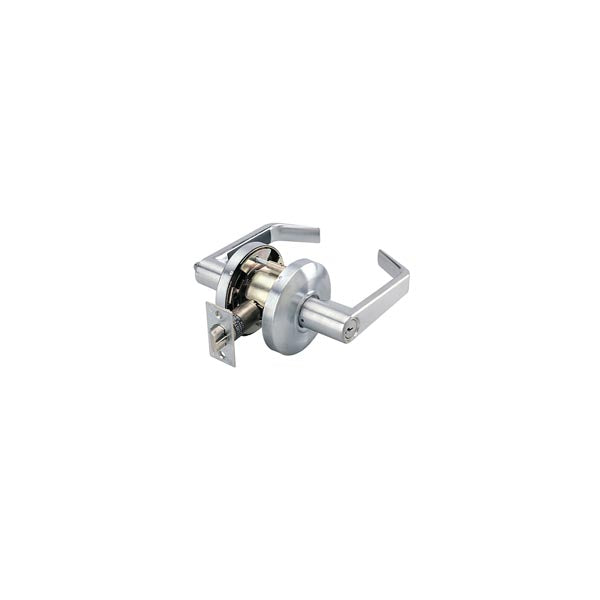

*Discontinued* Cal-Royal - CSL00 - Cylindrical Leverset - Satin Chrome - Optional Function - Fire Rated - Grade 2

*Discontinued* Cal-Royal - CSL00 - Cylindrical Leverset - Satin Chrome - Optional Function - Fire Rated - Grade 2

Discontinued
SKU CRL-CSL00-26D NSID 49157
$118.72
Function

Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.


Features:

  • BHMA Certified Lifetime Warranty, GRADE 2
  • Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
  • UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
  • Solid brass 6 pin β€œC” keyway cylinder, optional other keyways
  • Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
  • Hurricane Approved Hardware. Florida Building Code FL13922
  • Meets the Buy American Act
View full details

Details


Specifications:

Applications For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
Door Ranges 1 β…œβ€ to 1 ¾” thickness doors.
Backset 2 ¾” Standard, 2 β…œβ€, 3 ¾” and 5” optional.
Latch Bolt ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
Latch Faceplate 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset.
ANSI Standards Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
Exposed Trim Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
Strikes ASA strike standard
