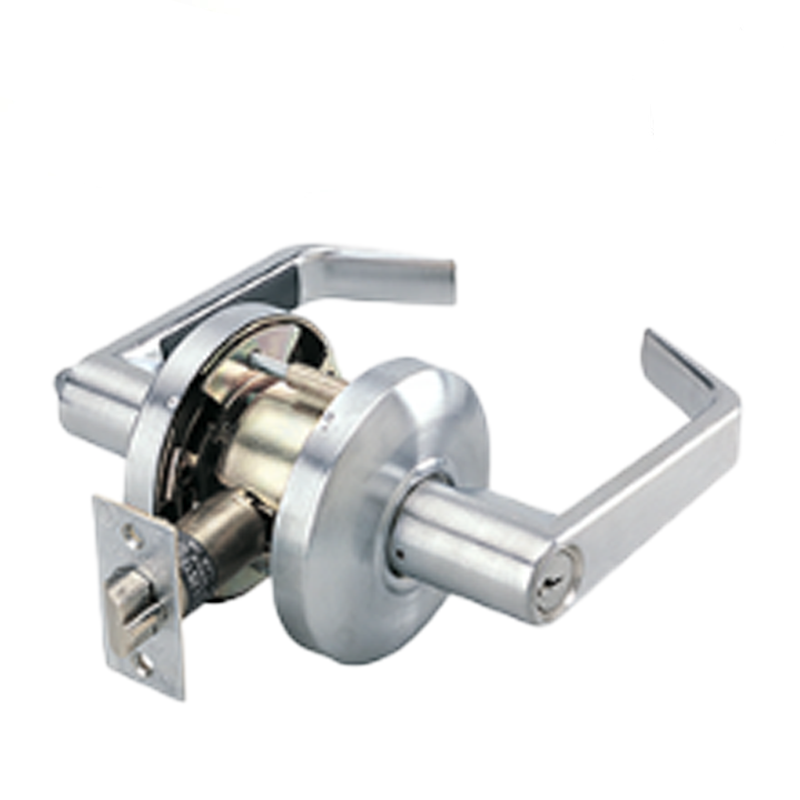

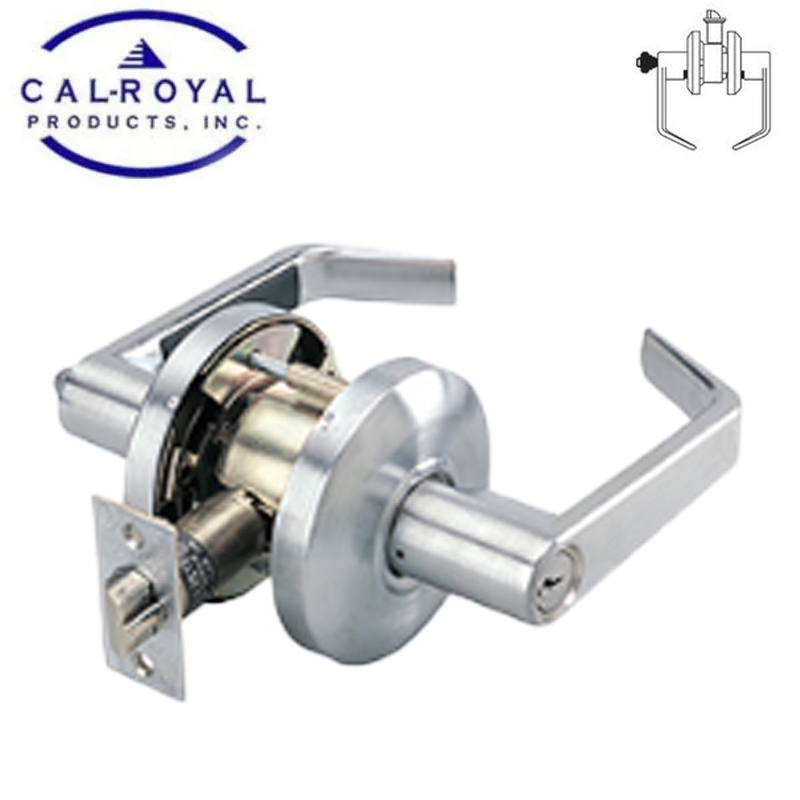

Cal-Royal - CSL05 - Cylindrical Leverset - Satin Chrome - Storeroom - Schlage C Keyway - Fire Rated - ASA Strike - Grade 2 - Satin Chrome US26D
In Stock
SKU:
CRL-CSL05-26D-2-3-8
NSID:
79011
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $84.14
-
$100.96 - $84.14
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- BHMA Certified Lifetime Warranty, GRADE 2
- Conforms with ANSI A 156.2 Series 4000, Heavy Duty, Barrier Free
- UL listed 3-hour rating, conforms to standards UL10C and UBC7-2-1997
- Solid brass 6-pin Schlage “C” keyway
- Individual springs on each side to prevent lever sag, maintain reliability, and reduce maintenance
- Hurricane Approved Hardware. Florida Building Code FL13922
- Meets the Buy American Act
Specifications:
| Applications | For offices, schools, hospitals, apartments, hotel/motel, residential, commercial, and public buildings. |
| Door Ranges | 1 ⅜” to 1 ¾” thickness doors. |
| Backset | 2 ¾” |
| Latch Bolt | ½” Throw solid brass, reversible for RH or LH applications. UL Listed. |
| Latch Faceplate | 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset. |
| ANSI Standards | Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles. |
| Cylinder Material | Brass |
| Strikes | ASA strike standard |
| Lever Style Family | Straight Return Lever |
Downloads:
