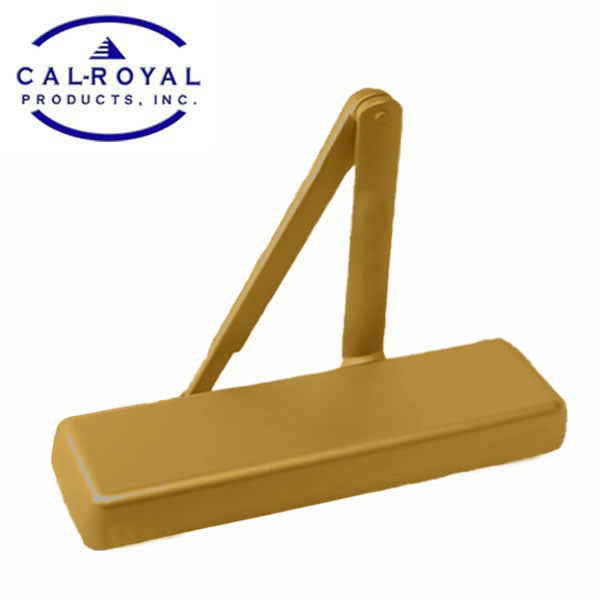

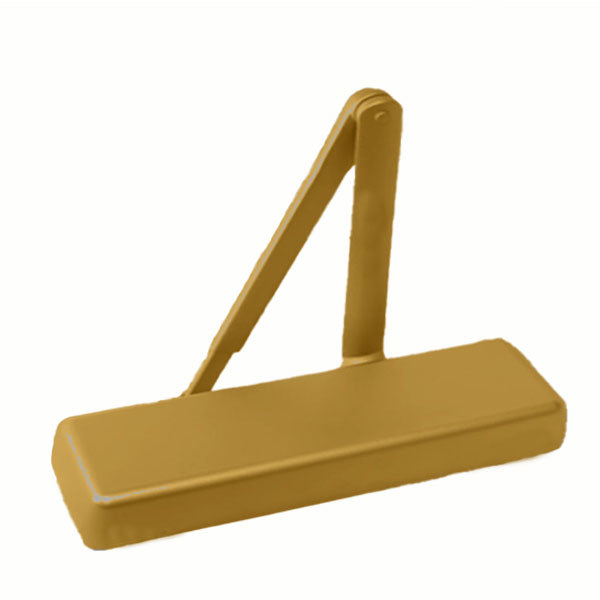

Cal-Royal - Hydraulic Door Closer - Back Check Function - PA Bracket/Regular/Top Jamb - Non-Sized - Plastic Cover - Optional Finish - Fired Rated - Grade 1
Availability:
Available to Order
- Product SKU: CRL-CR441-GOLD
- NSID:
-
CRL-CR441-GOLD
Door Closer for use in Office Buildings, Shopping Center and Other Commercial Buildings Meeting the highest industry standards, Grade 1.
Features:
- Cal-Royal’s Finest Hydraulic Door Closer Series Meeting the Highest Industry Standards GRADE 1
- Heavy-Duty Double Lever Arm With Extra Smooth Action Full Feature Multi-Size Commercial Door Closer
- Standard Back-Check Function
- Standard Packaging includes Full Plastic Cover with Sex Bolts and Screws
- Hydraulic Door Closer with Standard Adjustable Back-Check Function
- Adjustable Closing and Latching Speed by Two Separate Regulating Valves
Specifications:
| Application | Universal Standard, Top Jamb or Parallel Arm Installation |
| Doors Weight | 30-260 lbs |
| Non-Sized | Adjustable Size 1 thru 6 |
| Material | Standard Full Plastic Cover |
| Mounting | Self-Tapping Screws and Closer Gauge for Easy Adjustment |
| Butt Hinges | 5” (127mm) |
| Auxiliary Stop | Recommended at hold-open point or where a door cannot swing beyond 120° |
| Hand | Non Handed |
| Reveal | ¾” (19mm) |
| Top Rail | 3 ¾” (19mm) |
| Clearance | 2 ⅜” (60mm) |
| Fire Rated | 3 hours |
| Finish | Gold, Aluminum, Duranodic |
| Dimensions | 11" x 5" x 2 3/4", 2" Projection from door |
| Certifications: | ANSI A156.4 Grade 1, UL Listed 10C, ADA, UBC7-2-1997, BHMA |
| Manufacturer's Warranty | Lifetime |
