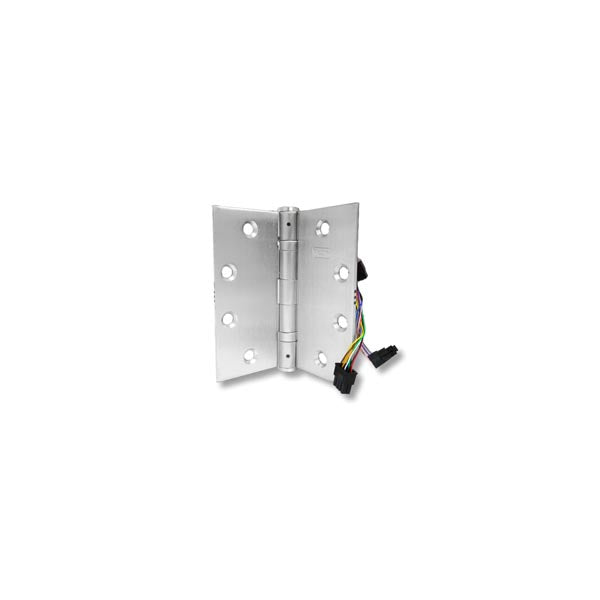

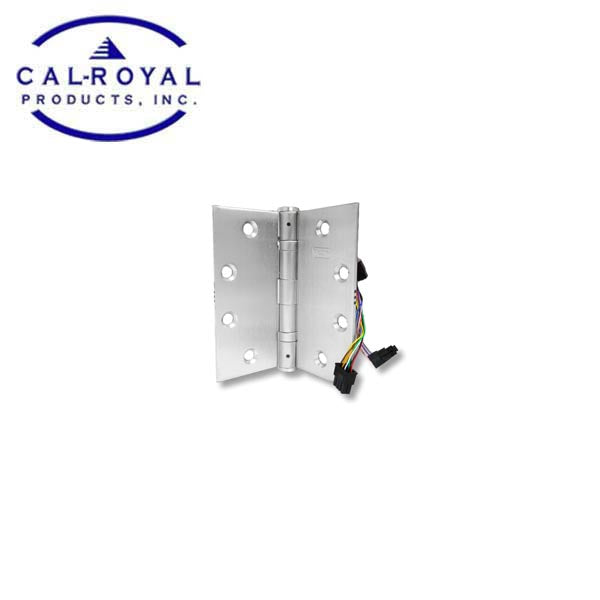

*Discontinued* Cal-Royal - ELE4QCBB31 4 1/2" x 4 1/2" - Electrfied Ball Bearing - Satin Chrome - Removable Pin

Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.

• The Electrified Hinge makes door wiring easy, safe and reliable

• Power can now be transferred from the frame into the door either concealed or exposed

• We are now able to monitor the position of the door, transfer power and incorporate both functions into a single hinge

• We now have the ability to electrify other hardware items such as Exit Devices, Electric
• Strikes, and Electrified Locks

• Full Mortise Hinges are highly recommended for modification purposes

• Monitoring can be supplied on a half surface hinge if the need arises
  It is recommended that the center hinge location be used with all electrically modified hinges

• The maximum voltage allowed in electrified hinges is 48 volts. The current (amperes) should also be taken into consideration
• 4 Wires - 26 gauge - 1A @ 24V (per pair)
