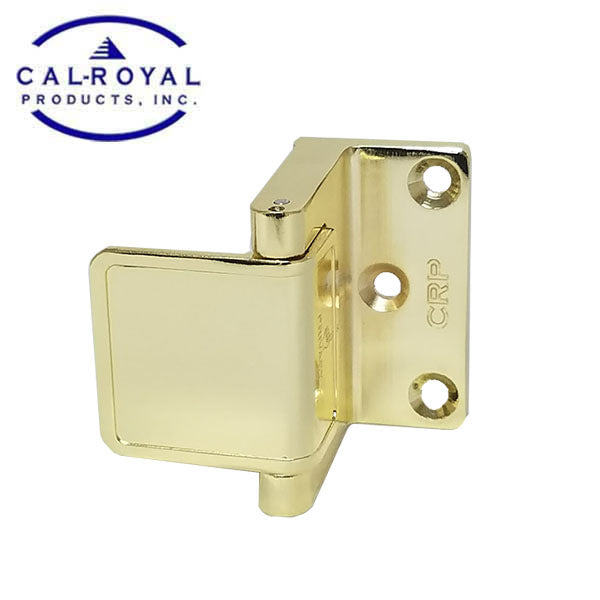

Cal-Royal - HPDL258 - Privacy Door Latch - Satin brass - Fire Rated

In Stock
SKU: CRL-HPDL258-US4
NSID: 52528

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$23.56
$24.12
$23.56

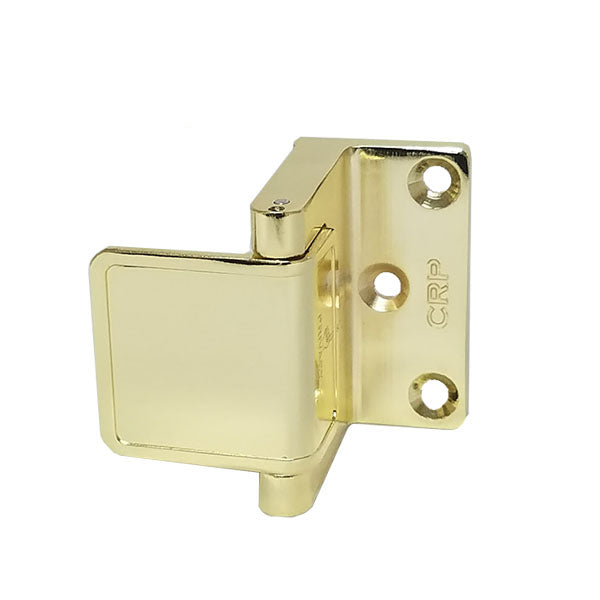

The Cal-Royal Hotel Privacy Door Lock (HPDL) is recommended for use in environments with corridor to room openings such as hotels, dormitories, apartments and even private residences. The latch would allow the door to be partially opened for identification while providing privacy and security for the resident. The HPDL in the open position, cannot be used to hold the door open. The silicone pads (6) provides additional protection for the door and act as a silencer.

The HPDL is UL Classified as a fire door accessory. It also meets the requirements of NFPA that requires auxillary hardware to not interfere or prohibit the proper operation of fire doors, and that doors are not blocked or wedged in the open position. An optional Rivet Nut can be applied for a more secure and rigid installation.

Features:

  • UL- Listed
  • Simple to operate
  • Easy Installation
  • Optional Rivnut Installation
  • Meets NFPA 80 5.2.13.3
  • Meets NFPA 80 5.2.4.2(9)
  • ADA Compliant
Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications:

    Weight .65 lbs
    Material: Zinc Die Cast
    Applications: Hotels, Dormitoor, Apartments, Private Residences
    Dimensions: 2-1/8" Height x 1-1/2" Width
    Opening Angle 87 Degrees
    Fasteners
    #12-24 x 1/2” MS, 2” w/ no.12 head WS; (3) Rivet Nut #12-24 x 3/4” MS
