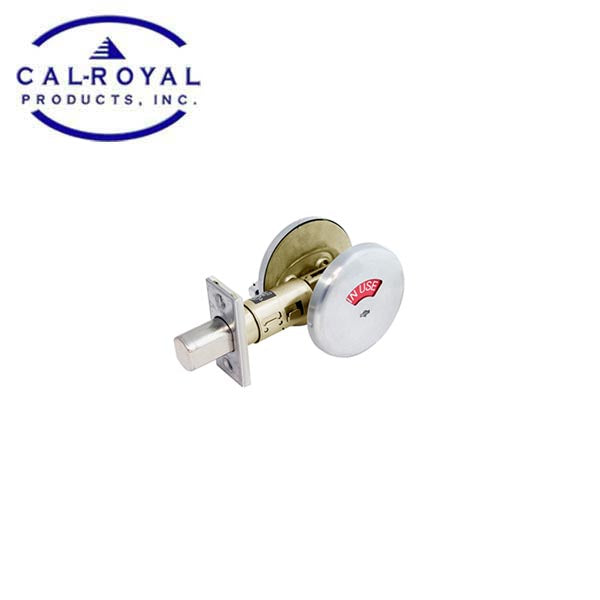

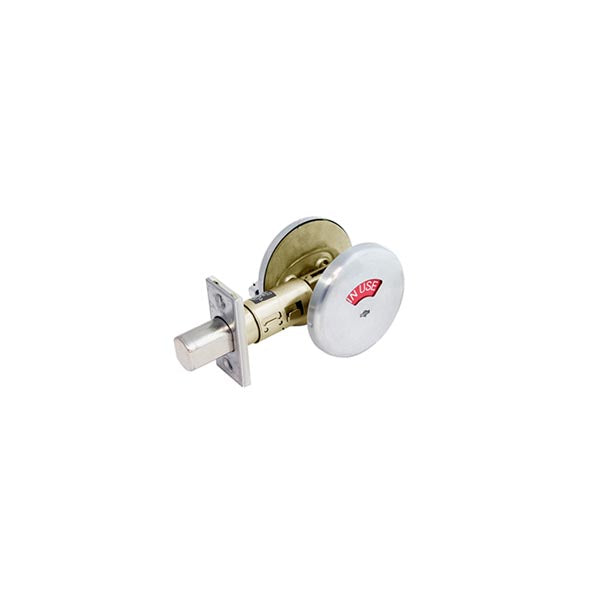

Cal-Royal - IND90-G2 - Indicator Deadbolt - Satin Chrome - Grade 2
Available to Order
SKU:
CRL-IND90-G2-26D
NSID:
49168
- $49.14
-
$58.97 - $49.14
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- Conforms with ANSI A156.36, GRADE 2 Standards
- ADA (American Disability Act Compliant) Ergonomic Thumbturn
- Red (IN-USE) and Green (VACANT) Indicator
Specifications:
| Trim | Wrought Brass or Stainless Steel |
| Door Ranges | Adjustable 1 ⅜” to 1 ¾” door thickness |
| Backset | Adjustable UL Listed 3-Hour Fire Rated 2 ⅜” or 2 ¾” |
| Deadbolt Faceplate | Standard 2 ¼” x 1 packed with plastic filler to convert 1" faceplate to 1 ⅛” wide door preparations |
| Bore Diameter | 1" for latch, 1 ½” or 2 ⅛” for lock housing. |
| Strike | 1 ⅛” x 2 ¾” Square Corner |
