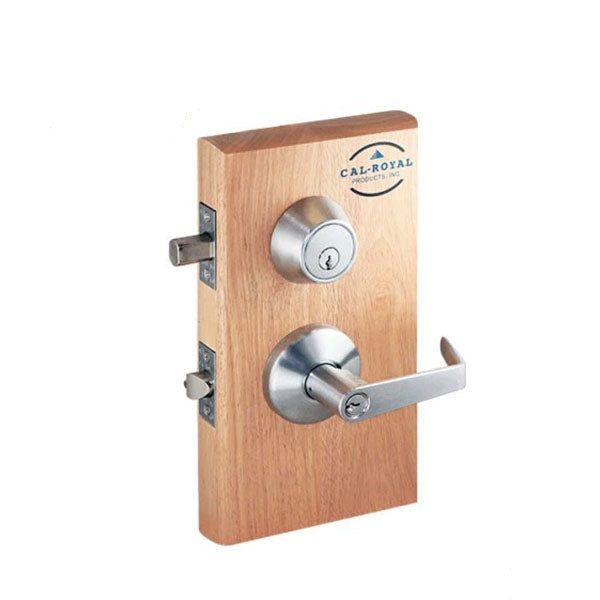

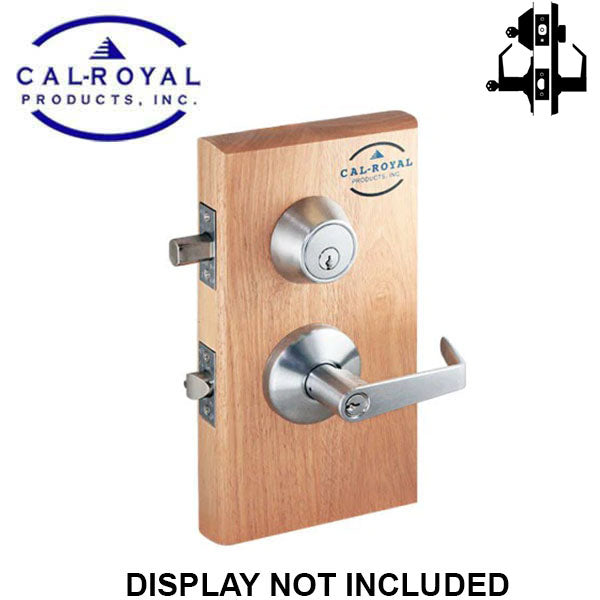

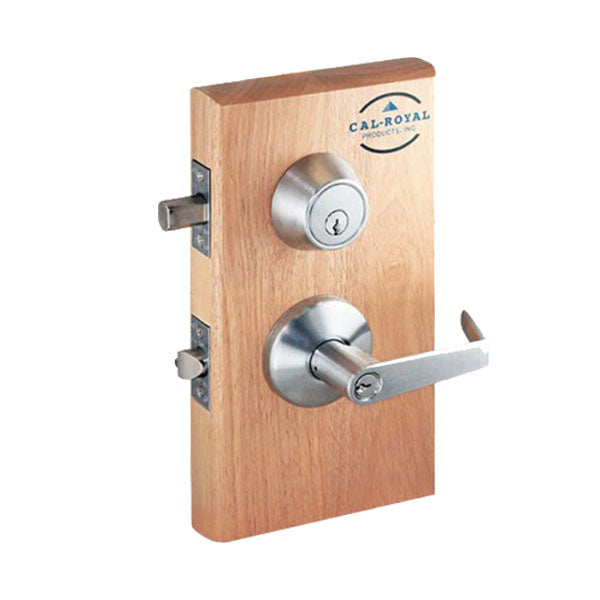

Cal-Royal - JHILDOV00 - Interconnected Leverset - Double Locking - Dover Lever - Entrance - Reversible - Satin Chrome - Grade 2

Cal-Royal - JHILDOV00 - Interconnected Leverset - Double Locking - Dover Lever - Entrance - Reversible - Satin Chrome - Grade 2

Available to order
SKU CRL-JHILDOV00-US26D NSID 66498
$155.99$187.19On Sale You save $31.20 (17%)
Please Note: This product has a lead time

Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Dead latch retracted by key in outer when locked by pushing turn button in inner lever. Outer lever may be fixed in locked position by rotating turn button. Turning inside lever retracts deadbolt and latch bolt simultaneously for immediate exit.

Features:

  • Dover Lever
  • Entrance Function
  • Conforms with ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
  • Lifetime Warranty
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6-Pin “C” keyway cylinder
  • Unique individual spring on the exterior and interior side of lever to prevent lever sag
  • Meets the Buy American Act
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Handing Reversible RH / LH
Door Thickness 1-3/8” and 1-3/4” doors.
Backset  Adjustable 2 3/8" - 2 3/4"
Lock Function Entrance (Double Locking)
Strike Standard “T” strike furnished with lockset. 2 ¾” x 1 ⅛” square strike with deadbolt.
Escutcheon
 9-3/16” x 3-3/16” brass plated. Packed with interior escutcheon.
Deadbolt 1” Throw. UL-Listed Adjustable 2 ¾” or 2 ⅜” Brass with hardened steel pin. Standard 2 ¼” x 1” face plate, packed with plastic filler for 1 ⅛” door preparations.
Latchbolt ½” Throw. UL-Listed for 3 hour doors.
Latch Faceplate Standard 2 ¼” x 1” face plate, packed with plastic filler for 1 ⅛” door preparations.
Keyway Solid brass 6-Pin “C” keyway cylinder
Finish Satin Chrome
Certifications ANSI A 156.12 Series 5000, Interconnected, Barrier Free, GRADE 2
