Cal-Royal

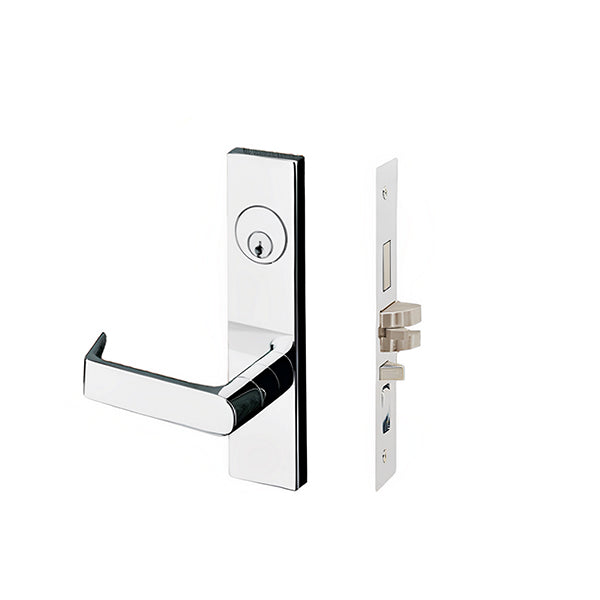

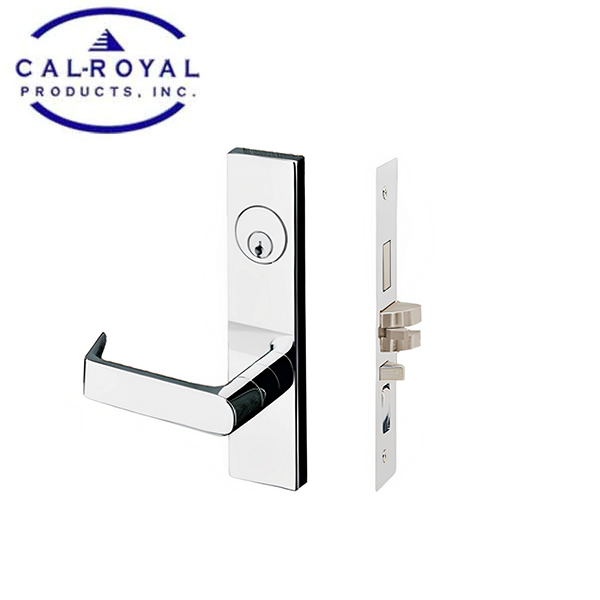

Cal-Royal - NM8080 - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1

Cal-Royal - NM8080 - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1

Available to order
SKU CRL-NM8080-SE-RH-US26 NSID 67501
$247.50$297.00On Sale You save $49.50 (17%)
Please Note: This product has a lead time

Features:

  • For Doors - 1-3/4" thick
  • Backset - 2-3/4"
  • Lockcase - Heavy gauge zinc chromate steel
  • Armored Front - Wrought brass attached by machine screws to lockcase front
  • Handing - Handed. Easily field-reversible
  • UL Listing - UL Listed “A” Label (3 hours), for use on fire doors, single or pair of doors. “F” mark stamped on strike
  • ANSI/BHMA - Meets ANSI/BHMA A156.13, Series 1000, Operational & Security
  • Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles.
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Function:  F07 - Storeroom
Door Thickness:  1-3/4” (44.5mm) standard
Handing: Field Reversible
Backset: 2-3/4" (70mm)
Strike: Brass, non-handed curved strike 4-7/8" x 1 1/4"

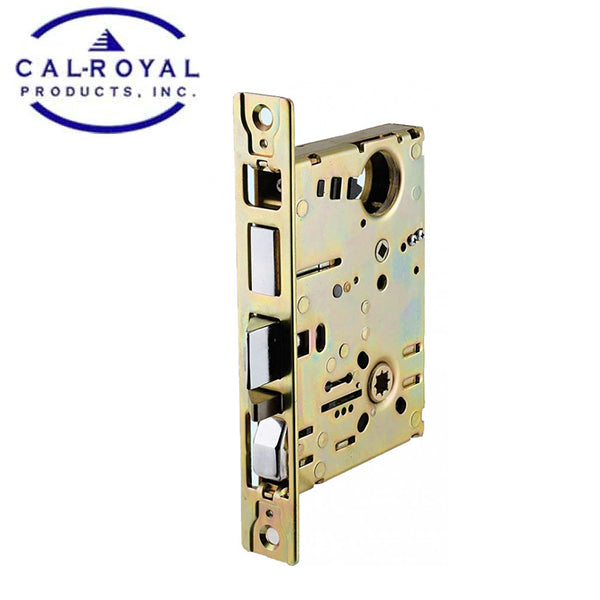

Lock Case: Heavy gauge zinc chromate steel
Deadbolt:  1" throw, brass, chrome plated with hardened steel rollers
Latch Bolt:
 Brass, chrome plated with heavy-duty deadbolt
Trims: SE Escutcheon
Finishes:  26D Satin Chrome
Fire Rated: 3-hour fire door
Certifications: Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceed 1,000,000 cycles



Downloads:
