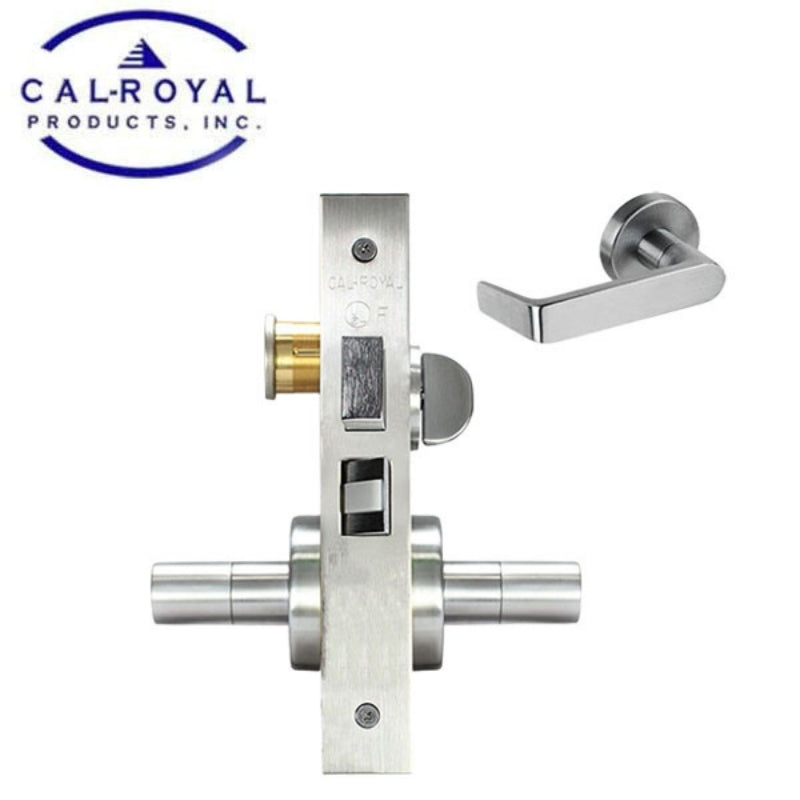

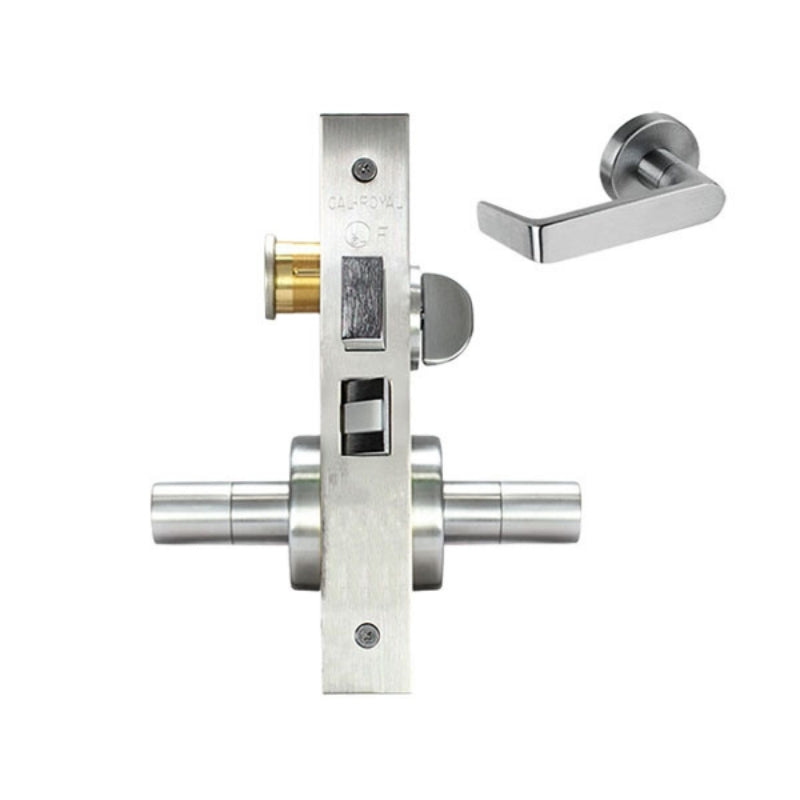

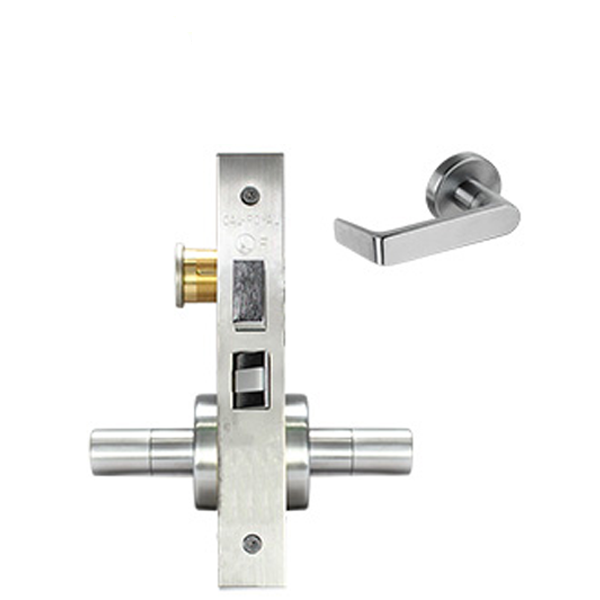

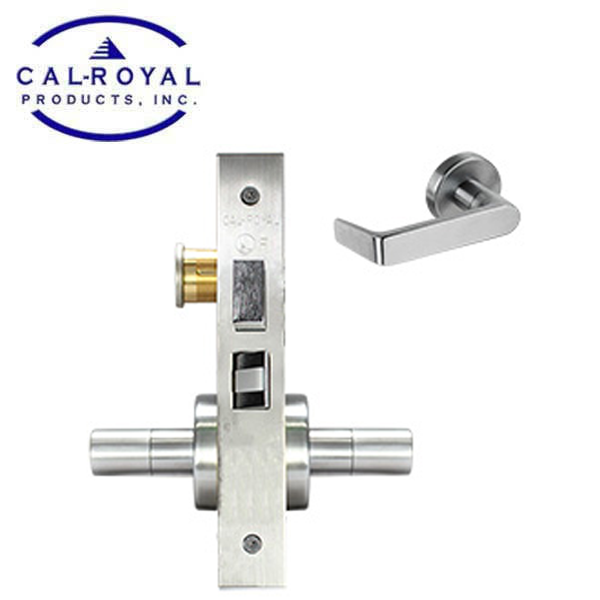

Cal-Royal - NM8456ss - Sectional Trim Corridor Mortise Lock - Right Handed Handling - US26D Satin Chrome Plated - Grade 1
Cal-Royal - NM8456ss - Sectional Trim Corridor Mortise Lock - Right Handed Handling - US26D Satin Chrome Plated - Grade 1

Cal-Royal - NM8456ss - Sectional Trim Corridor Mortise Lock - Right Handed Handling - US26D Satin Chrome Plated - Grade 1

In Stock
SKU: CRL-NM8465SSRH-US26D
NSID: 77518

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$238.21
$285.85
$238.21



The Cal-Royal NM8456ss Sectional Trim Corridor Mortise Lock is a commercial-grade Grade 1 corridor-function sectional trim mortise lockset, designed for heavy-duty use in institutional and commercial applications. Right‑hand reverse handing with satin chromium (US26D) finish.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Features:

  • Function: Corridor (function code 8456) – offers free inside lever and outside lever that locks with toggle/button; latch bolt retracts by lever when unlocked, deadbolt used for security
  • Handing: Right Hand Reverse (RH/RHR)
  • Finish: Satin Chromium Plated (US26D)
  • Lock Case: Heavy-duty zinc chromate steel, 2¾″ (70 mm) backset
  • Latch Bolt: ¾″ nylon-heavy-duty anti-friction, reversible entry
  • Deadbolt: 1″ brass throw with hardened steel inserts and rollers
  • Auxiliary Latch Bolt (Guardbolt): Brass with chrome plating
  • Front (Armored) Plate: Warranted wrought brass, conceals mounting screws
  • Strike Plate: Brass, non-handed curved 4⅞″ × 1¼″ (curved-up optional)
  • Door Thickness Compatibility: Standard 1¾″ (44 mm); up to 2¼″ (57 mm) available
  • Cylinder Compatibility: Standard 1⅛″ mortise cylinder – Schlage “C” or options (Best/Falcon/Arrow/Corbin Russwin/Sargent/Yale)
  • Fire-Rating: UL “A” Label for 3-hour fire doors (UL10C & UBC 7-2-1997)
  • Certifications: ANSI/BHMA A156.13 Series 1000 Grade 1
  • ADA & Safety Compliance: Forged brass levers meet ADA standards

Dimensions:

  • Backset: 2¾″ (70 mm)
  • Deadbolt Throw: 1″ (25 mm)
  • Latch Bolt Throw: ¾″ (19 mm)
  • Front Plate: 8″ × 1¼″ × 3⁄32″ (Heavy-duty steel/brass)
  • Strike Plate: 4⅞″ × 1¼″ (non-handed curved)
  • Door Thickness: 1¾″ standard (up to 2¼″ available)
