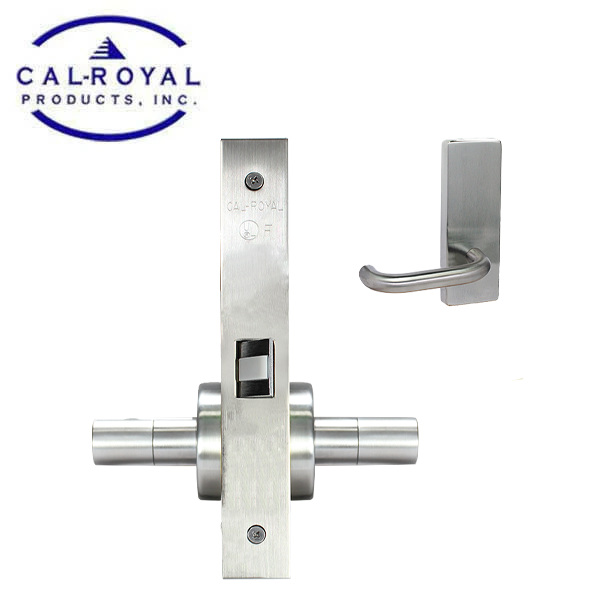

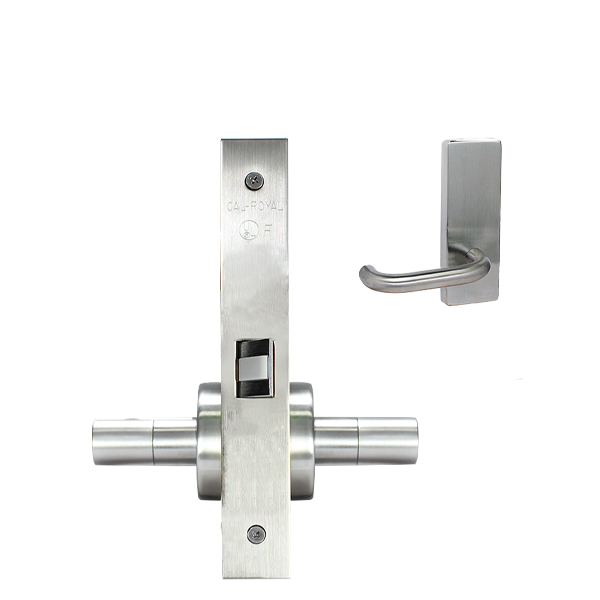

*Discontinued* Cal-Royal - SC8010TE - Passage - Mortise Lockset - US26D - Satin Chrome - Grade 1

*Discontinued* Cal-Royal - SC8010TE - Passage - Mortise Lockset - US26D - Satin Chrome - Grade 1

Discontinued
SKU CRL-SC8010TE-26D NSID 81125
$217.36

The Cal Royal SC8010TE-26D is an Extra Heavy Duty Grade 1 mortise lockset featuring a passage function and a Satin Chrome finish. It is a durable, commercial-grade door handle system designed for high-traffic environments like offices and public buildings

Features:

  • Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes in the door for sectional and escutcheon trims
  • Fully reversible design
  • No exposed mounting screws on the outside and inside trims
  • The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked, preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged
  • Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, and exceeds 1,000,000 cycles
View full details

Details

Specifications:

For Doors  1-3/4" (44.5mm) thick standard
Lock Hand Lock bodies are easily field-reversible
Backset & Strike 2-3/4" (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box
Lock Case  Heavy-Duty wrought steel, zinc dichromate-plated
Center To Center  Center of the lever to center of the cylinder is 3-7/8" (98mm)
Armor Faceplate  Brass or stainless steel: 8" x 1-7/32" (203mm x 31.3mm); ANSI Standard A115.1
Deadbolt  1" (25.4mm) throw; hardened stainless steel
Latchbolt  3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue
Cylinder & Keyways  6-pin solid brass "C" keyway standard
Interchangeable Core (IC Core)  Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW.
Toggle Button High rust-resistant chrome-plated zinc alloy
Auxiliary Latch  Stainless Steel, non-handed
Certifications
  • ANSI / BHMA - Meets ANSI / BHMA A156.13 Series 1000, Operational & Security  Grade 1 Standards.
  • UL / cUL - UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate.
  • POSITIVE PRESSURE - Meets positive pressure requirements UL 10C and UBC 7-2 (1997).
  • ADA - Meets ADA requirements, specifically designed for Barrier Free Application.
