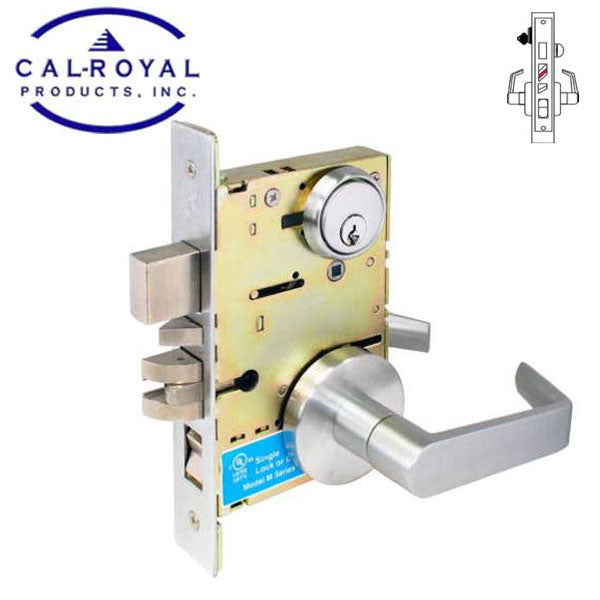

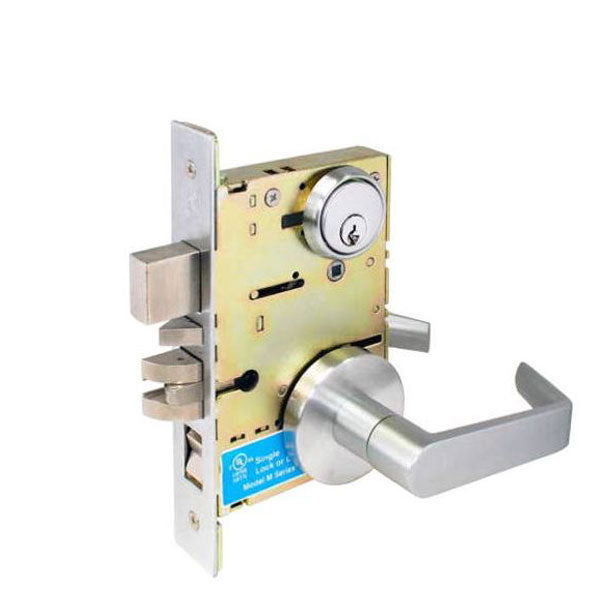

Cal-Royal - SC8453 - SC Series Mortise Lock - Heavy Duty - Entrance - SS Lever - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1

Cal-Royal - SC8453 - SC Series Mortise Lock - Heavy Duty - Entrance - SS Lever - 2 3/4" Backset - Satin Chrome - Fired Rated - Grade 1

In stock
SKU CRL-SC8453SS-26D NSID 32912
$223.71$268.45On Sale You save $44.74 (17%)
Get it shipped Today! Order within:

Features:

  • Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
  • Fully reversible design
  • No exposed mounting screws on the outside and inside trims
  • The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged
  • Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Function: F20 - Entrance
Door Thickness: 1-3/4” (44.5mm) standard
Handing: Field Reversible
Backset: 2-3/4" (70mm)
Strike: Brass or stainless steal strike: ANSI Standard A115.1; curve lio with dust box
Lock Case: Heavy Duty wrought steel, zinc dichromate plate
Center to Center: Center of the lever to center of the cylinder is 3-7/8” (98mm)
Faceplate: Brass or stainless steel; 8” x 1 7/32” (203mm x 31.3mm); ANSI Standard A115.1
Deadbolt: 1” (25.4mm) throw; hardened stainless steel
Latch Bolt:
 3/4” (19mm) throw; one-piece stainless steel with anti-friction reversible tongue
Cylinder: 6-pin solid brass “C” keyway
Trims: Sectional Trim, SS Lever
Toggle Button: High rust-resistant chrome plated zinc alloy
Auxiliary Latch: Stainless Steel, non-handed
Finishes: 26D Satin Chrome
Fire Rated: 3-hour fire door
Certifications: ANSI / BHMA A156.13 Grade 1. Meets ADA, UL/cUL Listed
