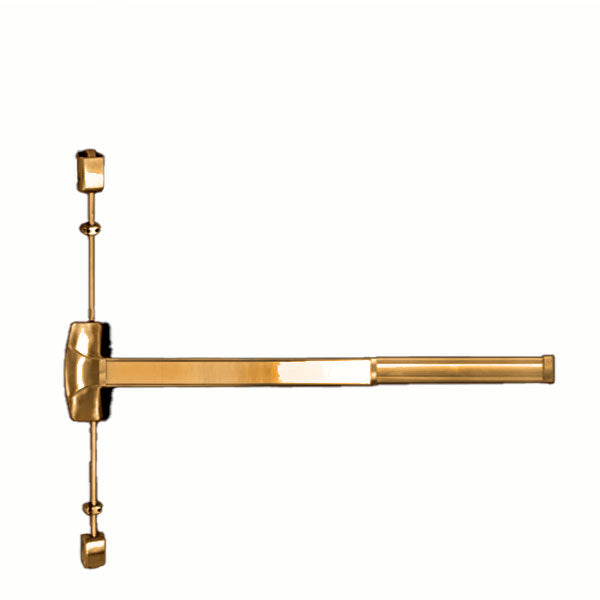

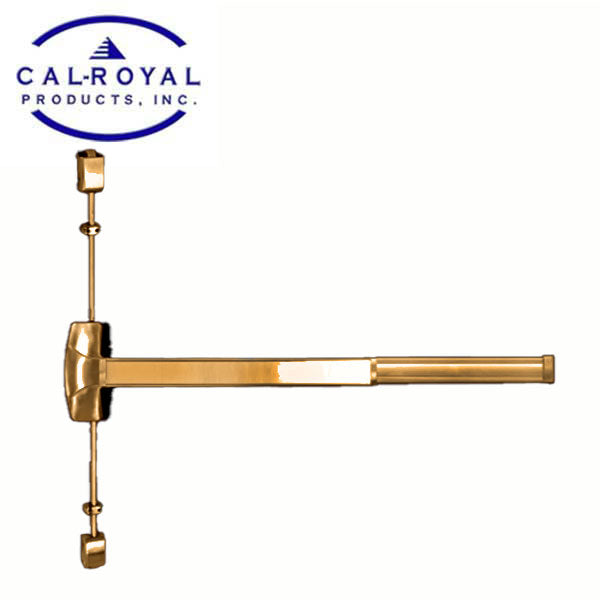

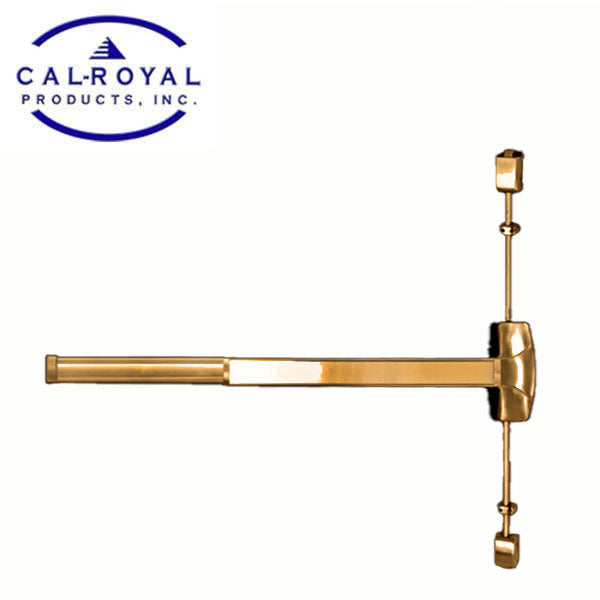

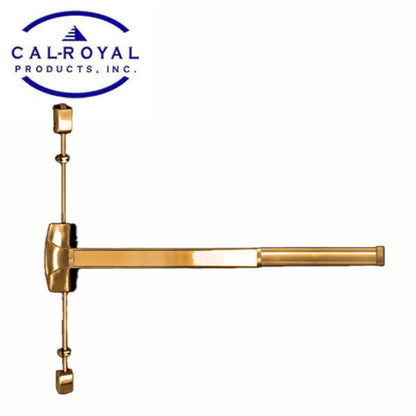

Cal-Royal - Surface Vertical Rod - 36" x 84" - Bright Brass - Optional Handing - Fire Rated - Grade 1
Available to Order
SKU:
CRL-A7760V3684RH-US3
NSID:
31737
31736
- $540.77
-
$576.82 - $540.77
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Vertical rod type exit devices. For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps.
- Trims are thru bolted for additional security.
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors
- Chassis mounted unit construction
- Optional Handing
Specifications:
| Doors | 1 ¾” thick |
| Top Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Material | Aluminum |
| Cover | Non-Ferrous plated material. |
| Mounting | Wood and machine screws. |
| End Cap | Brass, Bronze or Stainless Steel |
| Alarm | Available |
| Hand | LH/RH |
| Latch Bolt & Spring | Stainless Steel |
| Spring | Stainless Steel |
| Rail Assembly | Heavy gauge extruded aluminum body with Stainless Steel push pad |
| Dogging | Allen key |
| Applications | Wood or Hollow Metal Doors |
| Fire Rated | 3 hours |
| Finish | US3 - Bright Brass |
| Dimensions | 36" x 84" |
| Certifications: | ANSI A156.3, GRADE 1, UL Listed 10C, ADA |
