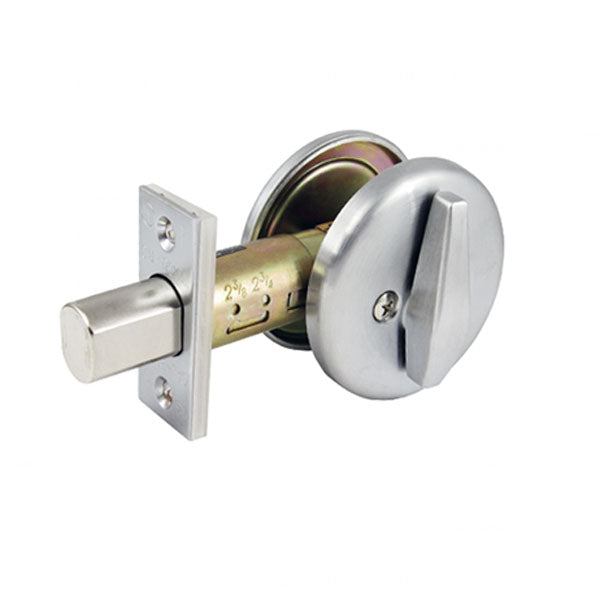

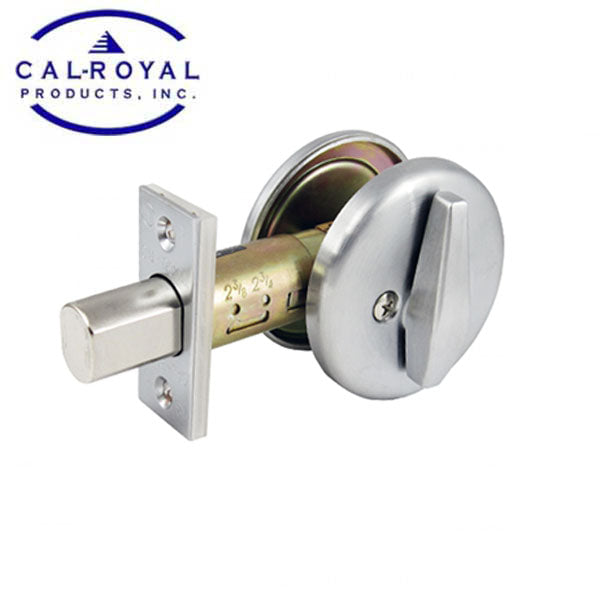

Cal-Royal - ULID365 - T300 Series - One Sided Deadbolt with External Plate - Satin Chrome - Heavy Duty - Grade 2
In Stock
SKU:
CRL-ULID365-26D
NSID:
37977
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $21.08
-
$22.68 - $21.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Features
- Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 2
- Lifetime Warranty
- ADA (American Disability Act) Ergonomic Thumbturn
- Deadbolt thrown or retracted by inside turn unit.
- Bolt automatically deadlocks when fully thrown.
- Blank round cover plate is on other side of thumbturn and is to be used on bore holes 2-1/8" wide.
- Adjustable latch bolt 2-3/8” - 2-3/4“
Specifications
| Handing | Non-Handed |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4 " (44.5 mm) |
| Backset | 2 3/8" (60 mm) |
| Deadbolt Faceplate | 1” x 2-1/4” |
| Material | Wrought Brass or Stainless Steel |
| Latch Prep |
Plastic filler for 1-1/8” latch prep. |
| Bore Diameter | 2 ⅛” for lock housing. |
| Finish | 26D - Satin chrome |
| Certifications |
Grade 2 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
Downloads
