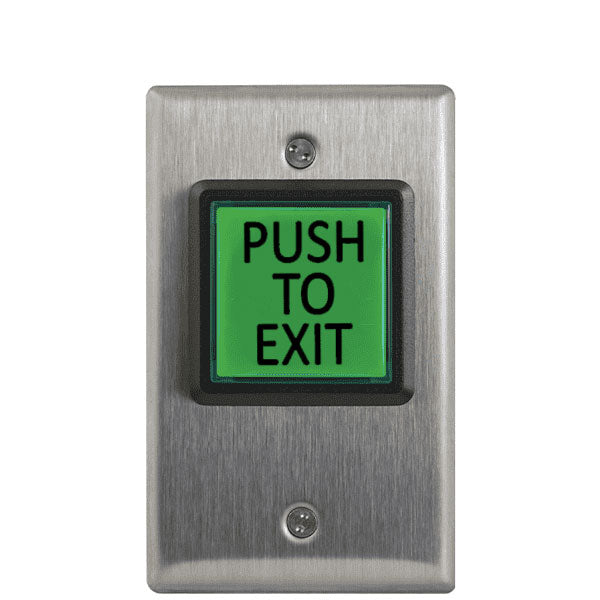

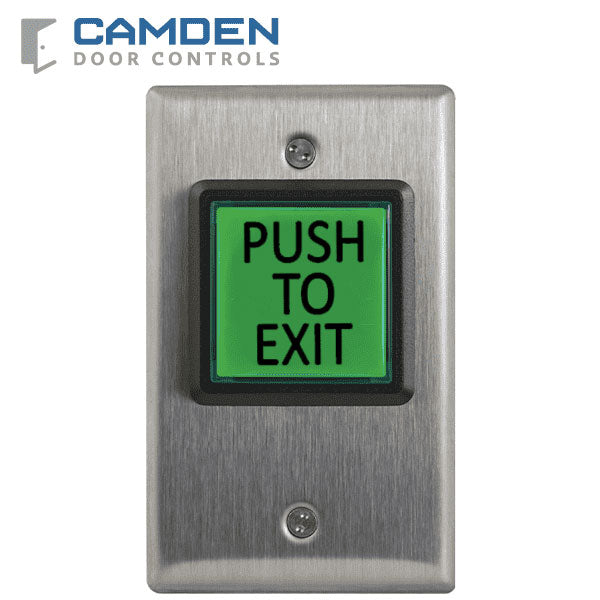

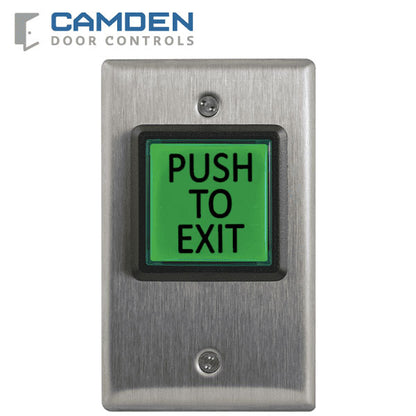

Camden CM-30E - Push/Exit Square Switch - LED Illuminated - w/ English Label - 12V-28V

Camden CM-30E - Push/Exit Square Switch - LED Illuminated - w/ English Label - 12V-28V

Available to order
SKU CMD-CM-30E NSID 1365
$37.63$45.16On Sale You save $7.53 (17%)
Please Note: This product ships within 1 week


M-30 Series UL compliant LED illuminated 'request to exit' (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications.

Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE with double break circuitry.

  • High visibility 2" square button
  • Single gang stainless steel faceplate
  • LED bulb provides super-bright operation and longevity (10 year estimate)
  • 3 year warranty with '2 for 1' replacement
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Voltage: 12/24 VDC
Contact Type: SPDT Form 'C'
Contact Rating: 10 A @ 30 VDC
Switch Type: Momentary
Current Draw: LED Bulb: 14 mA
Dimensions: 4-1/2"x 2-3/4" x 1-7/8"”
(114.mm x 70mm x 48mm)
Std. Finish: US32/C32D
