Camden CV-550SPK-V2 - Standalone PROX Reader & Keypad - Version 2 - 20,000 Users -Vandal & Weather Resistant IP68 - 12-28V DC/AC
- Product SKU: CMD-CV-550SPK-V2
- NSID: 38009
-
CMD-CV-550SPK-V2

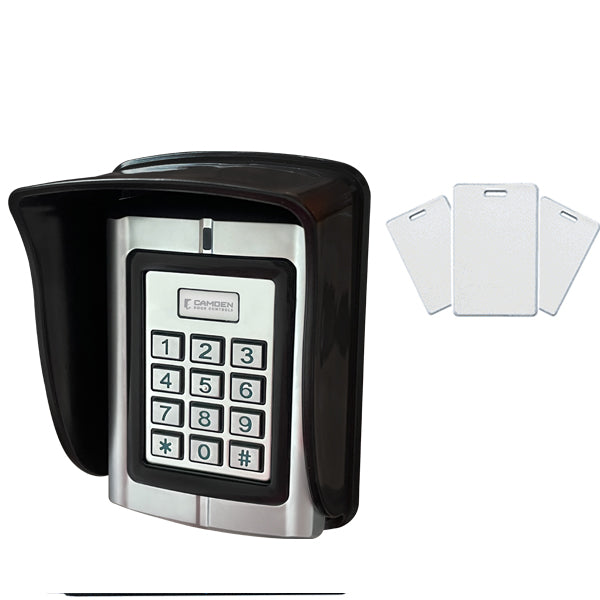

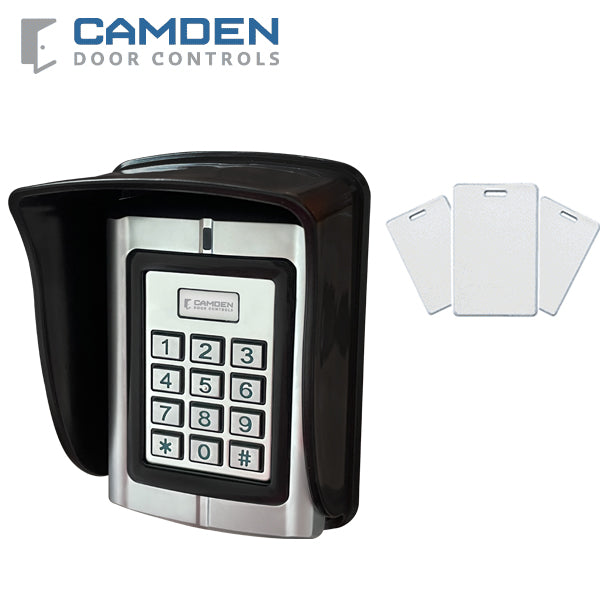

Camden CV-550SPK Version 2 is the latest version of the CV-550SPK series. This updated version stand-alone, HID format prox. reader and keypad, supports up to 20,000 users with card, PIN, or card and PIN access. It features a cast metal housing and backlit keypad with fully potted electronics, making CV-550SPK both weather (IP 68 rated) and vandal resistant. on top of being weather resistant it includes a FREE black weather/privacy shield
In addition, the CV-550SPK has inputs for REX switch/sensor, door contacts, as well as a Form 'C' relay, tamper, and Wiegand 26 bit input and output. User cards or tags can easily be individually or batch enrolled.- Up to 20,000 users - Card, PIN, Card + PIN
- Batch card/tag enrollment
- Two-Door Interlock Mode
- Cast metal, heavy duty construction
- Backlit vandal resistant keypad
- Weather resistant IP68 rated & with black weather/privacy shield
- Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
- 4 to 6 digit PIN code length
- (1) Form 'C' relay output
- Tamper alarm output
- Request to exit device input
- Door contact input
- Adjustable door alarm time and door open time
- Wiegand 26 bit output for integration with access control systems
- Wiegand 26 bit input/output
- 3 year warranty
Specifications:
| Voltage: | 10-28V DC or AC +/- 10% |
| User Codes: | 2,000 |
| IP Rating: | 68 |
| Idle Current: | 25 mA |
| Contact Type: | (1) Form 'C' |
| Contact Rating: | 1 Amp @ 30 VDC |
| Alarm Output Load: | 1 Amp @ 30 VDC |
| Ring Bell Load: | 1 Amp @ 30 VDC |
| Card Read Distance: | 1.75" (40mm) max. |
| Card Frequency: | 125KHZ, EM and HID |
| Card Format: | 26, 34 or 37 Bit Wiegand |
| Keypad Format: | 4 Bit, 8 Bit and Virtual Card Number |
| Temp Range: | -49°F to 113°F (-45°C to 55°C) |
| Dimensions: | 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.50mm x 26.42mm) |
Spec Sheets
- CV-550SPKV3_Spec Sheet DOWNLOAD
- CV-550SPK_V3_Manual DOWNLOAD
