$245.88 $420.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-ED1259L
  • CMD-CX-ED1259L
    Item number: 6878

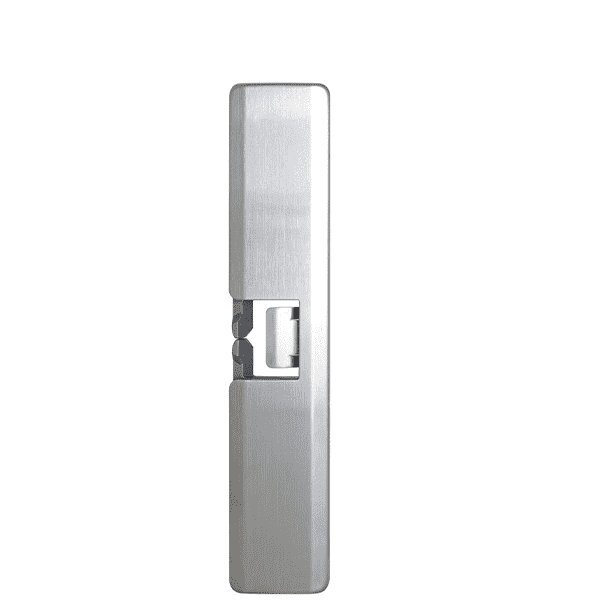

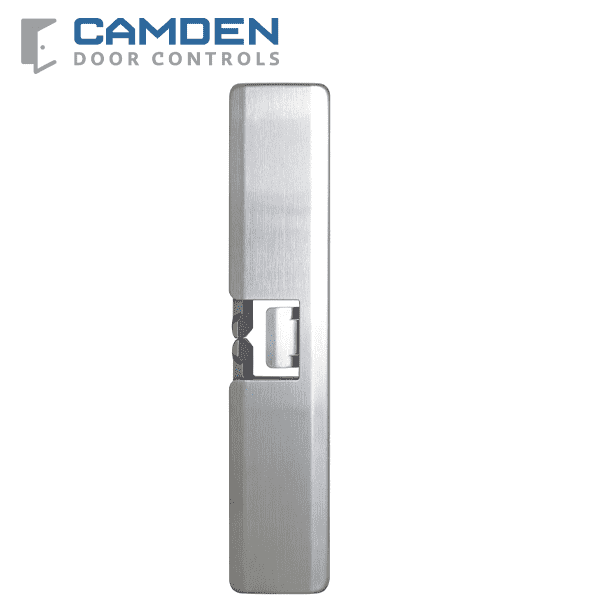

    Camden's CX-ED1259L is a Grade 1 fire rated surface mount RIM strike that accommodates 1/2" to 3/4" latch projection and is a 'universal' strike with 12/24V AC/DC, operation, and selectable fail safe/fail secure operation. The CX-ED1259L includes (2) spacer plates and horizontal adjustment to insure correct latch alignment in all applications.

    UL 10C and ULC 104 fire listed (3 hour), UL 1034 Burglary and UL 294 Security listed.

    • UL 10C/ULC 410 fire listed (3 hour)
    • UL 1034 Burglary and UL 294 Security Listed
    • 'No Cut' surface mounted
    • 'Universal' design with selectable 12/24V AC/DC and fail safe/fail secure operation
    • Single solenoid operation provides superior strike reliability
    • Tamper resistant stainless steel construction
    • (2) spacer plates and horizontal adjustment insure proper latch entry in all applications
    • 1/2" to 3/4" latch projection
    • Latch monitoring included
    • Non-handed, plug-in wiring harness
    • 5 year warranty
    $245.88

Specifications:

Voltage:  12/24V AC/DC
Current Draw:  280 mA @ 12 VDC
140 mA @ 24 VDC
Static Strength:  1,500 Lbs.
Dynamic Strength:  70 Ft-Lbs.
Endurance:  1,000,000 cycles (factory tested), 250,000 cycles (UL verified)
Mode:  Selectable fail safe
fail secure
Operation:  AC - Buzz
DC- Silent
Duty:  Continuous
Latch Monitor:  Yes
Dimensions:  9"H x 1-3/4"W x 3/4"D
(230mm x 44.5mm x 19.1mm)


Spec Sheets
  • CX-ED1259L_Spec Sheet R2 pdf 0.48 DOWNLOAD
Reference Guides
  • CX-ED1259L_Product Comparison pdf 0.11 DOWNLOAD
  • Camden Strikes_Cross Reference pdf 0.19 DOWNLOAD
  • Camden Strikes_Installer Guide pdf 2.60 DOWNLOAD
Manuals
  • CX-ED1259L_Manual_English_R4 pdf 0.85 DOWNLOAD
  • CX-ED1259L_Manual_French_R4 pdf 0.86 DOWNLOAD
  • CX-ED1259L_Supplemental Installation Instructions pdf 0.35 DOWNLOAD
