*Discontinued* CCL - 960-Series Dial Combination Security Lock - Wall Mount (SESAMEE 96008)
- $21.60
-
$50.74 - $21.60
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Holds over 5 door or car keys
- Wall mount for convenience
- Set your own 4-digit combination for keyless convenience
- 3-1/4" (83mm) wide durable metal construction
- Shutter door protects combination dials from weather, dirt and grime
- Molded body and vinyl coated shackle prevent scratching
- Product of Taiwan; designed in Wheeling, Illinois
- $21.60
-
$50.74 - $21.60
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xInstructions

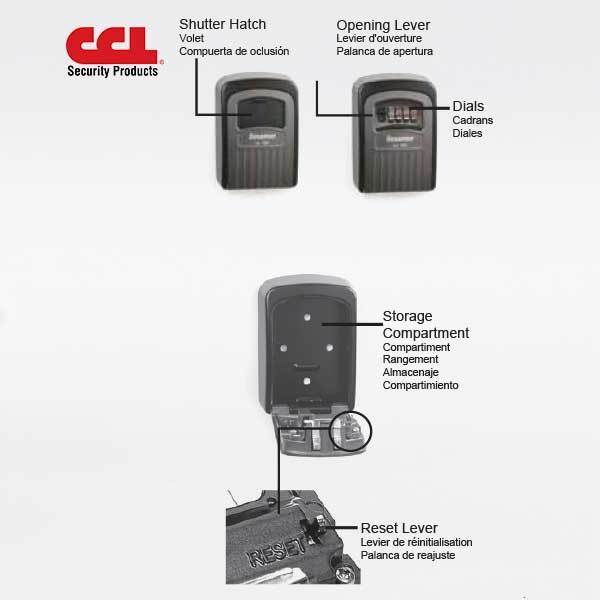

Opening the key storage compartment door: 1. Open shutter door to reveal the dials and the release button.
2. Rotate dials to the current combination (Otherwise factory default 0-0-0-0)
3. Press down on the release button toopen the door. Setting new combination:
1. Open the compartment door. (see Instructions above)
2. Push the reset lever left and toward you. The lever remains in this position.
3. Rotate the dials to your desired combination.
4. Push the reset lever up and right, back to its original position.
5. Close the key storage compartment door.
6. Scramble the combination dials to lock the door and conceal your combination.
7. Close the shutter door. Wall Mounting: NOTE: You will require a Phillips/Pozi Screwdriver, pencil, spirit level, drill bit, a drill and a hammer.
1. Open the compartment door (see instructions above)
2. Position the lock on the desired mounting surface.
3. Use the spirit level to check that the lock is vertical.
4. Mark the position of the screw holes on the desired surface.
5. Remove lock.
6. Drill holes.
7. Use hammer to fit wall plug (if necessary).
8. Position lock.
9. Insert and tighten screws.
10. Close the storage compartment.
11. Scramble the combination dials to lock the front door and conceal your combination. Close shutter door. Reminder:
1. The release button will open the lock until you scramble the dials.
2. Keep the shutter door closed to increase weather resistance and to conceal the dials from view.
3. Be sure to record your combination and store in safe location.
