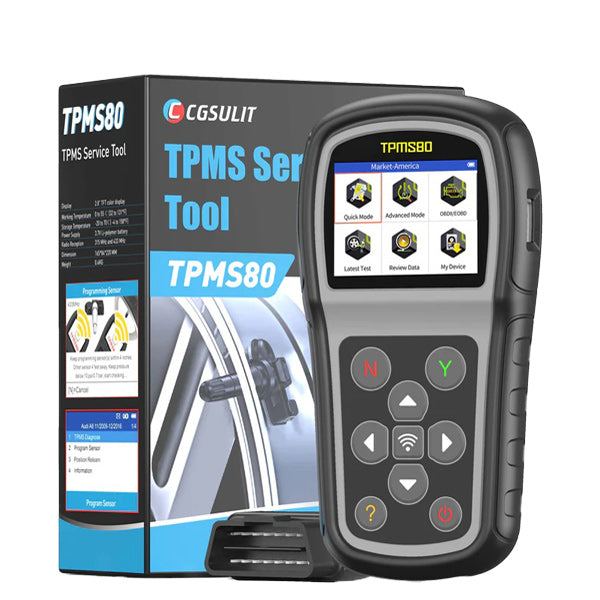

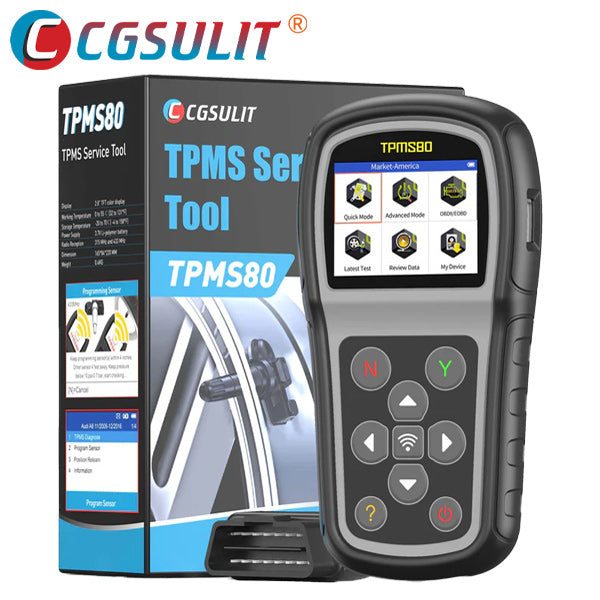

*Discontinued* CGSULIT - TPMS80 - TPMS Relearn Tool - TS01 Sensor Programming - 315 / 433 MHz - Free Lifetime Updates
- $140.25
-
$0.00 - $140.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CGSULIT TPMS80 is a professional TPMS relearn tool designed to monitor tire pressure and program universal new TPMS sensors with 315 Hz or 433Hz for most vehicles, including brands like BMW, GMC, HONDA, TOYOTA, and more. It also supports full OBD2 modes.
- $140.25
-
$0.00 - $140.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFeatures:
- Diagnose issues from tire pressure monitor systems, read and clear TPMS trouble codes.
- Supports programming universal TPMS sensors with 315mhz & 433mhz.
- Covers 98% of vehicles of different car makes in the aftermarket, making it the best TPMS relearn tool for brands like GM, Toyota, Chevrolet, etc.
- Combines with full 10 OBD2 modes, serving not only as a TPMS reset tool but also a check engine light tester.
- Supports wireless programming of TPMS sensors for added convenience.
Programming Modes:
TPMS80 offers 4 modes to program TS01 TPMS sensors. These include Copy by OBD, Copy by Activation, Copy by Manual Input, and Auto Create 1-16 Sensors.
How can TPMS sensors relearn?
TPMS80 can relearn almostly all TPMS sensors with 315mhz or 433mhz from OEM to aftermarket into vehicle's ECU. There are three ways for relearning below.
- Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.
- Automatic Relearn: For some vehicles, can be completed by driving.
- OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.
TPMS Diagnose - Unique TPMS System Status Screen
With the unique TPMS Status Screen feature, the TPMS80 Reset Tool can diagnose the TPMS system to read and clear TPMS DTCs, view DTCs detail description, read ECU sensor ID, and check sensor ID and ECU ID matching conditions, check all TPMS sensors status. Quickly and easily locate the faulty sensors and get them fixed.
Two Modes to Diagnose TPMS: Quick Mode/Advance Mode
Based on the service type needed, TPMS80 scan tool offers Quick Mode/Advanced Mode for faster & smarter TPMS repair.
- TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program TS01 sensors quickly.
- TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, TS01 sensor program and sensor position relearn.
Best OBD2 Scanner with TPMS Reset - TPMS80 Supports all 12 OBD2 Modes
- Reading Codes: show the detailed description of the diagnostic trouble code, and support DTC lookup.
- Clear Codes: turns off the Check Engine Light, including clear DTCs, ECU information, freeze frame.
- Live Data: view and record real time PID data from a selected vehicle electronic control module.
- I/M Readiness: view a snapshot of the operations for the emission system on OBDII/EOBD vehicles.
- O2 Monitor Test: retrieve completed O2 sensors monitor test results.
- On-Board Monitor Test: displays test results for Emission-Related power train components and systems that are and are not.
- Component Test: allows the code reader to control operation of vehicle components, tests or systems.
- Request Vehicle Information: to request the vehicle's VIN number, calibration lD(s), calibration verification numbers (CVN(s)) ect.
- Modules Present: identifies module IDs and communication protocols for OBD2 modules in the vehicle.
- DTC Lookup: to request DTC definitions stored in the code reader.
What else can TPMS80 do?
-
Check Key Fob Frequency
When your key fob starts to act up or stops working, you would be happy to have the TPMS80 universal tool in your tool arsenal to test the signal strength of the key fob instead of visiting a dealership. -
Data review & data printing
functions allow you to review the data recorded, saved TPMS DTCs, tire type, and pressure information, and print it out via PC for further analysis and accurate repairs. -
Lifetime Free Updates & 1 Year Warranty.
TPMS80 comes with lifetime free updates to get frequently released updates to support the newest car models, enabling you to always get the latest bug fixes. With one year warranty, 30-Day money-back policy & lifetime services, your purchase is risk-free! Buy now to get your TPMS work done!
Packing List:
- 1 pc x TPMS80 Main Unit
- 1 pc x Diagnostic Cable
- 1 pc x User Manual
- 1 pc x Warranty Card
- 1 pc x USB Cable
- 1 pc x Outer Carton
