CodeLocks - CL2200 - Electronic Door Lock - Dual Backset Latch 2 3/8" - 2 3/4" - Electronic Surface Deadbolt - Brushed Steel
Available to Order
SKU:
CDL-CL2200-BS
NSID:
48767
- $201.96
-
$315.60 - $201.96
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL2200

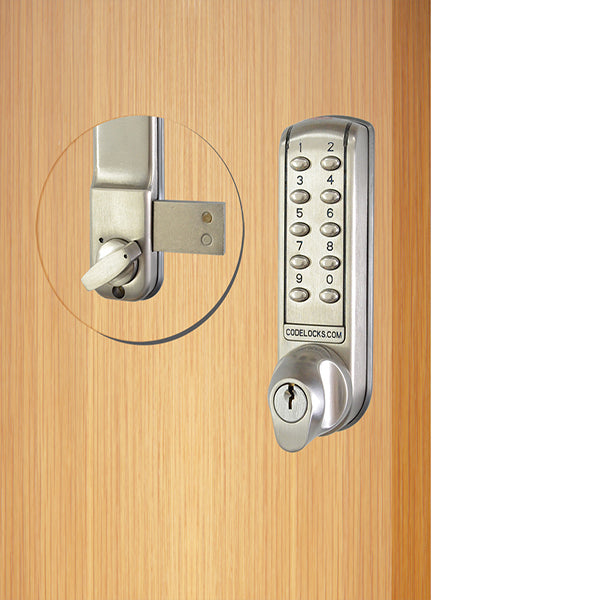

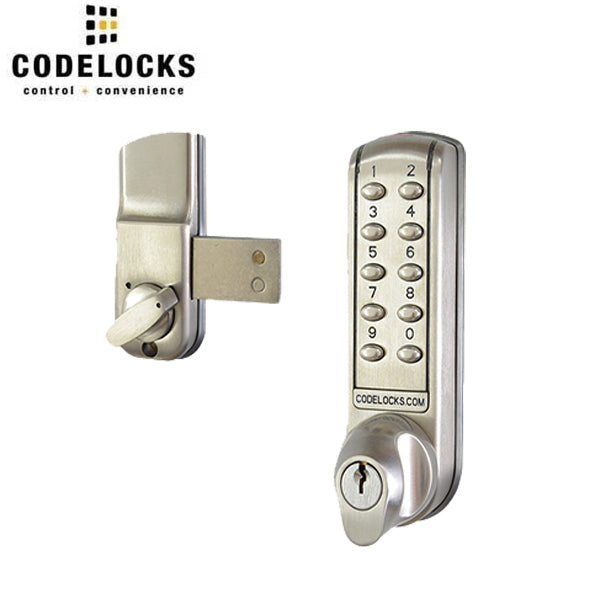

The CL2200 is a medium duty electronic lock. The bolt slides on the inside surface of the door to lock or unlock. The bolt is moved manually by means of the outside knob after the code is entered, and freely by the inside knob at all times.
When a valid code is entered and the blue LED lights burn, the knob will retract the bolt. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.
Features
- Surface deadbolt
- Rapid retrofit for basic single code mechanical locks
- On door programming via Master Code in seconds
- Allows up to 80 User Codes
- Allows up to 10 One-Time User Codes
- Over 80,000 operations from 2 x AA cells (supplied)
- Non handed
- PVD low maintenance finish
- Key override as standard
Specifications
| Brand | Codelocks |
| Buttons | 2 x 5 + Programming |
| Code Change Method | Keypad (On Door) |
| Codes | Allows up to 10 one time User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 12 Individual stainless steel buttons |
| Latch Type | Surface Deadbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 80,000 operations per 2 x 1.5v AA batteries |
| Orientation | Vertical |
| Power | 2x AA |
| Spindle | Flat bar spindle, 5⁄16" (8mm) adaptor supplied |
| Suitable For | Internal, External |
| User Types | Code |
Dual Backset Latch 2 3/8" - 2 3/4"
