CodeLocks - CL2255 - Electronic Door Lock - Dual Backset Latch 2 3/8" - 2 3/4" - Electronic Tubular Mortise Latch - Brushed Steel

CodeLocks - CL2255 - Electronic Door Lock - Dual Backset Latch 2 3/8" - 2 3/4" - Electronic Tubular Mortise Latch - Brushed Steel

Available to order
SKU CDL-CL2255-BS NSID 48765
$225.85$271.02On Sale You save $45.17 (17%)
Please Note: This product ships within 8 Days

CDL-CL2255

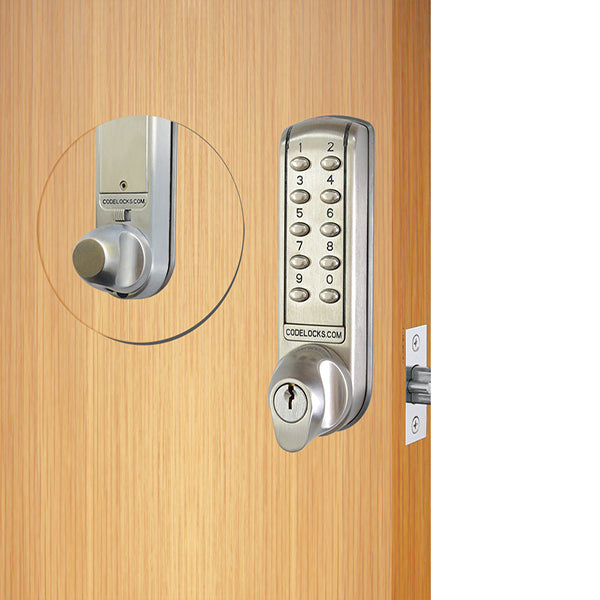

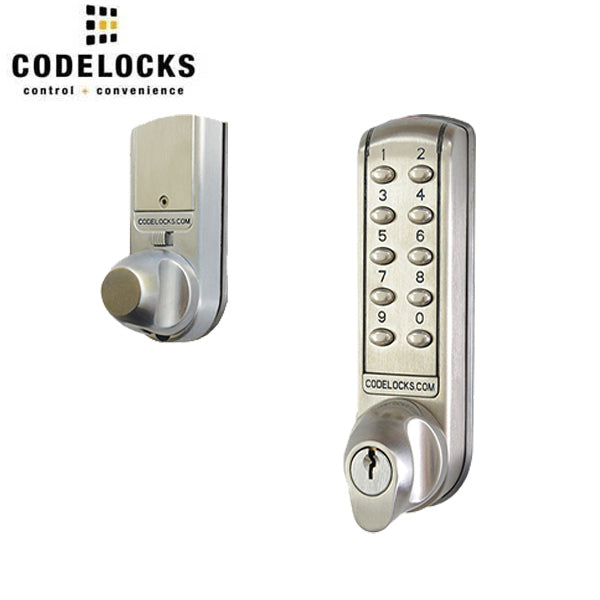

The CL2255 is a medium duty tubular mortise latch electronic lock. The outside knob turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights burn, the knob will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.

Features

  • Tubular mortise latch
  • Rapid retrofit for basic single code mechanical locks
  • On door programming via Master Code in seconds
  • Allows up to 80 User Codes
  • Allows up to 10 One-Time User Codes
  • Over 80,000 operations from 2 x AA cells (supplied)
  • Non handed
  • PVD low maintence finish
  • Key override as standard
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

    Brand Codelocks
    Buttons 2 x 5 + Programming
    Code Change Method Keypad (On Door)
    Codes User Codes 4, 5 or 6 digits long
    Door Thickness 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
    Finish Brushed Steel
    Handed Non-Handed - Locks will fit doors hung on the left or right
    Keypad 10 Individual stainless steel buttons
    Latch Type Mortise Latch
    Lock Material Zinc Alloy
    Low Battery Warning Red LED will flash on opening to indicate low battery
    Memory Stores up to 80 User Codes
    Operations Up to 80,000 operations per 2 x 1.5v AA batteries
    Orientation Vertical
    Power 2x AA
    Spindle Flat bar spindle, 5⁄16" (8mm) adaptor supplied
    Suitable For Internal, External
    User Types Code



     Dual Backset Latch 2 3/8" - 2 3/4"
