Details

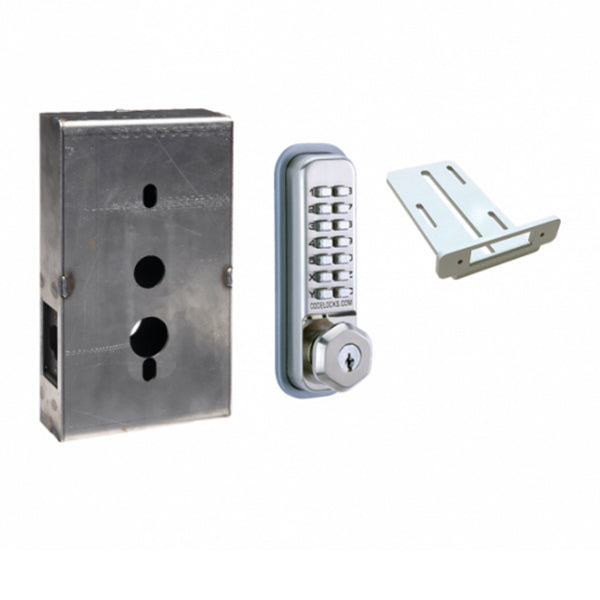

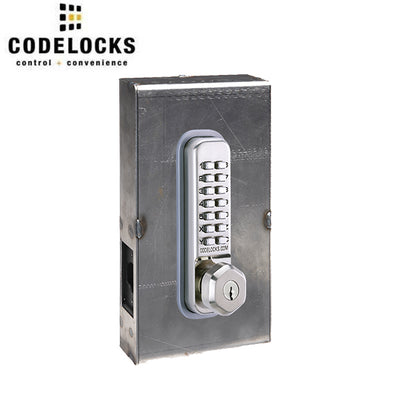

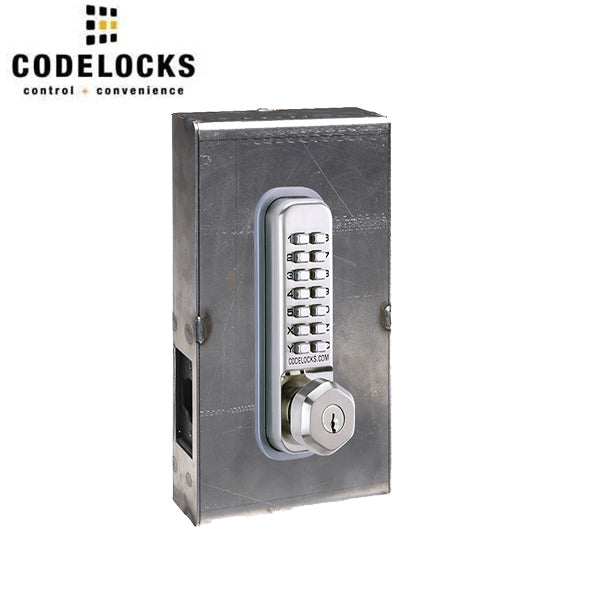

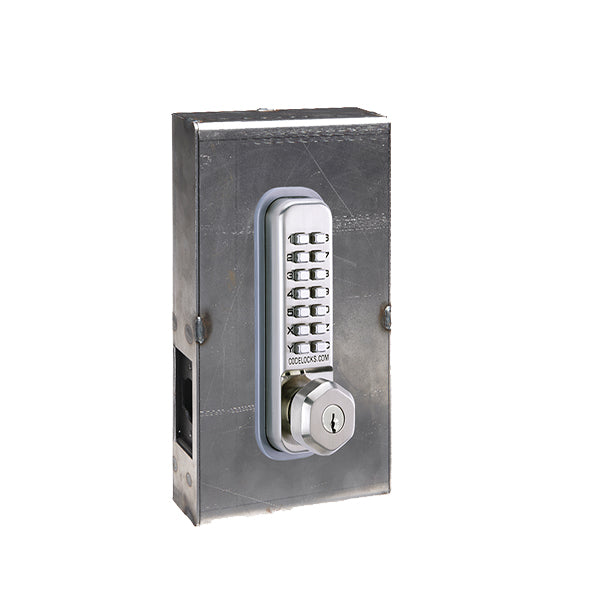

Gate Box Kit Components
- CL250 Tubular Deadbolt with Key Override
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
| Brand | Codelocks |
| Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 2 x 7 |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 non sequential code combinations available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Stainless Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 14 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Dual Backset Deadlatch
