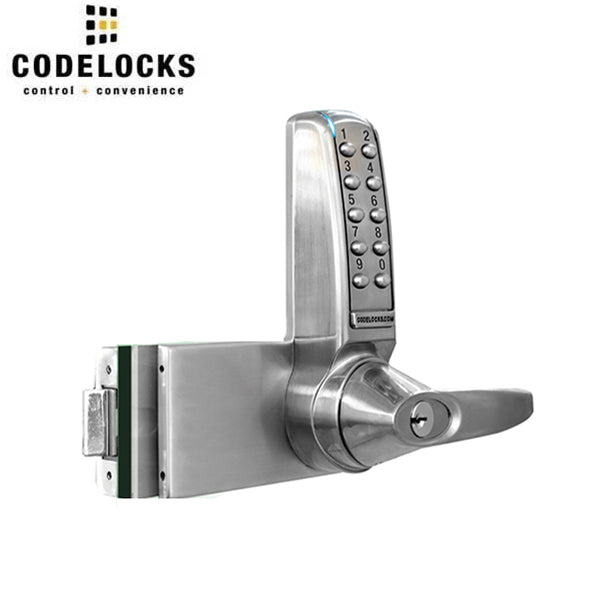

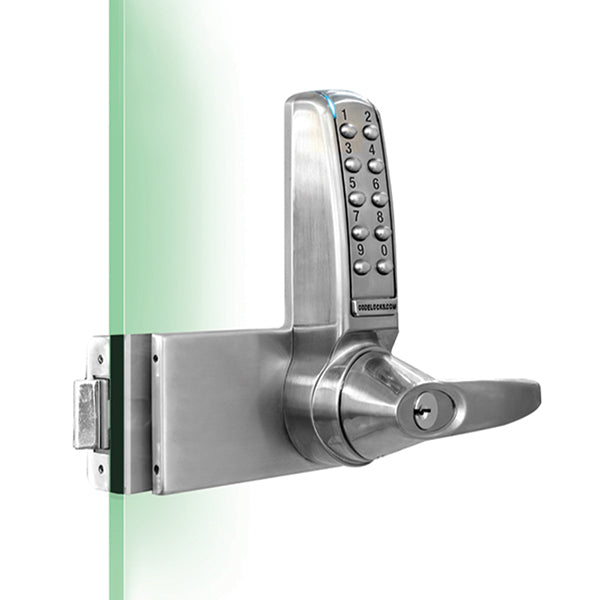

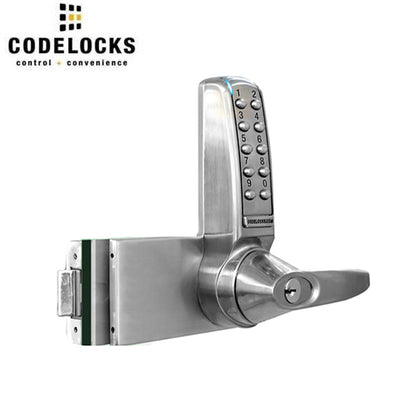

CodeLocks - CL4000 - Electronic Glass Door Lock - Non-Handed - Field Reversible - Brushed Steel
In Stock
SKU:
CDL-CL4000GD-BS
NSID:
48764
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $712.89
-
$1,062.60 - $712.89
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL4000
The CL4000GD is a medium-duty electronic patch door lock. The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes, the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free mode can also be programmed at the keypad using the Master Code.
Features
- Glass Doors
- Mortise Latch
- Fits existing 'Rondo' type glass door prep
- Over 140,000 operations from 4 x 'N' cells (supplied)
- Tamper time out and low battery warning
- Lever handle supplied as Non-Handed
- Suitable for in-swinging doors only
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Specifications
| Brand | Codelocks |
| Buttons | 2 x 5 + Programming |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 5⁄16" - 10⁄16" (8mm - 15mm) |
| Finish | Brushed Steel |
| Handed | Lever handle supplied as Non-Handed for inswing doors only |
| Keypad | 10 Individual stainless steel buttons |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 140,000 per set of 4 x ‘N’ cells |
| Power | 4x N |
| Orientation | Vertical |
| Spindle | 5⁄16" (8mm) square spindle |
| Suitable For | Internal, External |
| User Types | Code |
Installation Video:
Downloads:
