CodeLocks - CL410 Gate Box Kit - Mechanical Lock - Medium Duty - Tubular Latch Bolt Gate Box Kit - Code In / Out - Stainless Steel
- $392.58
-
$517.80 - $392.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The CL410 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Internal doors and external doors
- Code In / Out: Allows for coded entry on both sides
- Mechanical Codelock
- Medium duty tubular latch bolt
- Lever handle lock for doors hung on the left or right
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

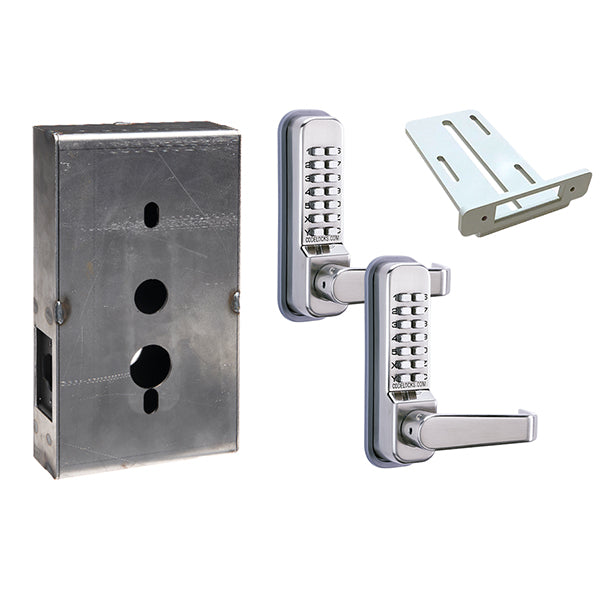

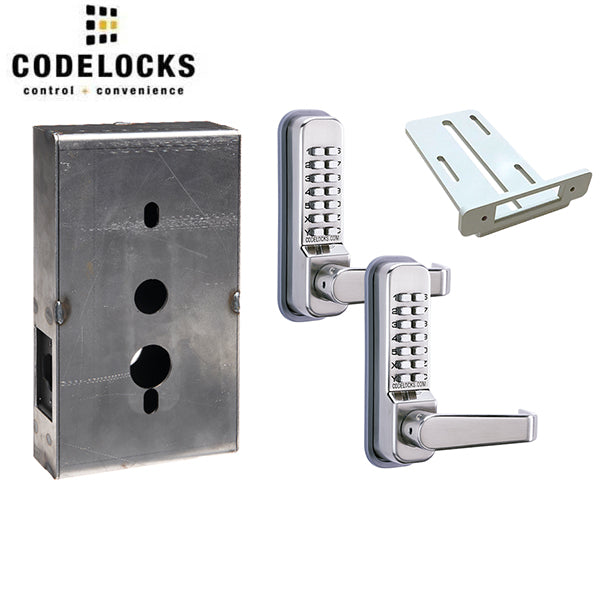

Gate Box Kit Components
- CL410 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
Brand |
Code Locks |
Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
Gate Box Material | 14-gauge steel |
Buttons |
2 x 7 |
Code Change Method |
Tumblers (Off door) |
Codes |
Single code storage - 8,191 non-sequential combinations available |
Material | Zinc Alloy |
Finish Color | Stainless Steel |
Handed |
Non-handed |
Keypad |
14 Stainless Steel Buttons |
Latch Type | Tubular Latchbolt |
Lock Material | Zinc Alloy |
Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
Orientation | Vertical |
Manufacturer Warranty | Limited Lifetime Warranty |
