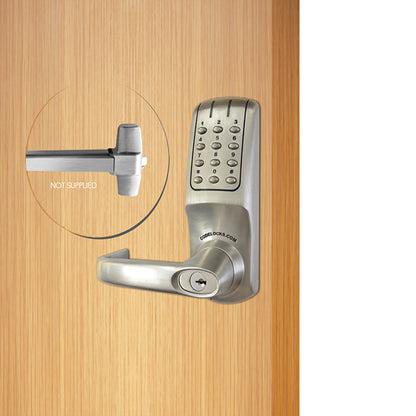

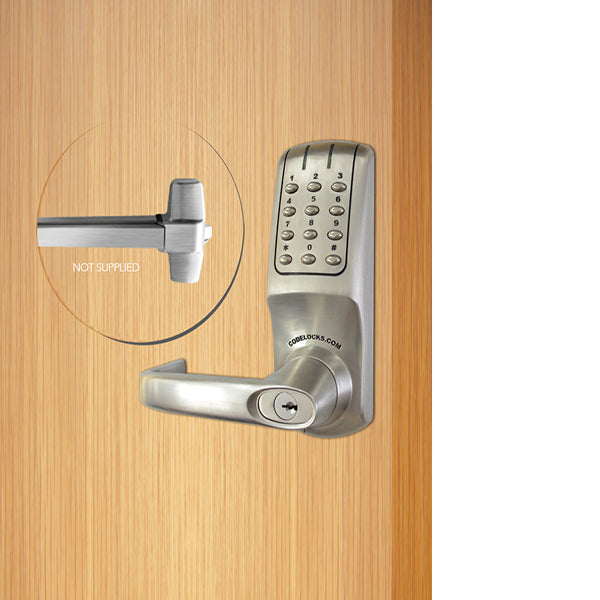

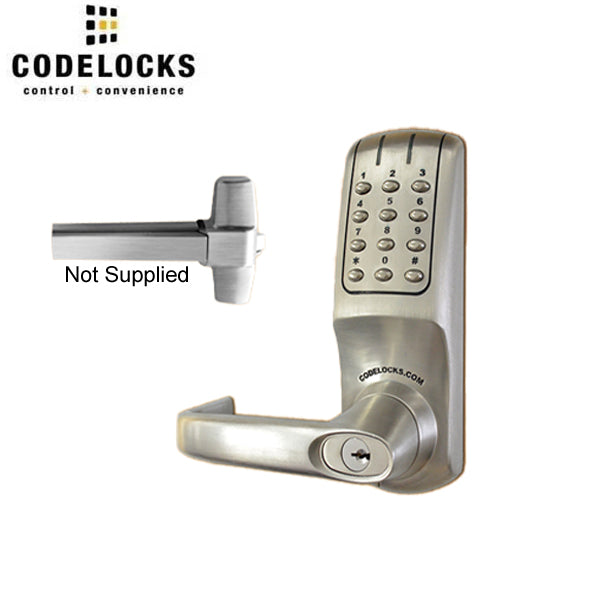

CodeLocks - CL5000 - Electronic Door Exit Trim - Heavy Duty - 2 3/4" Backset - Panic Access Kit - Optional SFIC Prep - Grade 2

CodeLocks - CL5000 - Electronic Door Exit Trim - Heavy Duty - 2 3/4" Backset - Panic Access Kit - Optional SFIC Prep - Grade 2

Available to order
SKU CDL-CL5000PK-BS NSID 43741
$379.75$455.70On Sale You save $75.95 (17%)
Please Note: This product ships within 8 Days

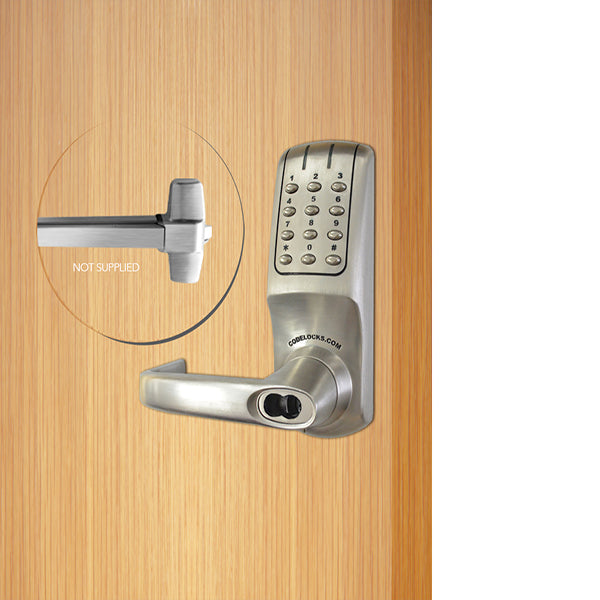

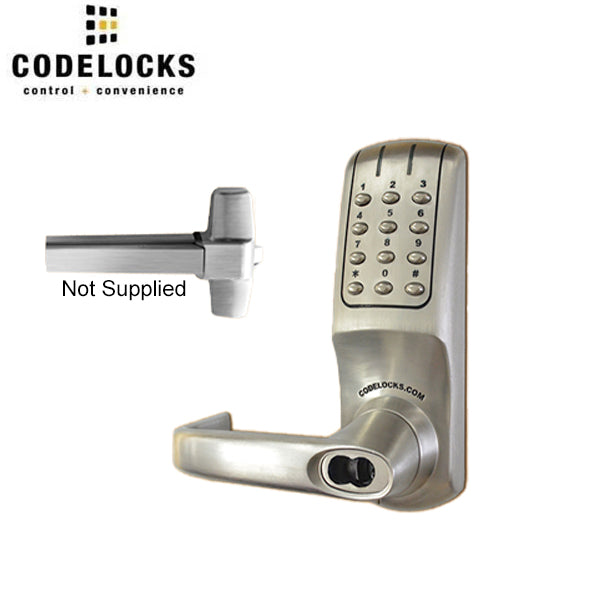

Cylinder Prep

CDL-CL5000

The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code

Panic Rim Exit Device NOT included.*

Features:

  • Electronic panic access kit
  • Fit with new or existing panic equipment
  • Lever handle lock for doors hung on the left or right
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
  • Tested to Grade 2 - ANSI - A156.2
  • UL/ULC Fire Rating 3 hours
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details



Specifications:

    Brand
    		 Code Locks
    Buttons
    		 3 x 4
    Door Thickness 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
    Code Change Method
    		 Tumblers (Off door)
    Material Zinc Alloy
    Finish Color Brushed Steel
    Handed
    		 Non-handed
    Keypad
    		 12 Stainless Steel Buttons
    Spindle Two part 5⁄16" (8mm) spring loaded spindle
    Low Battery Warning Red LED will flash on opening to indicate low battery
    Operations Up to 200,000 per set of 4 x AA batteries
    Power 4 x AA batteries
    Lock Material Zinc Alloy
    Orientation Vertical
    Fire Rated UL/ULC Fire Rating 3 hours
    Manufacturer Warranty Limited Lifetime Warranty
