CodeLocks - CL5210 - Electronic Door Lock - Optional Backset - Tubular Latchbolt - Brushed Steel - Optional Cylinder Prep - Fire Rated - Grade 2

Available to Order
SKU: CDL-CL5210-IC-BS-70
NSID: 43766 43765 36795 43763

Please Note: This product ships within 3 Days

$295.48
$525.30
$295.48

CDL-CL5210

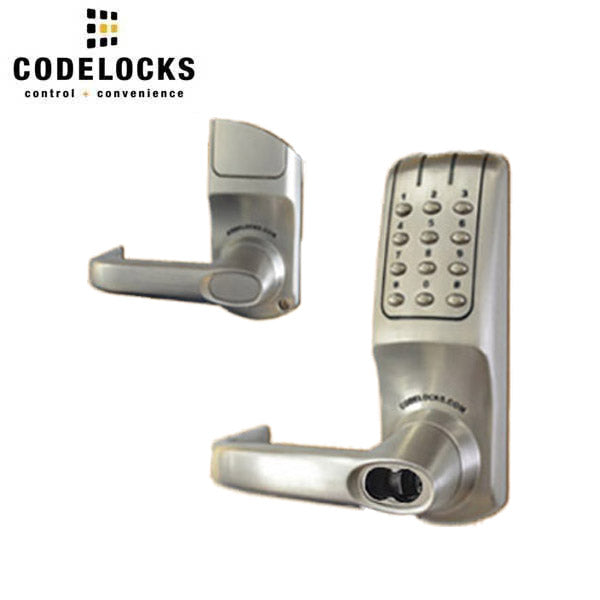

The CL5210 has a conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions. Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door. Particularly suitable for use in health, educational, commercial and residential environments.

Features

  • Optional IC Cylinder Prep: Prepped to receive a Small Format Interchangeable Core. SFIC Core is not included.
  • 3-hour UL 10C certification
  • Allows up to 80 User Codes
  • Allows up to 10 one-time User Codes to be entered
  • PVD low maintenence finish
  • Brushed Steel finish
  • Over 200,000 operations from 4 x AA cells (provided)
  • Tamper time out and low battery warning
  • Connections for remote release by reception desk button
  • Alarm release included
  • Code Free entry
  • Lever handle lock for doors hung on the left or right
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Lock Prep: SFIC Prep
Backset: 2 3/4"

Specifications

    Brand Codelocks
    Buttons 3 x 4
    Code Change Method Keypad (On Door)
    Codes User Codes 4, 5 or 6 digits long
    Door Thickness 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
    Finish Brushed Steel
    Handed Non-Handed - Locks will fit doors hung on the left or right
    Keypad 12 Individual stainless steel buttons
    Latch Type Tubular Latchbolt
    Lock Material Zinc Alloy
    Low Battery Warning Red LED will flash on opening to indicate low battery
    Memory Stores up to 80 User Codes
    Operations Up to 200,000 per set of 8 x AAA batteries
    Orientation Vertical
    Power 4x AA
    Spindle Two part 5⁄16" (8mm) spring loaded spindle
    Suitable For Internal, External
    User Types Code
    Fire Rated 3-hour UL 10C
    Certifications Grade 2 ANSI A156.2 / A156.25, UL/ULC
