*Discontinued* CodeLocks - CL610 Gate Box Kit - Mechanical Lock - Heavy Duty - Tubular Latchbolt Gate Box Kit - Optional Finish - Grade 2
- $567.04
-
$680.45 - $567.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-98075 / CDL-97230
The CL610 and CL615 are heavy duty tubular mortise latch locks. The outside lever handle will retract the latch after a correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed.
Quick Code change!
The CL600 range incorporating the new Quick Code system allows on door code change in seconds. Typically most mechanical digital locks require the lock to be removed from the door or partly disassembled to change the code.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features:

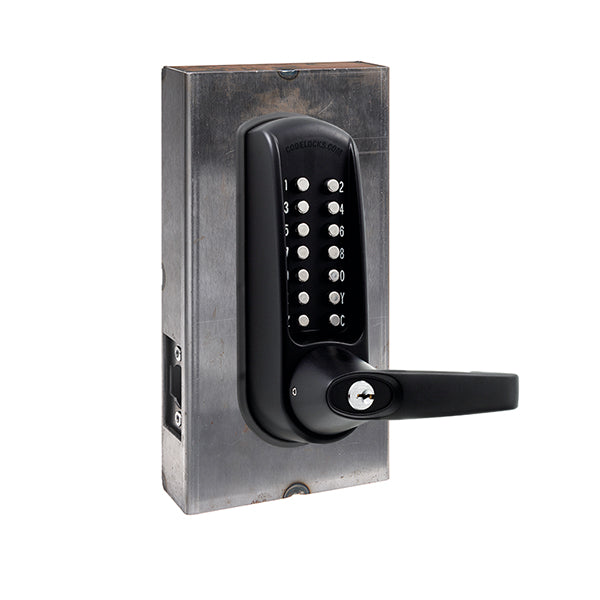

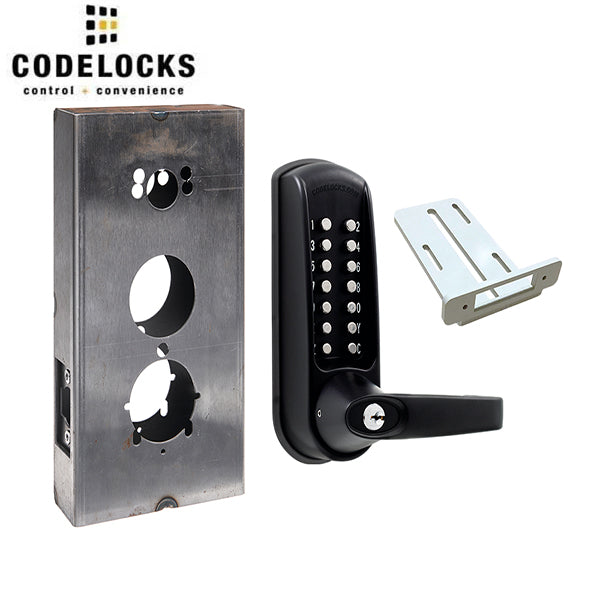

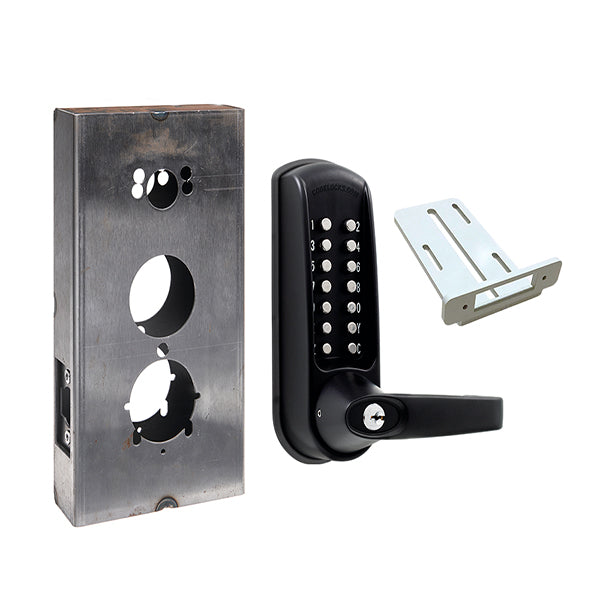

- Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Tubular Latchbolt
- Tested to Grade 2 - ANSI - A156.2
- 3-hour UL 10C certification
- Internal doors and external doors
- Quick Code change - no need to remove lock from door
- Mechanical Codelock
- Lever handle lock for doors hung on the left or right
- Available in brushed steel or marine grade black
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- $567.04
-
$680.45 - $567.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description

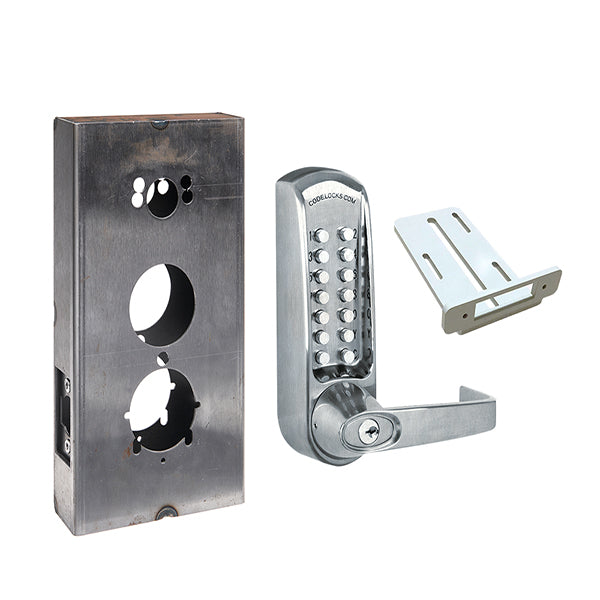

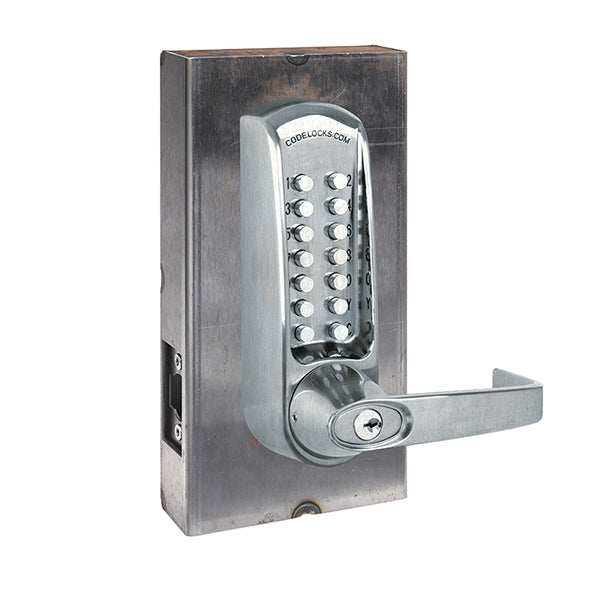

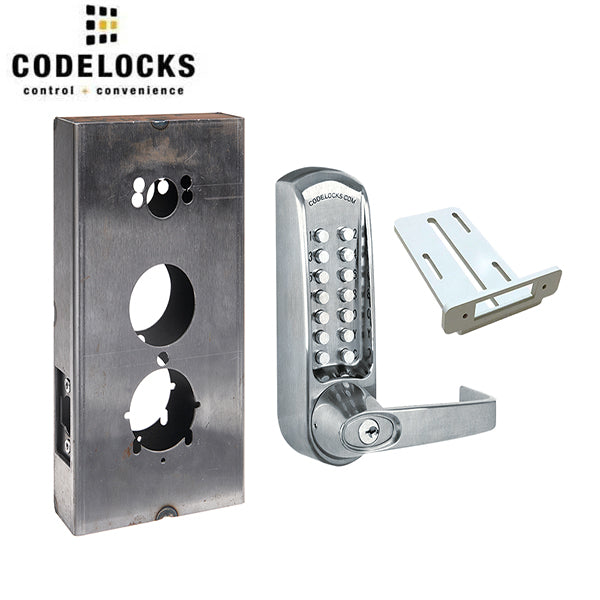

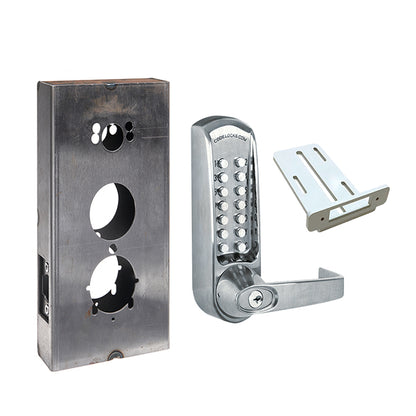

xGate Box Kit Components
- CL610 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications:
| Brand |
Code Locks |
| Gate Box Dimensions | 10.25” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons |
2 x 7 |
| Door Thickness | 1-3/4" 2-3/8" |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel, Marine Grade |
| Handed |
Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
