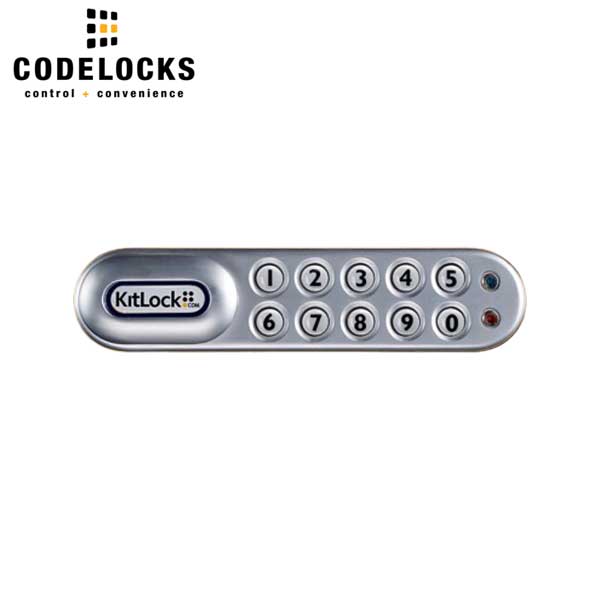

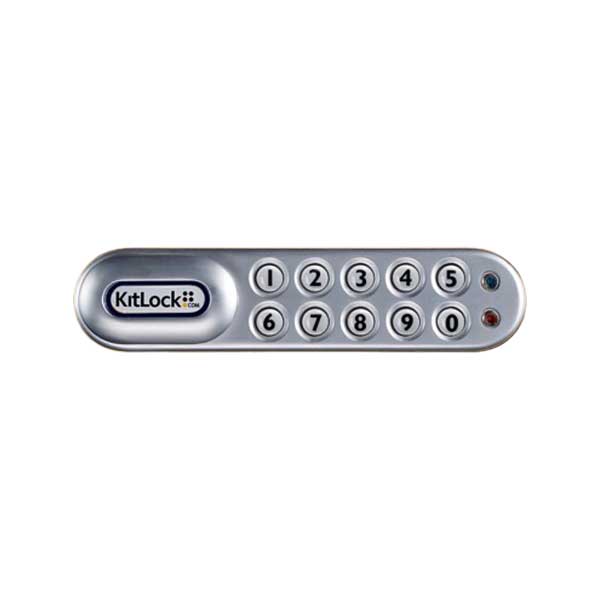

*Discontinued* Code Locks - KL1000 - Compact Digital Cabinet / Locker Lock - Horizontal - Right Handed
- $65.00
-
$78.00 - $65.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-KL1000-PS-SG-RH
The KL1000 is easy to fit, taking just a few minutes to remove the existing cam lock and making an additional top fixing. KL1000 Classic can also be fitted to a locker or cabinet that does not have an existing locking device - just drill another hole. Once in place, the lock will perform up to 15,000 openings on just two AAA batteries. Access control without the need for keys.
Features:
- Easy fit
- 11 individual round buttons
- 15,000 openings from 2 x AAA cells (supplied)
- Battery override
- Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
- Silver grey & black finishes available from stock
- Left, right, and vertical versions
- RAL color locks available on request, minimum order quantities apply
- IP55 rated when used with the rubber door gasket - a separate part
- Not suitable for a Chlorine environment
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- NetCode web-based code creation available (KL1000 NetCode)
- $65.00
-
$78.00 - $65.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xThe KL1000 Classic has 4 code levels available:
- 8 digit Master Code
- 8 digit Sub-Master Code
- 4 digit User Code
- 6 digit Technician Code
FEATURE | DESCRIPTION |
Operations | Up to 15,000 opening per 2 x 1.5 AAA batteries |
Battery Override | A 9-volt battery can be placed against external contacts |
Low Battery Warning | Red LED will flash on opening to indicate low battery |
Functions | Private and Public |
Buttons | 11 individual round buttons |
Material | Zinc Alloy |
Finish Color | Silver gray and black as standard |
Door Thickness | Ready to fit doors up to 1” (25mm) |
Memory | Non-volatile memory will be retained |
Installation | Easy to install and program |
Install Options | Vertical, right hand and left-hand models |
IP55 Rated | When used with rubber gasket (available separately) |
Crank Cam | Backset: 1 7 /16” (37mm) Overall Length: 1 3 /4” (45mm) |
Flat Cam | Backset: 1 1 /4” (32mm) Overall Length: 1 9 /16” (40mm) |
Slam Latch | Retrofit to existing KL1000 locks or purchase for new locks. Easy shutting. |
