*Discontinued* CodeLocks - KL1007 - Classic Electronic Kit Lock - Up to 1" Door Thickness - Locker Lock - No Pre-Assembly - Optional Handing - Optional Finish

*Discontinued* CodeLocks - KL1007 - Classic Electronic Kit Lock - Up to 1" Door Thickness - Locker Lock - No Pre-Assembly - Optional Handing - Optional Finish

Discontinued
SKU CDL-KL1007-SG NSID 48733
$78.47
Finish
Handing

CDL-KL1007

This neat lock is easy to fit, taking just a few minutes to remove the existing cam lock and making an additional top fixing. KL1000 Classic can also be fitted to a locker or cabinet that does not have an existing locking device - just drill another hole. Once in place the lock will perform up to 15,000 openings on just two AAA batteries. Access control without the need for keys. Features Private and Public functions.

Custom Packed with 1 1/8” Spindle to fit 1” Thick Material.

Features:

  • Easy fit
  • Up to 1" Door Thickness
  • 11 individual round buttons
  • 15,000 openings from 2 x AAA cells (supplied)
  • Battery override
  • Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
  • Left, right and vertical versions
  • RAL colour locks available on request, minimum order quantities apply
  • IP55 rated when used with the rubber door gasket - separate part
  • Not suitable for a Chlorine environment
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
View full details

Details

 Private Function

This is the most common function and used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.

Public Function

In this function the KitLock operates with a single User Code. The user enters their own personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user. This function is used for short term, multi occupancy applications, e.g. a locker in a leisure center.

Specifications:

    Brand
    		 KitLock by Codelocks
    Battery Override A 9 volt PP3 battery can be placed against external contacts
    Code Change Method Keypad (On Door)
    Buttons 2 x 5 + Programming
    Door Thickness
    		 Ready to fit doors up to 1"
    Finish

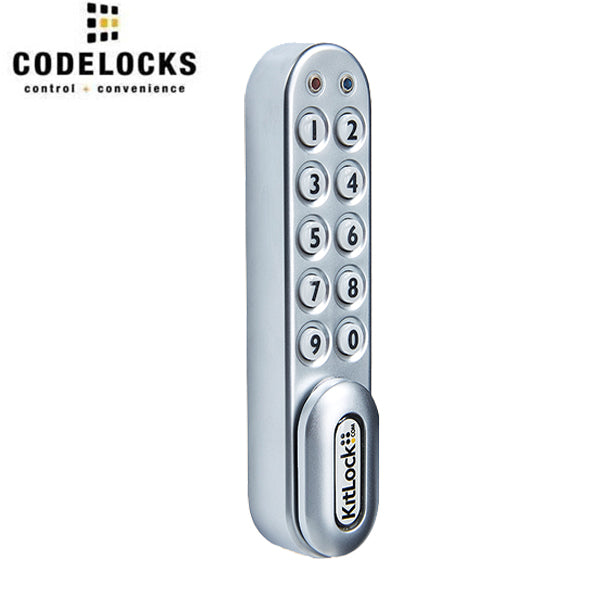

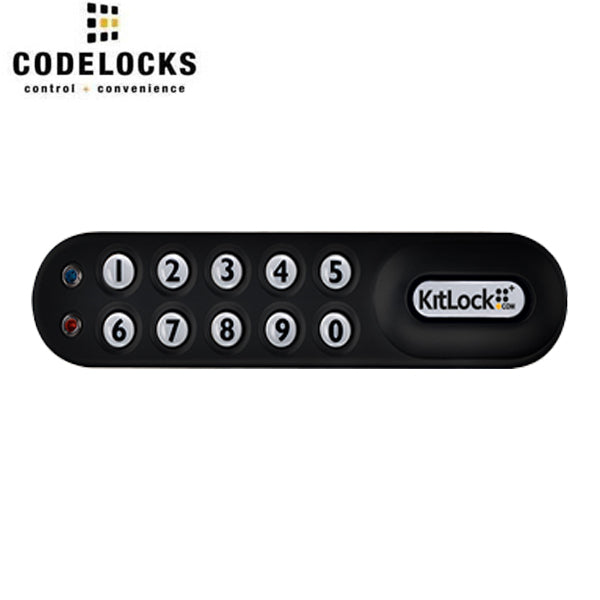

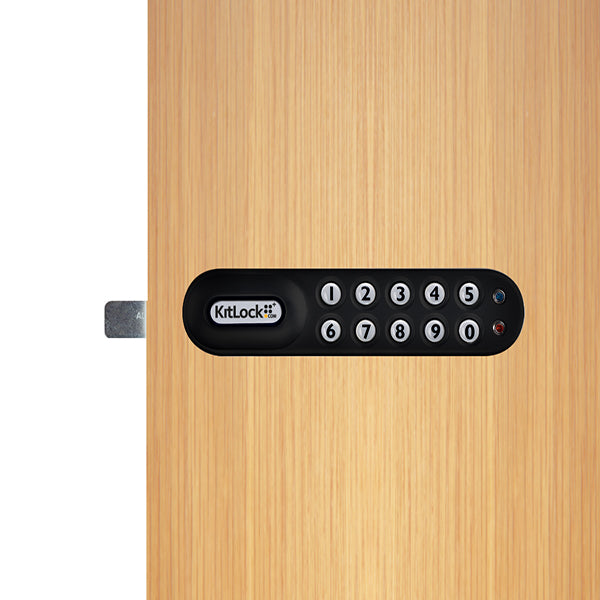

    		 Silver, Black
    Functions
    		 Private, Public
    Keypad 11 individual round buttons
    Lock Dimensions 5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
    Low Battery Red LED will flash on opening to indicate low battery
    Latch Type
    		 Cam
    Memory
    		 Non-volatile memory will be retained
    Operations
    		 Up to 15,000 opening per 2 x 1.5 AAA batteries
    Power 2x AAA
    Orientation

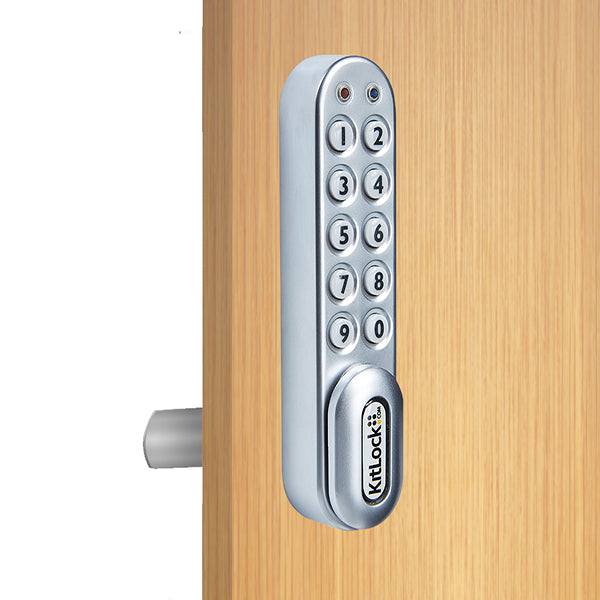

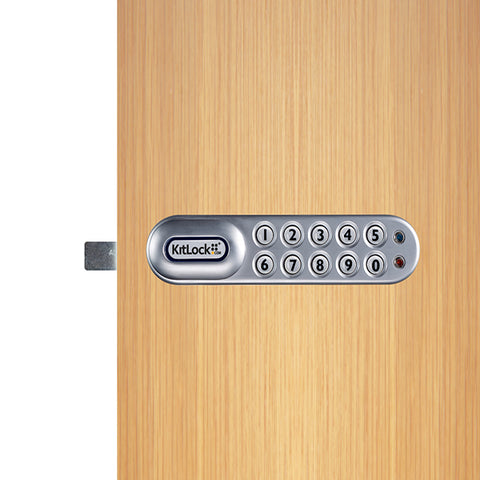

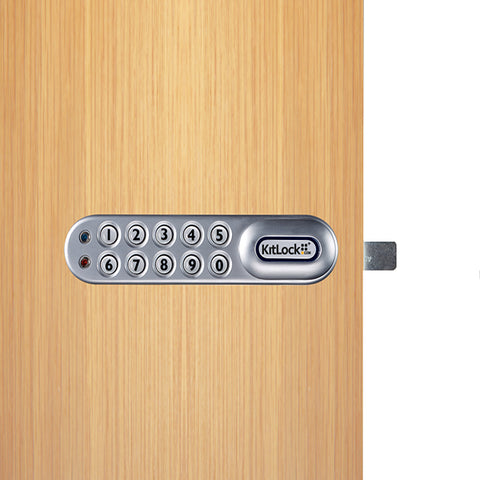

    		 Vertical, Left Handed, Right Handed
    Suitable For
    		 Internal, External
    User Levels
    		 Master, Sub Master, Technician, Standard User
    User Types
    		 Code
