*Discontinued* CodeLocks - KL1100 - Electronic KitLock - RFID Locker Lock w/ Powered Latch - Optional Finish

*Discontinued* CodeLocks - KL1100 - Electronic KitLock - RFID Locker Lock w/ Powered Latch - Optional Finish

Discontinued
SKU CDL-KL1100-GB-RFID NSID 48704
$106.07$127.28On Sale You save $21.21 (17%)
Finish

CDL-KL1100

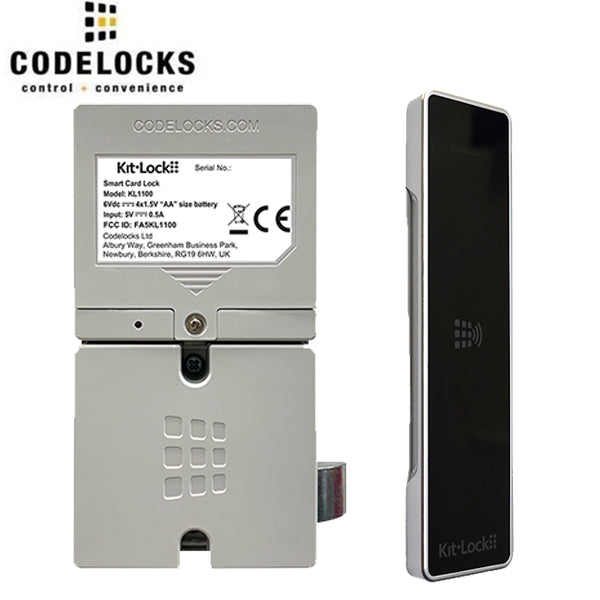

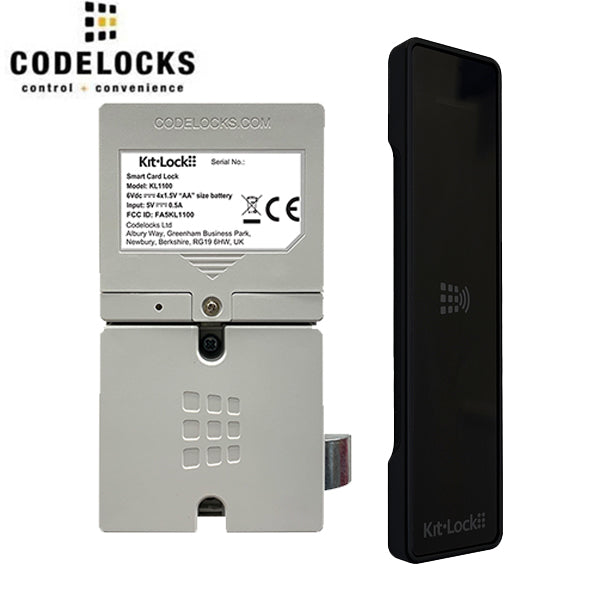

Featuring a stylish, slimline front plate the KL1100 RFID gives any environment a modern, contemporary feel.

Choose between offline or cloud based software options to configure your locks and cards. The KL1100 RFID is perfect for applications with a large quantity of lockers that would benefit from issuing and managing Card Clients from reception desks, for example, gyms, leisure centres, hospitals, hotels, schools and universities.

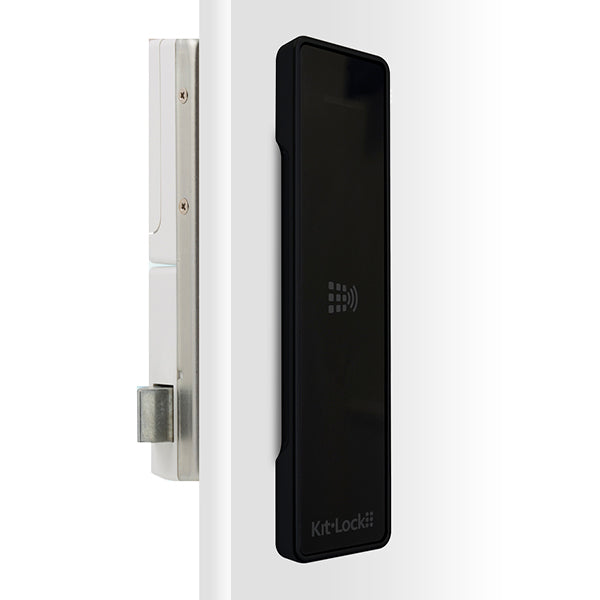

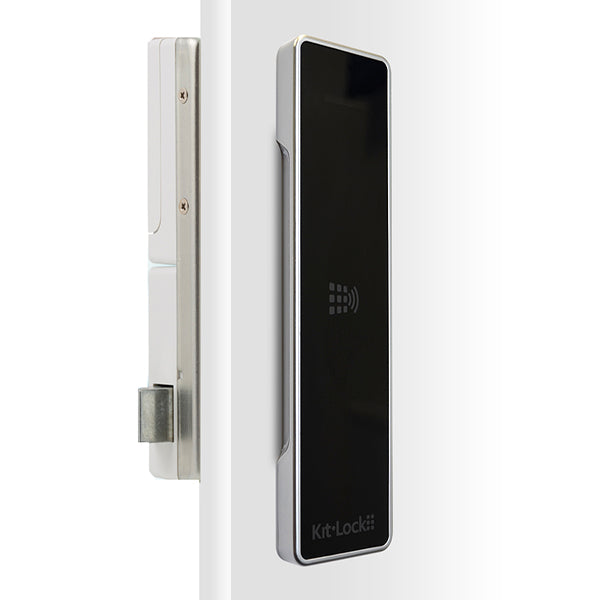

The KL1100 RFID is easy to install, operate and manage, featuring a powered latch enabling intuitive ‘push shut’ closing. Available in a Metallic Silver or Gloss Black finish.

Features:

  • Master Card
  • Technician Card
  • Standalone Mode
  • RCA (Remote Card Authorization) Mode via offline or cloud based software
  • Local management via plug-in Keypad Programmer (sold separately)
  • Date and time based features
  • Powered latch
  • Battery override
  • Override code
  • MIFARE® Classic 1k compatible cards, fobs or wristbands can be used
  • Optional pull handle available for compliance with the Americans with Disabilities Act (ADA) (sold separately)
View full details

Details

Standalone Mode

Standalone Mode requires a Keypad Programmer (sold separately) for adding/removing cards and managing functions of the lock.

RCA Mode

Remote Card Authorisation (RCA) Mode offers remote management allowing Card Clients to be authorised via a PC using offline or cloud based software and a USB Card Reader (sold separately)

Specifications:

    Brand
    		 KitLock by Codelocks
    Battery Override Connect to 5V micro USB power source for temporary power
    Door Thickness
    		 Ready to fit doors up to 1" (25mm)
    Finish
    		 Gloss Black, Metallic Silver
    Functions
    		 Private, Public
    Lock Dimensions 5 3⁄4" (H) x 1 1⁄2" (W) x 1⁄2" (D)
    Low Battery Red LED will flash 3 times before unlocking
    Latch Type
    		 Powered Latch
    Memory
    		 Non-volatile memory - programming will be retained
    Operations
    		 Up to 100,000 operations
    Power 4 x 1.5 volt AA batteries (supplied)
    Orientation
    		 Vertical
    Suitable For
    		 Internal
    Clients - Smart Cards Master, Technician, User, Initialization, Block and Audit - Supports MIFARE® Classic 1k
    User Types
    		 Card
