CodeLocks - CL290 - Mechanical Lock - Light Duty - Dual Backset Deadlatch 2 3/8" - 2 3/4" Mortise Tubular Latchbolt - Double Sided - Key Override - Optional Finish - Fire Rated - Grade 2
In Stock
SKU:
CDL-CL290KBB-SS
NSID:
48768
48769
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $171.74
-
$240.00 - $171.74
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL290
The CL290 is a light duty mortise latch with dual backplate. The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch. The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational).Function can be disabled on installation requiring code to be entered every time to open door.
Features
- Key Override: Allow Locks to be overridden via a key.
- Optional Marine Grade Finish: The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours*.
- Double Sided: Two coded plates for installation on both sides of the door.
- Mechanical Codelock
- Light duty mortise latch with dual backplate
- Hexagonal beveled handle and lock case

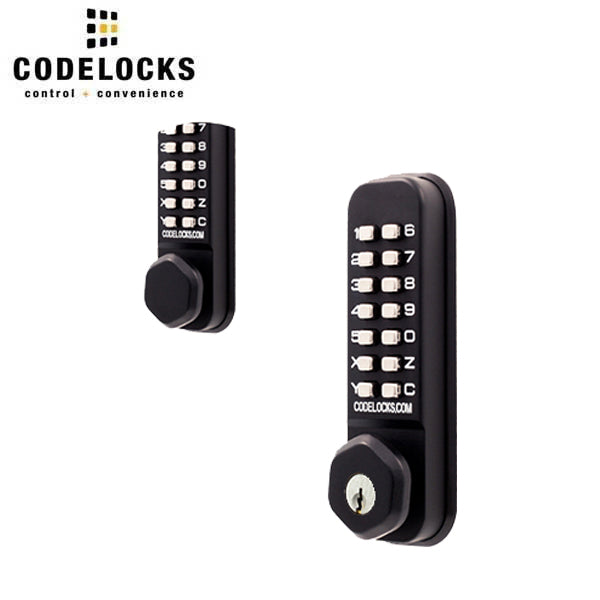

- Available in stainless steel, marine grade black
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Following the success of the mechanical marine grade lock range and due to high customer demand, Codelocks have further expanded the Marine range.
As well as existing CL200, CL400 and CL500 lock models, the expansion to the range now includes selected locks from the CL600 mechanical range, offering the benefits of on-the-door code changes, key override and full size lever handles.
The Marine by Codelocks mechanical lock range have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing*.
| Brand | Codelocks |
| Buttons | 2 x 7 |
| Code Change Method | Keypad (On Door) |
| Codes | 8,191 non sequential code combinations available |
| Code Storage | Single Code |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Stainless Steel / Black |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 14 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Spindle | Flat spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
Dual Backset Deadlatch
