CodeLocks - CL415 Gate Box Kit - Mechanical Lock - Medium Duty - Tubular Latch Bolt Gate Box Kit - Double Sided - Passage Function - Stainless Steel
Available to Order
SKU:
CDL-97922
NSID:
48647
- $439.02
-
$517.80 - $439.02
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

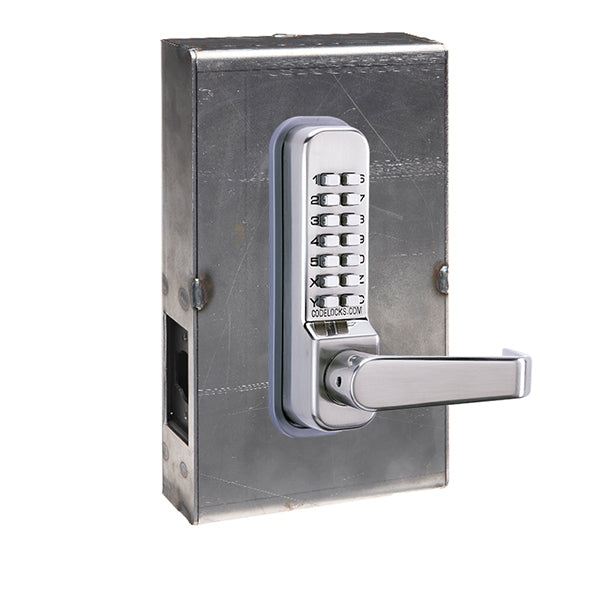

The CL415 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.
Features:
- Code Free Passage Mode Function: The CL415 models provide a passage function. These models feature a black dot on the ‘Y’ button. When the ‘Y’ button is pressed along with a correct code input, the lever will retract the latch freely until disabled.
- Double Sided: Allows for coded entry on both sides
- Internal doors and external doors
- Mechanical Codelock
- Medium duty tubular latch bolt
- Lever handle lock for doors hung on the left or right
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Complete kit with all required components
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Easy, effective gate and fence installation
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home

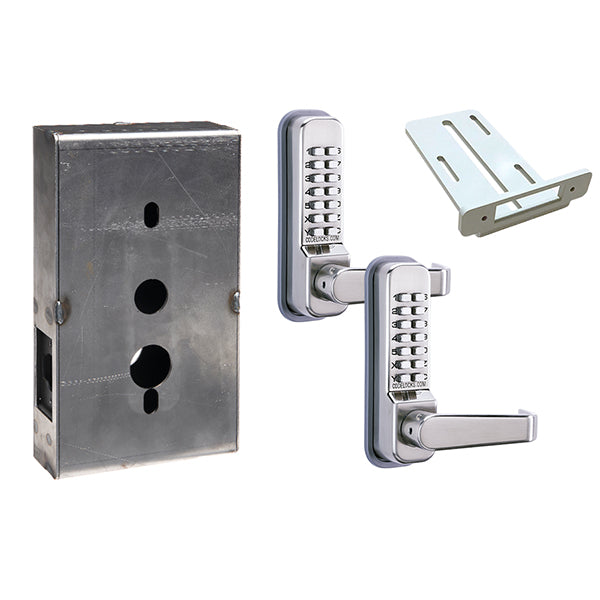

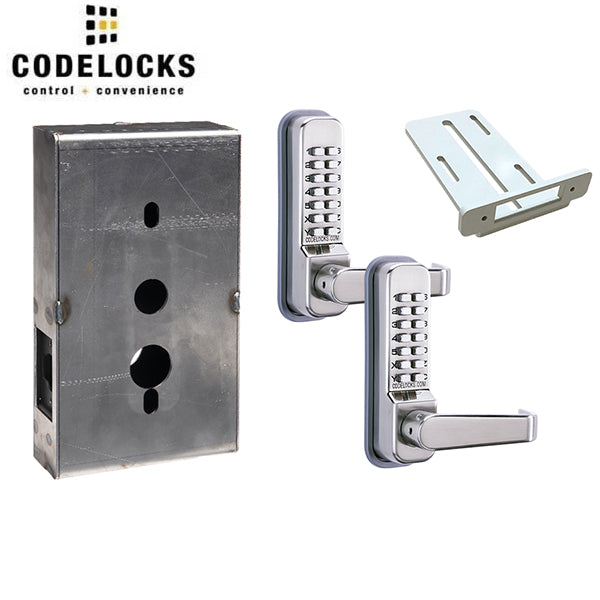

Gate Box Kit Components
- CL415 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
| Brand |
Code Locks |
| Gate Box Dimensions | 9.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons |
2 x 7 |
| Code Change Method |
Tumblers (Off door) |
| Codes |
Single code storage - 8,191 non-sequential combinations available |
| Material | Zinc Alloy |
| Finish Color | Stainless Steel |
| Handed |
Non-handed |
| Keypad |
14 Stainless Steel Buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Lock Dimensions | 177mm (7") x 48mm (1 ⅞) |
| Orientation | Vertical |
| Manufacturer Warranty | Limited Lifetime Warranty |
