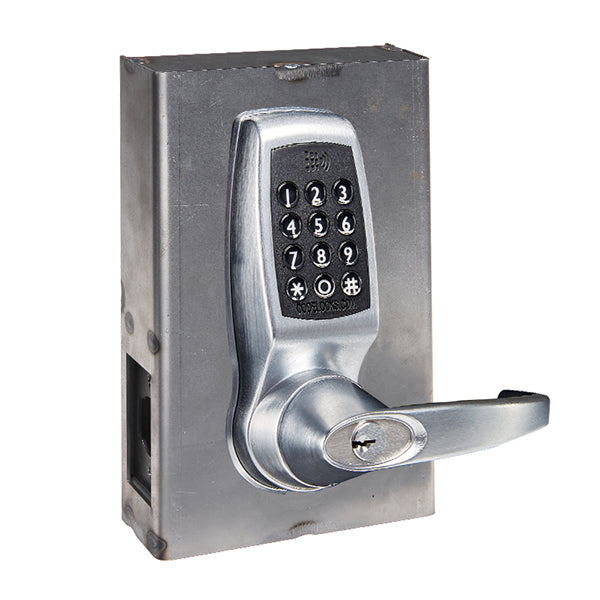

CodeLocks - CL4510 Gate Box Kit - Electronic Smart Lock - Tubular Latch Bolt Gate Box Kit - Entrance - Brushed Steel
- Product SKU: CDL-91574
- NSID: 48629
-
CDL-91574
The CL4510 Smart Lock offers advanced programming and access methods, as well as simple retrofit opportunities for easy upgrades from the CL4000 range. Managing and operating locks has never been easier. Codelocks Smart Locks and the KitLock KL1000 NetCode utilise technology that allows you to create date and time-sensitive temporary access codes: NetCodes. NetCodes can be generated quickly and easily via the K3 Connect App, and can be easily shared. Ideal for visiting service engineers, delivery personnel and short / medium-term locker rental.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features:
- Manage and operate locks via smartphone
- Keyless entry - no lost keys
- 12 button back-lit keypad
- NetCode generation technology
- Set up to 10 Code Free access periods
- Suspend and restore any or all clients
- Keypad indicates locked / unlocked status
- Tamper time out and low battery warning
- Personal wireless connectivity for management
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Simple upgrade from electronic range using same fixings
- Auxiliary connections enabling four modes of operation

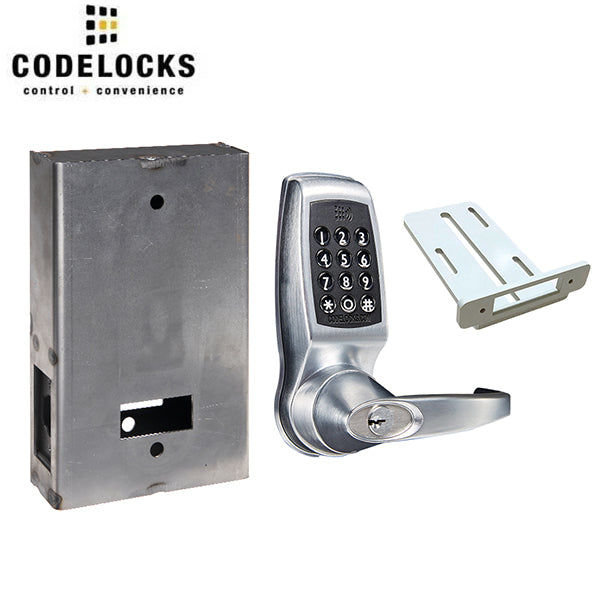

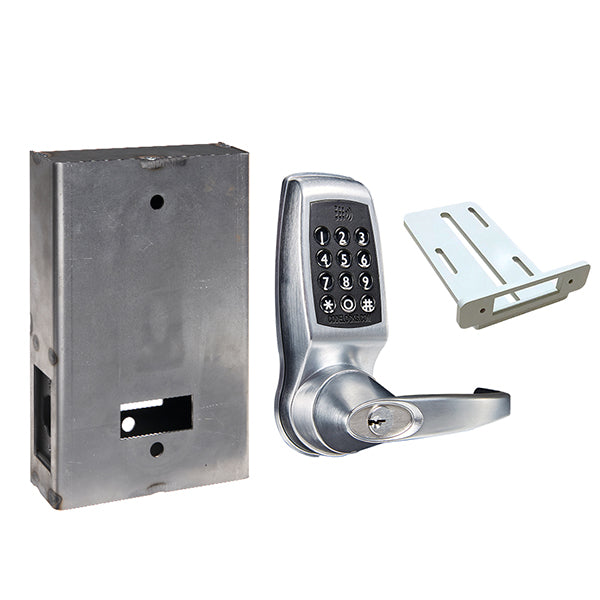

Gate Box Kit Components
- CL4510 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications:
| Brand |
Codelocks |
| Gate Box Dimensions | 8.5” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons |
3 x 4 |
| Clients – Smart Cards |
Up to 150 Client Smart Cards |
| Clients – Smart Phones |
Up to 100 Phone Clients |
| Clients – User Codes | Up to 100 Client User Codes |
| Code Change Method | Smartphone App |
| Codes | 4 Digit User Codes |
| Finish | Brushed Steel |
| Handed |
Non Handed |
| Keypad | 12 button back-lit keypad |
| Latch Type | 70mm Tubular Latch |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores 350 different Clients |
| NetCode | Available via the App or online Portal |
| Operations | 10,000 operations from 4 x AA batteries |
| Power | 4x AA |
| Spindle | Two part 8mm (5⁄16") spring loaded spindle |
| Supported Cards | MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3 |
| User Levels | Master, Sub Master, Standard User |
| User Types | Code, Card, Smartphone, NetCode |
| Warranty | Limited Lifetime |
