CodeLocks - CL5210 Gate Box Kit - Electronic Door Lock - Tubular Latchbolt Gate Box Kit - Double Sided - Brushed Steel - Fire Rated - Grade 2
Available to Order
SKU:
CDL-96155
NSID:
48627
- $580.42
-
$1,031.86 - $580.42
- Unit price
- per

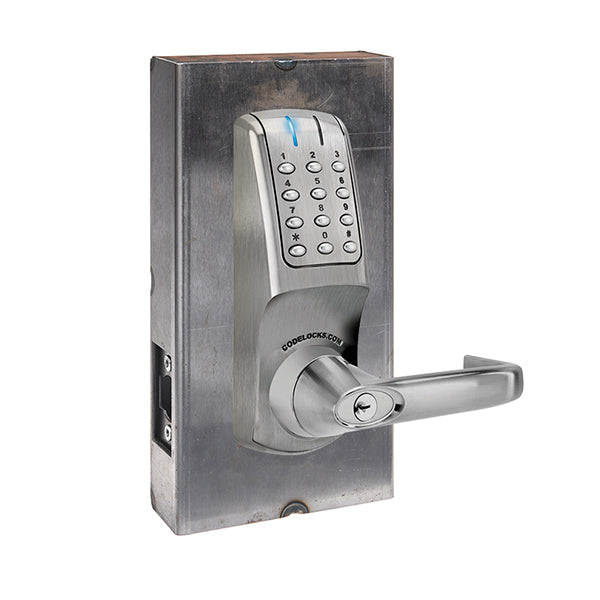

The CL5210 has a conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions. Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door. Particularly suitable for use in health, educational, commercial and residential environments.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features
- 3-hour UL 10C certification
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenence finish
- Brushed Steel finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable strike bracket with U-bolt fastener
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- $580.42
-
$1,031.86 - $580.42
- Unit price
- per

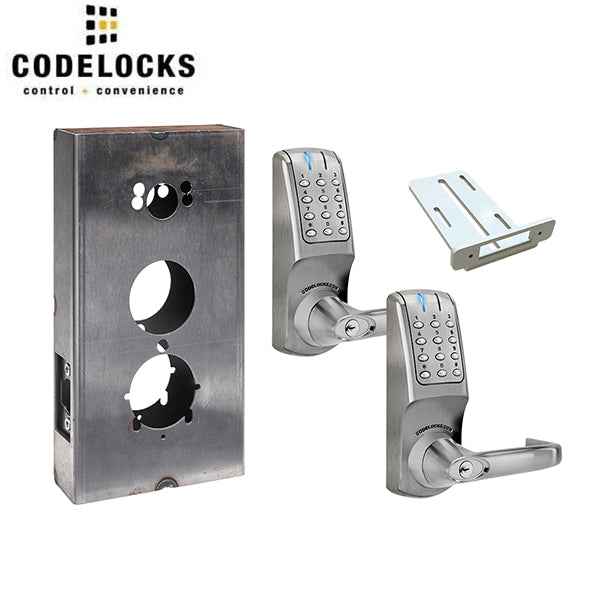

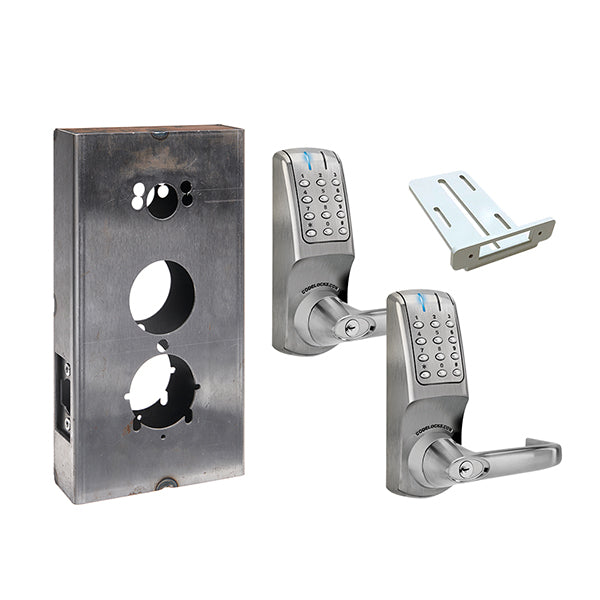

Gate Box Kit Components
- CL5210 Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- 16-gauge steel, adjustable latch bracket
Specifications
| Brand | Codelocks |
| Gate Box Dimensions | 10.25” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 12 Individual stainless steel buttons |
| Latch Type | Tubular Latchbolt |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 8 x AAA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
