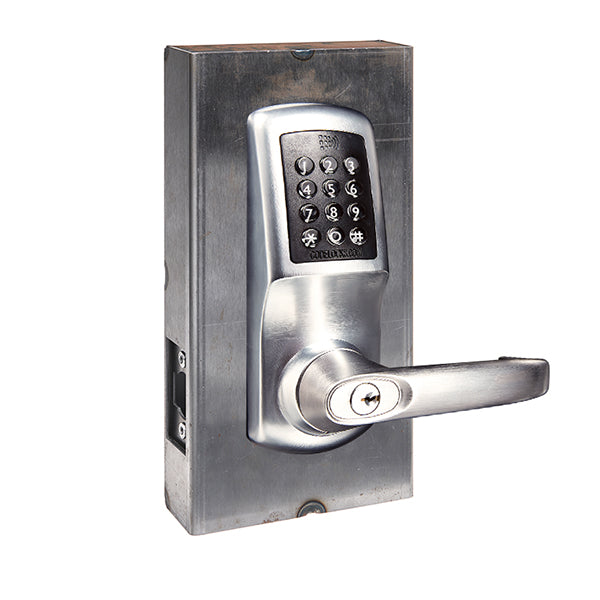

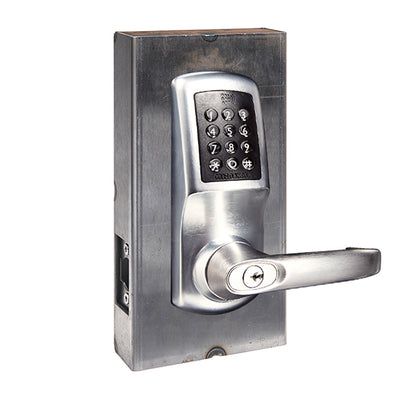

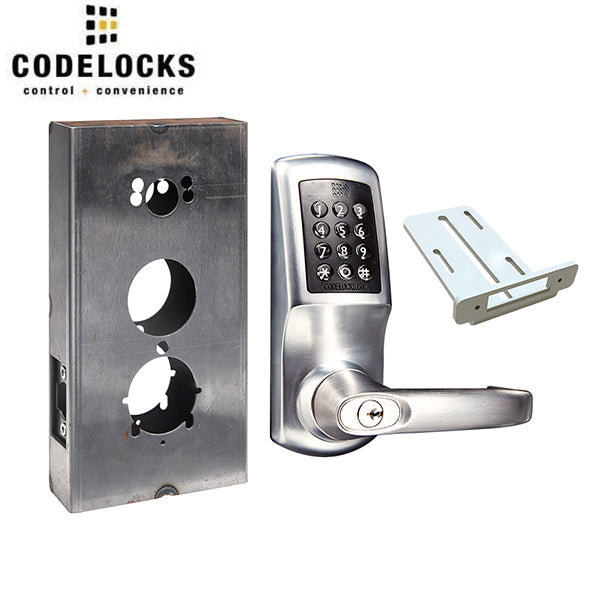

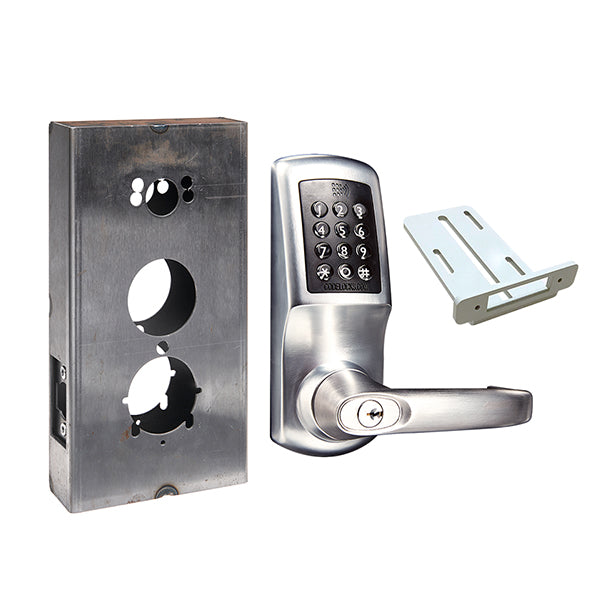

*Discontinued* CodeLocks - CL5510 Gate Box Kit - Electronic Smart Lock - Medium Duty - Tubular Latch Bolt Gate Box Kit - Passage Mode - MIFARE - Bluetooth - Brushed Steel - Grade 2
*Discontinued* CodeLocks - CL5510 Gate Box Kit - Electronic Smart Lock - Medium Duty - Tubular Latch Bolt Gate Box Kit - Passage Mode - MIFARE - Bluetooth - Brushed Steel - Grade 2
CDL-93860
The new CL5510 Electronic Smart Lock ANSI Grade 2, makes access control easier, offering flexibility and convenience by providing a range of entry methods including the use of pushbutton code, smart card, or smartphone, enabling users to choose the most suitable access method. It utilizes wireless technology to give building managers the ability to program locks via a smartphone, generate and send entry codes for easy access and issue smart cards for alternative entry.
Operate and manage directly via the keypad or via a compatible smartphone by downloading the K3 Connect App*. Program locks via your smartphone, generate and send codes for easy access, issue smart cards for alternative entry, track, and control with an audit trail.
The smart lock supports up to 350 users, with 100 client user codes, 100 phone clients, and 150 client smart cards as an alternative entry option. By installing the K3 Connect App* on a smartphone, all aspects of the lock can be managed conveniently, from updating basic settings to creating multiple individual access periods. It is iOS and Android compatible.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Details
Entry can be tightly controlled and monitored by issuing NetCodes, which are generated and sent via email and SMS. The codes can be created with a specific start date and time that automatically expire after a set duration. The ability to offer keyless entry removes the hassle of storing, issuing, and replacing keys. Audit trails allow building managers to keep track of when and where the lock was accessed. The full lock audit trail data can be downloaded and viewed at any time.
Controlling locks is now even more convenient with the CL5510.
Features:
Manage with the K3 Connect App*
The lock can be managed with the K3 Connect App by any Bluetooth™ compatible smartphone. The App is available on Apple App Store for Apple devices or Google Play™ for Android™ devices by searching for K3 Connect. Controlling locks has never been so convenient. Manage all aspects of your lock from your smartphone.
Code Card Phone
Multiple access. The locks provide flexibility and convenience by providing a range of entry methods. Allow Clients access via a simple code, allocate and register a MIFARE® compatible card or send an invitation to their phone.
Controlled Code Free
Allow access at set times of day by setting the lock into Code Free mode. Removes the hassle of unlocking doors for free access periods. Reduce the administration burden of manually putting locks into Code Free mode.
NetCode
Control Entry. Set codes for a specific start date and time and that automatically expire after a set duration. Send these set codes via email or SMS. Discover NetCode >
Audit Trail
Keep track of when and where the lock was accessed. Download and view the full lock audit trail data.
Auxiliary Connections
The CL5510 locks include two auxiliary connectors (REM Ports). Traditional behavior of these ports allows reception desk remote opening (REM 1) and alarm panel trigger to open (REM 2). The REM behavior also enables the lock administrator to select between four different modes of operation; Remote Release, Sensor Mode, Sensor + Alert and Unlock + Lock Down
| Brand | Codelocks |
| Gate Box Dimensions | 10.25” (H) x 5.5” (W) x 1.75” (D) |
| Gate Box Material | 14-gauge steel |
| Buttons | 3 x 4 |
| Clients – Smart Cards | Up to 150 Client Smart Cards |
| Clients – Smart Phones | Up to 100 Phone Clients |
| Clients – User Codes | Up to 100 Client User Codes |
| Code Change Method | Keypad (On Door) |
| Codes | 4 Digit User Codes |
| Finish | Brushed Steel |
| Function | NetCode |
| Handed | Non-Handed - Locks will fit doors hung on the left or right |
| Keypad | 12 button backlit keypad |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores 350 different Clients |
| NetCode | Available via the App or online Portal |
| Operations | 10,000 operations from 4 x AA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two-part 8mm (5⁄16") spring-loaded spindle |
| Suitable For | Internal, External |
| User Levels | Master, Sub Master, Standard User |
| User Types | Code, Card, Smartphone, NetCode |
