Command Access

Command Access - Power Transfer Hinge Door Loop - Concealed - 6" Length - Aluminum

Command Access - Power Transfer Hinge Door Loop - Concealed - 6" Length - Aluminum

In stock
SKU CAT-CDL-AL NSID 22040
$27.06$32.47On Sale You save $5.41 (17%)
Get it shipped Today! Order within:

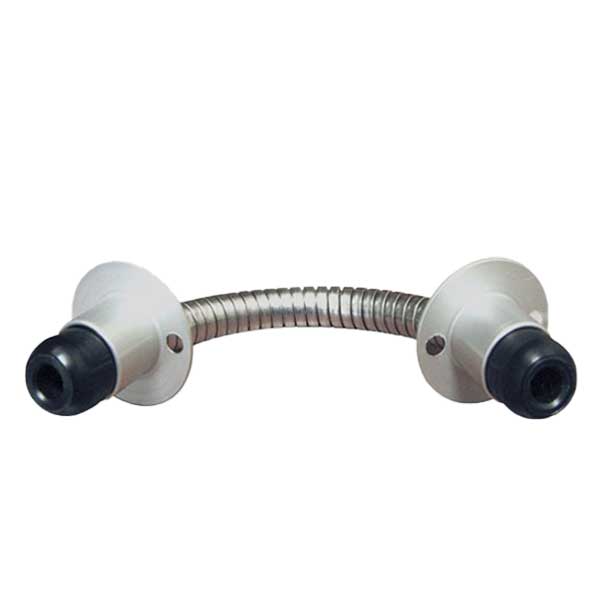

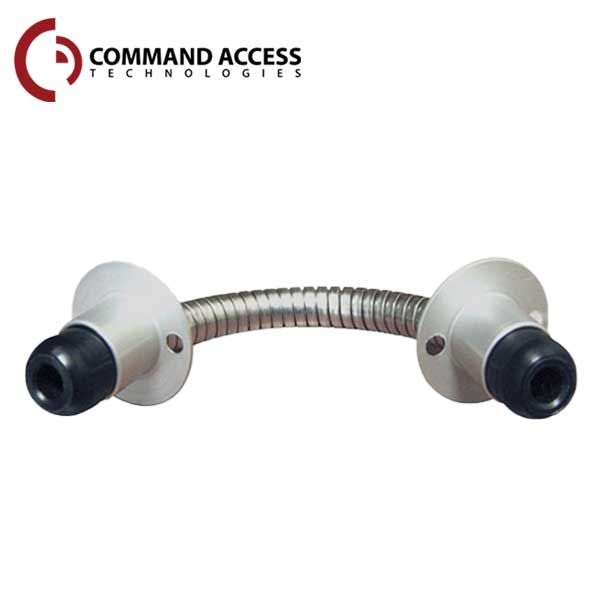

This patented Concealed Door Loop (CDL) is a low cost method of transferring low voltage power from the door frame to the locking device. Whereas typical door loops are surface mounted and remain constantly visible, the CDL slides into the door and/or frame completely concealing itself when the door is closed.

Features:

  • Designed for continuous or butt-hinge applications that are either full mortise, half-mortise, or half-surface and have a standard throw.
  • Available in durable aluminum finish
  • Easy Installation
  • Variable mounting locations
  • Special 1/4” flexible armored conduit
  • Supports up to 180° swing


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Construction: Special 1/4” flexible armored conduit
Dimensions: 6” x 4”: x .5”
Hole Diameter: 5/8” wide with 6" of total length
Finish: Aluminum Finish
Fits: Up to 2-12GA Wires
Swing: Supports up to 180° swing
Warranty: 3-Year Manufacturer Warranty
