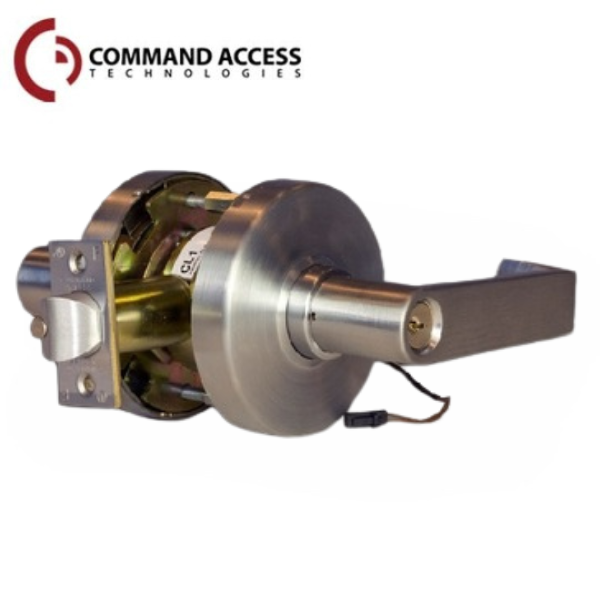

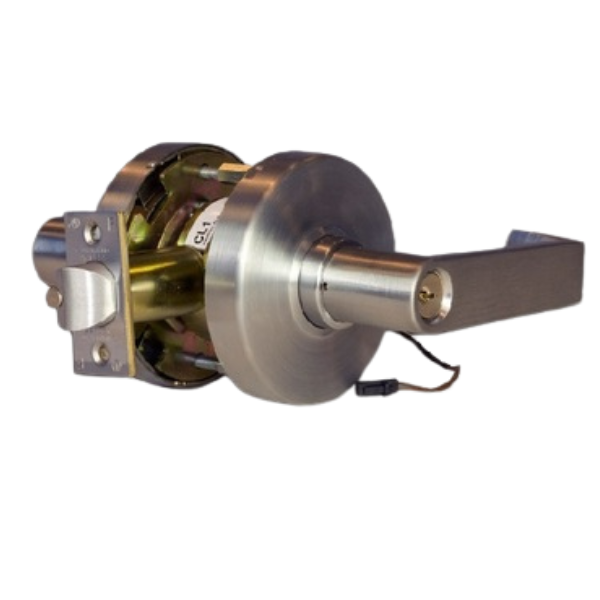

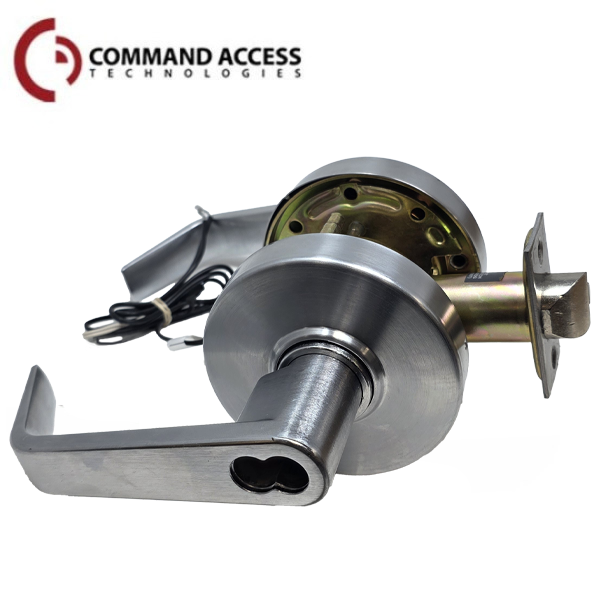

This Command Access CL180 EL L6 12V 626 SFIC Electrified Cylindrical Lock is designed for durability, security, and versatile application. Its fail-safe operation makes it suitable for environments requiring continuous power to unlock in emergencies, such as commercial buildings or institutional settings.
Features:
- Function: Fail-safe with Request to Exit (REX) capability.
- Voltage: Operates at 12V (AC/DC), with a low current draw for efficiency.
- Material and Finish: Satin Chrome (626/US26D) for a sleek and professional look.
- Backset: Standard 2-3/4 inches.
- Cylinder Type: Prepared for Small Format Interchangeable Core (SFIC), sold without a core.
- Lever Style: L6 design, ergonomically crafted for ease of use.
- Latch and Strike: Guarded latch with an ASA strike plate (1-1/4" x 4-7/8").
- Power: Hardwired for reliable operation with a continuous-duty solenoid.
| Specs: | Details |
|---|---|
| Finish | Satin Chrome |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Keyway | Schlage C |
| Function | Fail-Safe w/REX |
| Strike | ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner |
| Cylinder Type | Conventional Cylinder |
| Finish Description | Satin Chrome |
| Lever Style | L6-Bent |
| Keyblank Grouping | SCHL-C-6-1 |
| Rose/Escutcheon Trim | Round Rose |
| Keying Charges | CCAM |
| Product Type | Electronic Cylindrical Lock |
| Series | CL Series |
| Voltage | 12V (AC/DC) |
| Power Consumption | 3W |
| Warranty | 3 year |
| Color Code | 626/US26D |
| Finish Family | Satin Chrome |
| Standards | UL Listed |
| Function Family | Fail-Safe |
| Features | Request to Exit; Continuous Duty Solenoids Allow for "Continuously On" Applications Such as Fail Safe or An Unlock Cycle; Plug-in Bridge Rectifier; Low Current Draw Clutching Lever; Available SFIC |
| Lock Type | Fail-Safe |
| Amperage | 250mA @ 12V |
| Manufacturer Parent | Command Access |
| Resistance Properties | 49 ohm |
| Sub-Series | CL180-EL-L6-12-626-REX |
