Command Access - Electrified Latch Retraction Kit - For Adams Rite 82 / 84 / 86 / 88 series - 2/18 Gauge - 22 to 28 VDC
In Stock
SKU:
CAT-MLRK1-AR
NSID:
22064
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $365.98
-
$325.35 - $365.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

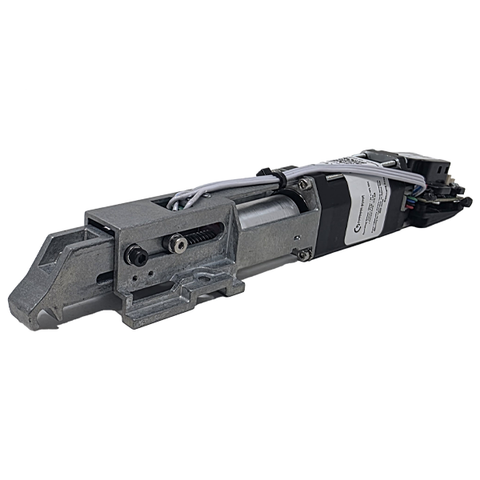

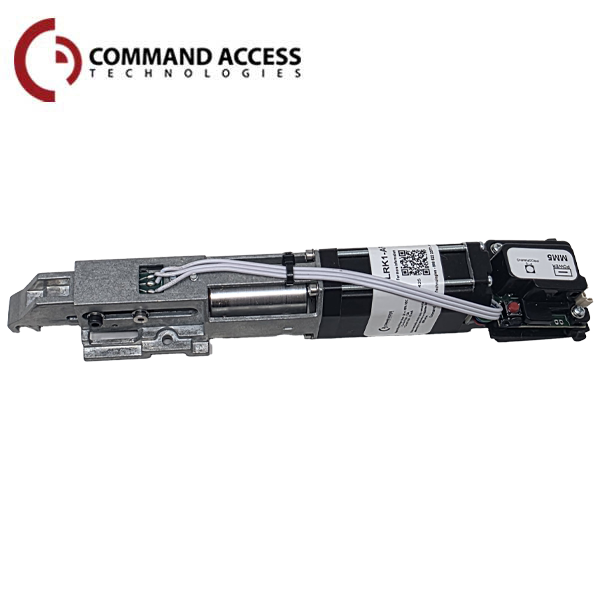

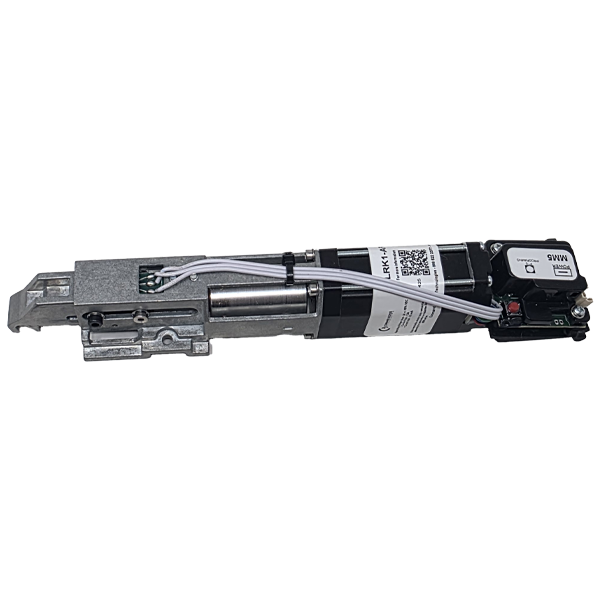

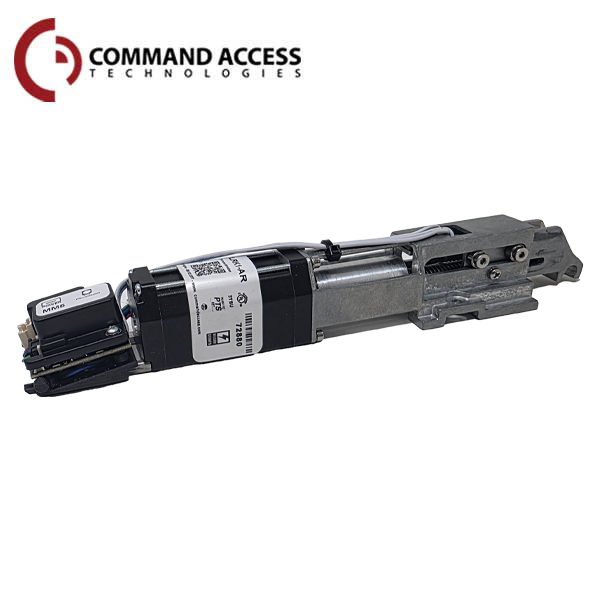

The Command Access MLRK1-AR is a cost-effective and straightforward way to upgrade your Adams Rite 82 / 84 / 86 / 88 series device to motor-driven latch retraction in the field. Comes with a robust, ground breaking field installable motorized latch retraction kit for Adams Rite 8000 series exit devices. The only hole you’ll need to drill is the raceway! It utilizes our PTS “Push to Set” technology making post-installation adjustments incredibly easy. This next generation offers an overall simplified installation!
Features:
- Next Generation MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- “PTS”: 5 second electronic adjustment for easy post installation adjustment
- Electric dogging rated for continuous duty
- Low Current Draw - Field switchable to “High Torque” mode
- Up to 300’ wire run with 2-18ga wire
- 8’ cable with Quick Molex Connect for MM4 module to easily connect to power supply lead
Specifications:
| Function: | Converts a mechanical Adams Rite 82 / 84 / 86 / 88 series device to an electrified latch pullback device. |
| Voltage Range: | 22 to 28 VDC |
| System Protection: | Unit shuts down when voltage exceeds 28VDC |
| Standard - Average Current Peak: | 1.3A |
| Standard - Average Current Hold: | 170mA |
| High Torque - Average Current Peak: | 2A |
| High Torque - Average Current Hold: | 250mA |
| PTS adjustment: | approx. 1/4” |
| Wire Run: | 300’ with 18ga wire |
| Device Cutdown Details: | 36” - 1” / 42” - 7” / 48” - 5.5” |
| Certifications: | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
