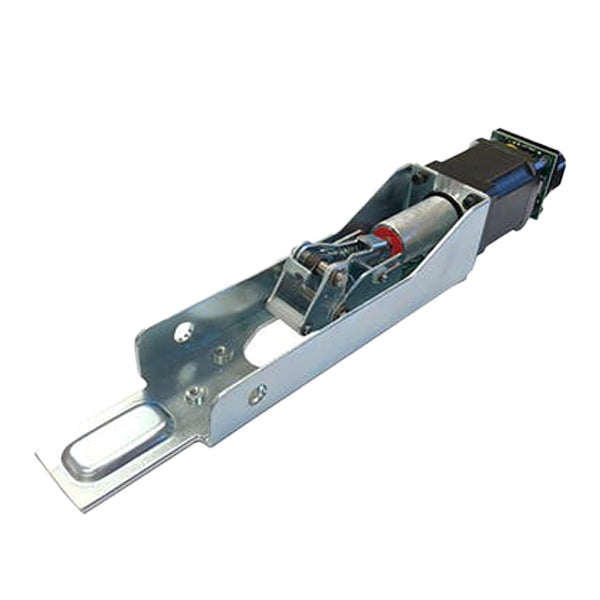

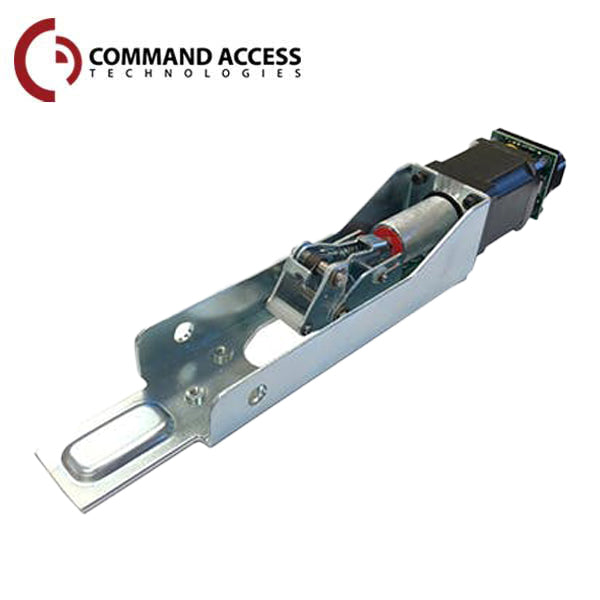

Command Access - Electrified Latch Retraction Kit - For Dorma 9000 Series Exit Devices - 18 Gauge - 24V +/- 10% VDC
In Stock
SKU:
CAT-MLRK1-DOR
NSID:
32799
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $346.42
-
$415.70 - $346.42
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Command Access MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done!
Features:
- MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- “PTS”: 5-second electronic adjustment for easy post-installation adjustment
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
- Low Current Draw - Field switchable to “High Torque” mode
- Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
- 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
Specifications:
| Function: | Converts a mechanical Dorma 9000 series exit device to an electrified latch pullback device. |
| Voltage Range: | 24 +/- 10% VDC |
| System Protection: | Unit shuts down when voltage exceeds 28VDC |
| Standard - Average Current Peak: | 900mA |
| Standard - Average Current Hold: | 215mA |
| PTS adjustment: | approx. 1/4” |
| Wire Run: | 300’ with 18ga wire |
| Built-in REX: | SPDT rated at .5A @ 24V Green (C) - Blue (NO) - Gray (NC) |
| Device Cutdown Details: | 36” & 48” at least 1” of filler plate |
| Certifications: | UL Listed a 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
