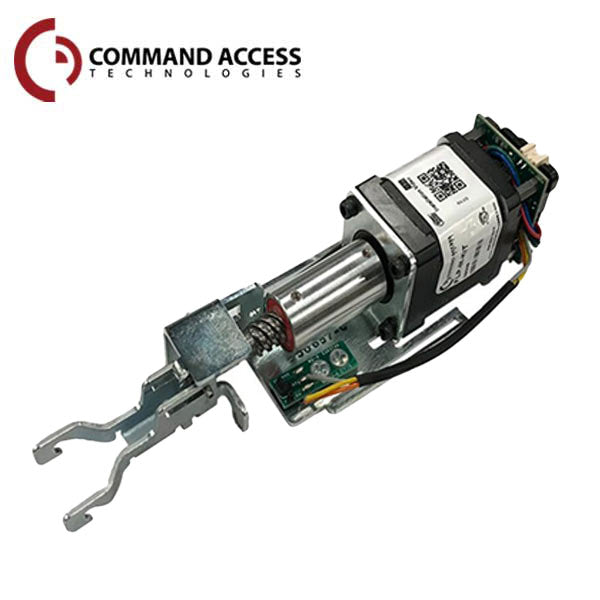

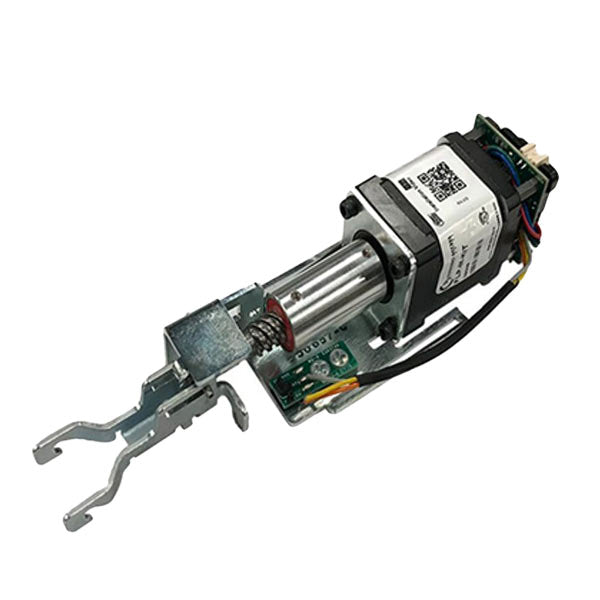

Command Access - Electrified Latch Retraction Kit - For Falcon 24 / 25 series - 2/18 Gauge - 24-28 VDC
In Stock
SKU:
CAT-MLRK1-FAL25
NSID:
22067
- $365.98
-
$439.18 - $365.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Command Access MLRK1-FAL25 is a cost-effective and straightforward way to upgrade your Falcon 24/25 series device to motor-driven latch retraction in the field. MLRK1-FAL25 can convert a mechanical Falcon 24/25 series device to an electrified latch pullback device. Our easy-to-install motor-driven kit installs in a matter of seconds with no drilling or screws required, a true “drop-in” kit! PTS allows for an easy post-installation adjustment of the latch/latches. A built-in REX switch is standard on all units! Last but not least, features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!
Features:
- MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
- “PTS”: 5 second electronic adjustment for easy post installation adjustment
- Electric dogging rated for continuous duty
- Auto re-engage if push pad is pulled from dogged position - Low Current Draw - Field switchable to “High Torque” mode
- Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
- 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead.
Specifications:
| Function: | Converts a mechanical Falcon 24/25 series device to an electrified latch pullback device. |
| Voltage Range: | 24-28 VDC |
| System Protection: | Unit shuts down when voltage exceeds 28VDC |
| Standard - Average Current Peak: | 900mA |
| Standard - Average Current Hold: | 215mA |
| High Torque - Average Current Peak: | 2A |
| High Torque - Average Current Hold: | 250mA |
| PTS adjustment: | approx. 1/4” |
| Wire Run: | 300’ with 18ga wire |
| Device Cutdown Details: | 36” - 2” / 48” - 8” |
| Certifications: | UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
