Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC

Command Access - Electrified Latch Retraction Kit - For Jackson 1285/1295 & Kawneer 1686/1786 series - 2/18 Gauge - 24-28 VDC

$304.45 $325.35
Available: In Stock
Wishlist
  • Product SKU: CAT-MLRK1-JAC12
  • CAT-MLRK1-JAC12

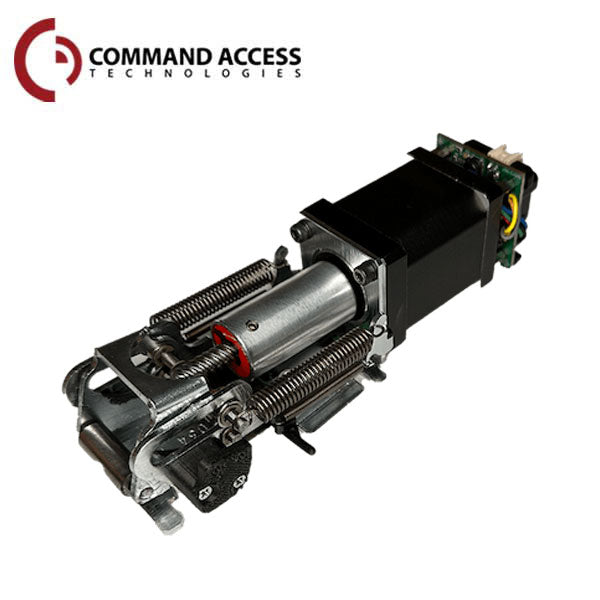

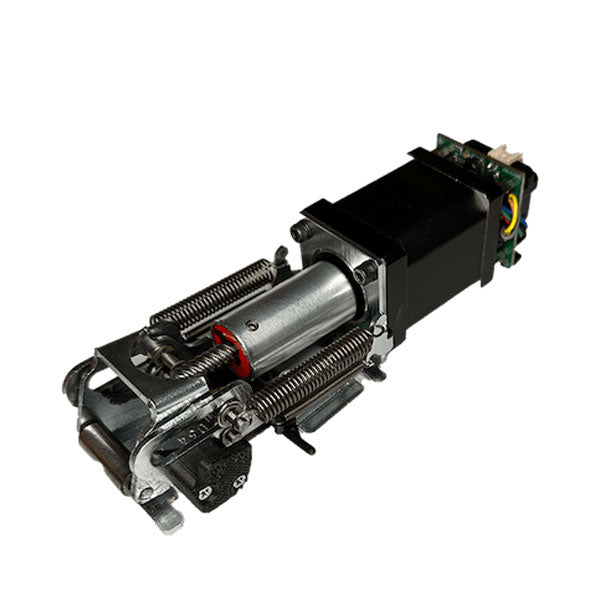

    The Command Access MLRK1-JAC12 is a cost-effective and straightforward way to upgrade and convert your Jackson 1285/1295, Kawneer 16/17 and PD16 series device to an electrified motor-driven latch pullback exit device in the field. The next generation electromechanical drive offers superior performance to its predecessor. It utilizes a patent pending custom ball screw assembly and CAT designed custom stepper motor to provide remarkably efficient and reliable results. Since our kit retracts the push pad, the device can be electrically dogged allowing the device to remain in a push/pull state, for as long as is desired. Patent Pending Push to Start (PTS)Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, features an updated MM4 module with 2 different torque settings from energy conscious to high torque to get the tough jobs done!

    Features:

    • MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
    • “PTS”: 5 second electronic adjustment for easy post installation adjustment
    • Electric dogging rated for continuous duty
      - Auto re-engage if push pad is pulled from dogged position
    • Low Current Draw - Field switchable to “High Torque” mode
    • Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
    • 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead.

    $304.45

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Function:  Converts a mechanical Jackson 1285/1295 & Kawneer 1686/1786 series device to an electrified latch pullback device.
Voltage Range: 24-28 VDC
System Protection: Unit shuts down when voltage exceeds 28VDC
Standard - Average Current Peak: 1.3 A
Standard - Average Current Hold: 170mA
High Torque - Average Current Peak: 2A
High Torque - Average Current Hold: 250mA
PTS adjustment: approx. 1/4”
Wire Run: 300’ with 18ga wire
Device Cutdown Details: 36” - 3” / 48” - 15”
Certifications: UL Listed 3-hour fire rating
Warranty: 3-Year Manufacturer Warranty





Downloads:

CAT-MLRK1-JAC12

The Command Access MLRK1-JAC12 is a cost-effective and straightforward way to upgrade and convert your Jackson 1285/1295, Kawneer 16/17 and PD16 series device to an electrified motor-driven latch pullback exit device in the field. The next generation electromechanical drive offers superior performance to its predecessor. It utilizes a patent pending custom ball screw assembly and CAT designed custom stepper motor to provide remarkably efficient and reliable results. Since our kit retracts the push pad, the device can be electrically dogged allowing the device to remain in a push/pull state, for as long as is desired. Patent Pending Push to Start (PTS)Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, features an updated MM4 module with 2 different torque settings from energy conscious to high torque to get the tough jobs done!

Features:

  • MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
  • “PTS”: 5 second electronic adjustment for easy post installation adjustment
  • Electric dogging rated for continuous duty
    - Auto re-engage if push pad is pulled from dogged position
  • Low Current Draw - Field switchable to “High Torque” mode
  • Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
  • 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead.

Specifications:

Function:  Converts a mechanical Jackson 1285/1295 & Kawneer 1686/1786 series device to an electrified latch pullback device.
Voltage Range: 24-28 VDC
System Protection: Unit shuts down when voltage exceeds 28VDC
Standard - Average Current Peak: 1.3 A
Standard - Average Current Hold: 170mA
High Torque - Average Current Peak: 2A
High Torque - Average Current Hold: 250mA
PTS adjustment: approx. 1/4”
Wire Run: 300’ with 18ga wire
Device Cutdown Details: 36” - 3” / 48” - 15”
Certifications: UL Listed 3-hour fire rating
Warranty: 3-Year Manufacturer Warranty





Downloads:

Compatible With
