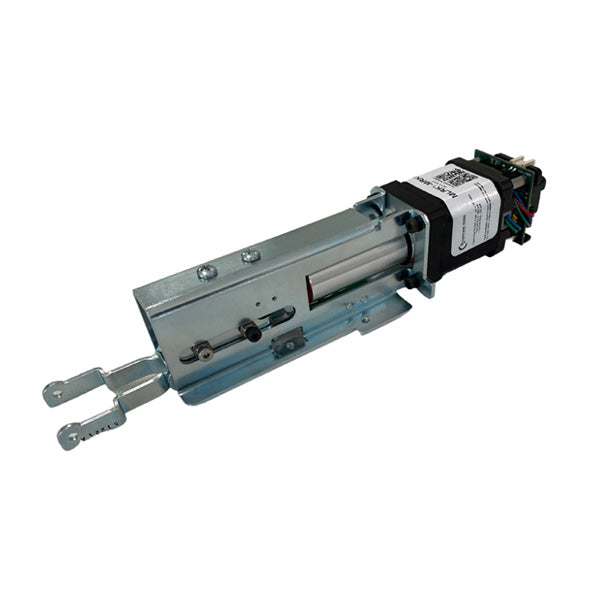

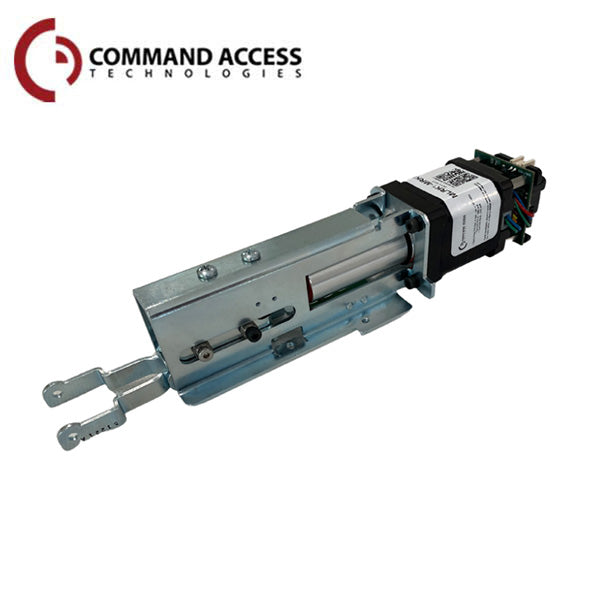

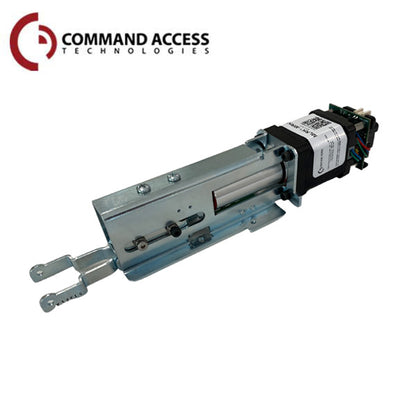

Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit
Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit
Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit
Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit
Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit

Command Access - Electrified Latch Retraction Kit - For Marks M8800 Series Exit Device - 18 Gauge Wire - 24VDC +/- 10% - With Request To Exit

$362.95 $435.54
Availability: In Stock
  • Product SKU: CAT-MLRK1-MRK8-REX
  • NSID: 52063

  •  CAT-MLRK1-MRK8-REX

    The CAT-MLRK1-MRK8-REX is a cost-effective and straightforward way to upgrade your Marks M8800 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

    Features:

    • MM4S Smart Module: On board diagnostics with audible feedback for adjustment
      and power issues
    • “PTS”: 5 second electronic adjustment for easy post installation adjustment
    • Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
    • Low Current Draw - Field switchable to “High Torque” mode
    • Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
    • 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
    • Request-to-exit kit
    • 3-year “no hassle” warranty
    •


    $362.95
    Please Note: This product has a lead time
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Voltage Range
 24VDC +/- 10%
System Protection unit shutdown when
voltage exceeds 28VDC
Standard Average Current Peak: 900 mA,
Average Current Hold: 215mA
High Torque Average Current Peak: 2A,
Average Current Hold: 250mA
PTS Adjustment approx. 1/4”
Wire Run 300’ with 18ga wire
Weight 2 Lbs



Downloads:

 CAT-MLRK1-MRK8-REX

The CAT-MLRK1-MRK8-REX is a cost-effective and straightforward way to upgrade your Marks M8800 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty

Features:

  • MM4S Smart Module: On board diagnostics with audible feedback for adjustment
    and power issues
  • “PTS”: 5 second electronic adjustment for easy post installation adjustment
  • Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
  • Low Current Draw - Field switchable to “High Torque” mode
  • Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
  • 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead
  • Request-to-exit kit
  • 3-year “no hassle” warranty
  •

Specifications:

Voltage Range
 24VDC +/- 10%
System Protection unit shutdown when
voltage exceeds 28VDC
Standard Average Current Peak: 900 mA,
Average Current Hold: 215mA
High Torque Average Current Peak: 2A,
Average Current Hold: 250mA
PTS Adjustment approx. 1/4”
Wire Run 300’ with 18ga wire
Weight 2 Lbs
